Datasheet AD8628, AD8629, AD8630 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier |
| Pages / Page | 24 / 6 — AD8628/. AD8629/. AD8630. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. … |
| Revision | L |
| File Format / Size | PDF / 338 Kb |
| Document Language | English |

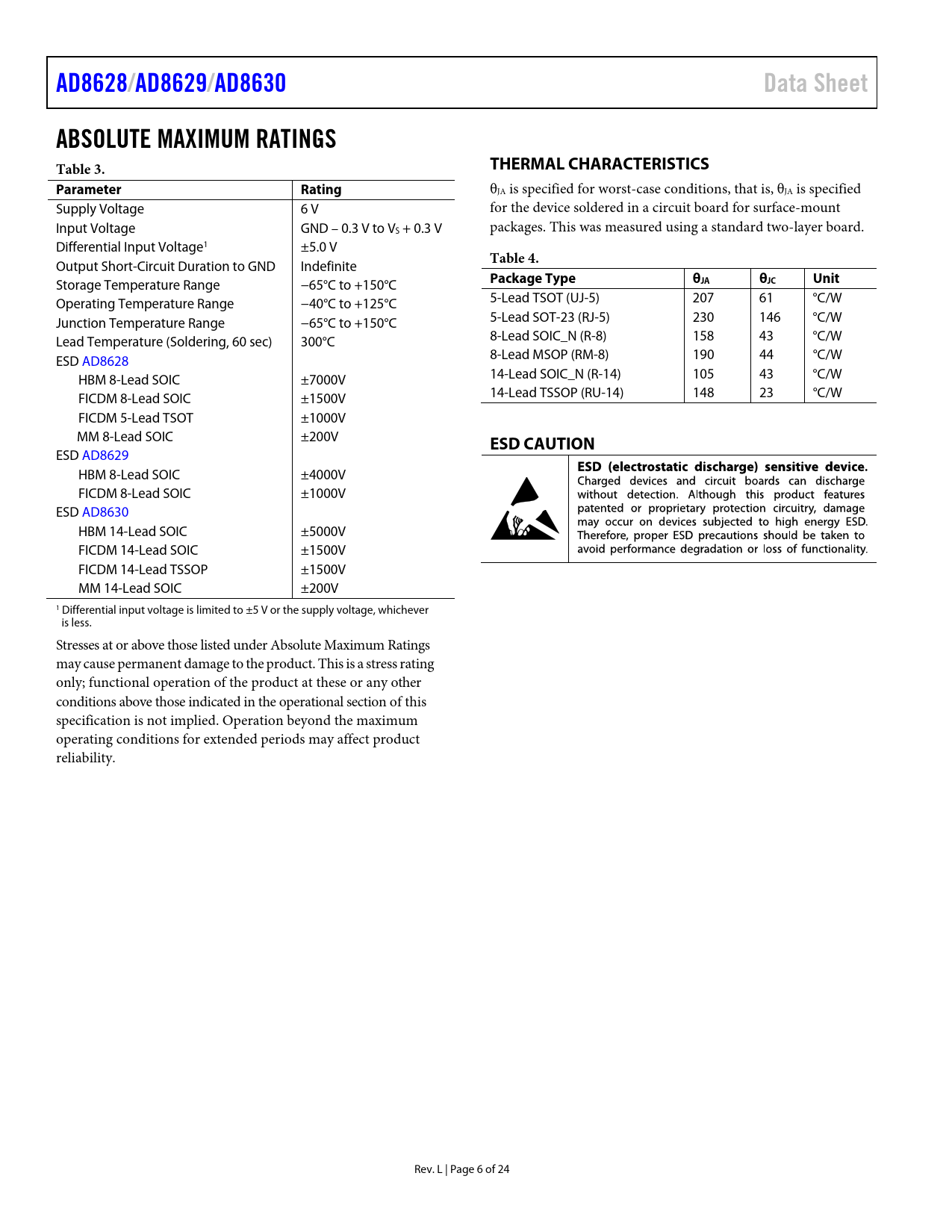

AD8628/. AD8629/. AD8630. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL CHARACTERISTICS. Parameter Rating. Table 4
Model Line for this Datasheet
- AD8628ARTZ-R2 AD8628ARTZ-REEL7 AD8628ARZ AD8628ARZ-REEL AD8628ARZ-REEL7 AD8628AUJZ-REEL AD8628AUJZ-REEL7 AD8628WARTZ-R7 AD8628WARTZ-RL AD8628WARZ-R7 AD8628WAUJZ-R7 AD8628WAUJZ-RL
Text Version of Document
AD8628/ AD8629/ AD8630 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL CHARACTERISTICS Parameter Rating
θJA is specified for worst-case conditions, that is, θJA is specified Supply Voltage 6 V for the device soldered in a circuit board for surface-mount Input Voltage GND – 0.3 V to VS + 0.3 V packages. This was measured using a standard two-layer board. Differential Input Voltage1 ±5.0 V
Table 4.
Output Short-Circuit Duration to GND Indefinite
Package Type θ
Storage Temperature Range −65°C to +150°C
JA θJC Unit
Operating Temperature Range −40°C to +125°C 5-Lead TSOT (UJ-5) 207 61 °C/W Junction Temperature Range −65°C to +150°C 5-Lead SOT-23 (RJ-5) 230 146 °C/W Lead Temperature (Soldering, 60 sec) 300°C 8-Lead SOIC_N (R-8) 158 43 °C/W ESD AD8628 8-Lead MSOP (RM-8) 190 44 °C/W HBM 8-Lead SOIC ±7000V 14-Lead SOIC_N (R-14) 105 43 °C/W FICDM 8-Lead SOIC ±1500V 14-Lead TSSOP (RU-14) 148 23 °C/W FICDM 5-Lead TSOT ±1000V MM 8-Lead SOIC ±200V
