Datasheet HMC409LP4E (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | GaAs InGaP HBT 1 WATT POWER AMPLIFIER, 3.3 - 3.8 GHz |
| Pages / Page | 8 / 7 — HMC409LP4E. GaAs InGaP HBT 1 WATT. POWER AMPLIFIER, 3.3 - 3.8 GHz. Pin … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
HMC409LP4E. GaAs InGaP HBT 1 WATT. POWER AMPLIFIER, 3.3 - 3.8 GHz. Pin Descriptions
Model Line for this Datasheet
Text Version of Document
HMC409LP4E
v04.1217
GaAs InGaP HBT 1 WATT POWER AMPLIFIER, 3.3 - 3.8 GHz Pin Descriptions

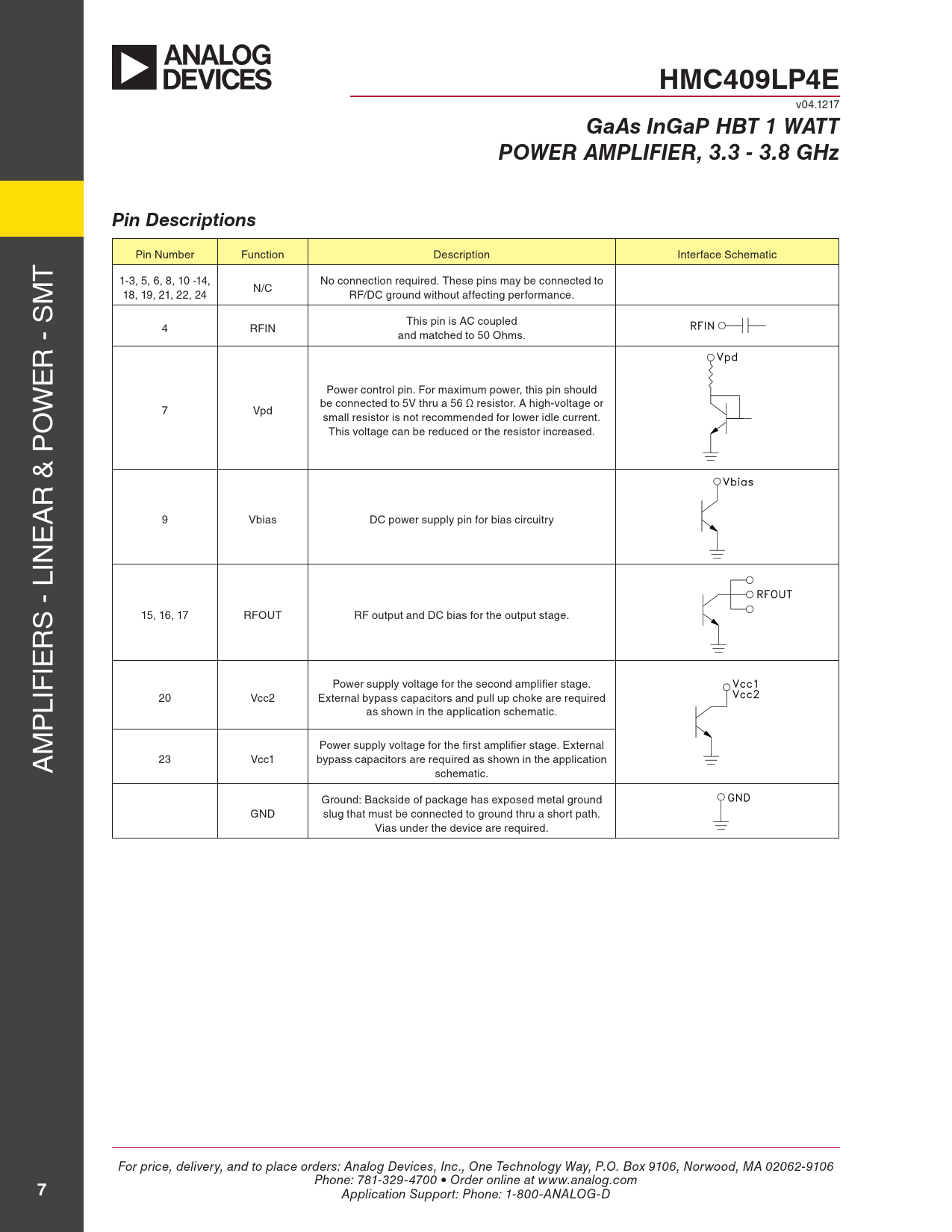

pin number function Description interface schematic T m 1-3, 5, 6, 8, 10 -14, no connection required. These pins may be connected to n/C 18, 19, 21, 22, 24 rf/DC ground without affecting performance. s This pin is AC coupled 4 rfin and matched to 50 ohms. r - e w power control pin. for maximum power, this pin should be connected to 5V thru a 56 Ω resistor. A high-voltage or o 7 Vpd small resistor is not recommended for lower idle current. p This voltage can be reduced or the resistor increased. r & A e 9 Vbias DC power supply pin for bias circuitry lin s - 15, 16, 17 rfoUT rf output and DC bias for the output stage. r ie power supply voltage for the second amplifier stage. lif 20 Vcc2 external bypass capacitors and pull up choke are required p as shown in the application schematic. m power supply voltage for the first amplifier stage. external A 23 Vcc1 bypass capacitors are required as shown in the application schematic. Ground: Backside of package has exposed metal ground GnD slug that must be connected to ground thru a short path. Vias under the device are required. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
