| Description | 20 Ampere Low-Side Ultrafast RF MOSFET Driver |
| Pages / Page | 7 / 3 — DEIC420. Lead Description - DEIC420. SYMBOL FUNCTION. DESCRIPTION. Note 1: |
| File Format / Size | PDF / 262 Kb |
| Document Language | English |
DEIC420. Lead Description - DEIC420. SYMBOL FUNCTION. DESCRIPTION. Note 1:
Model Line for this Datasheet
Text Version of Document
DEIC420 Lead Description - DEIC420 SYMBOL FUNCTION DESCRIPTION
Positive power-supply voltage input. These leads provide power to VCC Supply Voltage the entire chip. The range for this voltage is from 8V to 30V. IN Input Input signal-TTL or CMOS compatible. Driver Output. For application purposes, this lead is connected, OUT Output directly to the Gate of a MOSFET The system ground leads. Internally connected to all circuitry, these leads provide ground reference for the entire chip. These leads GND Power Ground should be connected to a low noise analog ground plane for optimum performance.
Note 1:
Operating the device beyond parameters with listed “absolute maximum ratings” may cause permanent damage to the device. Typical values indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.

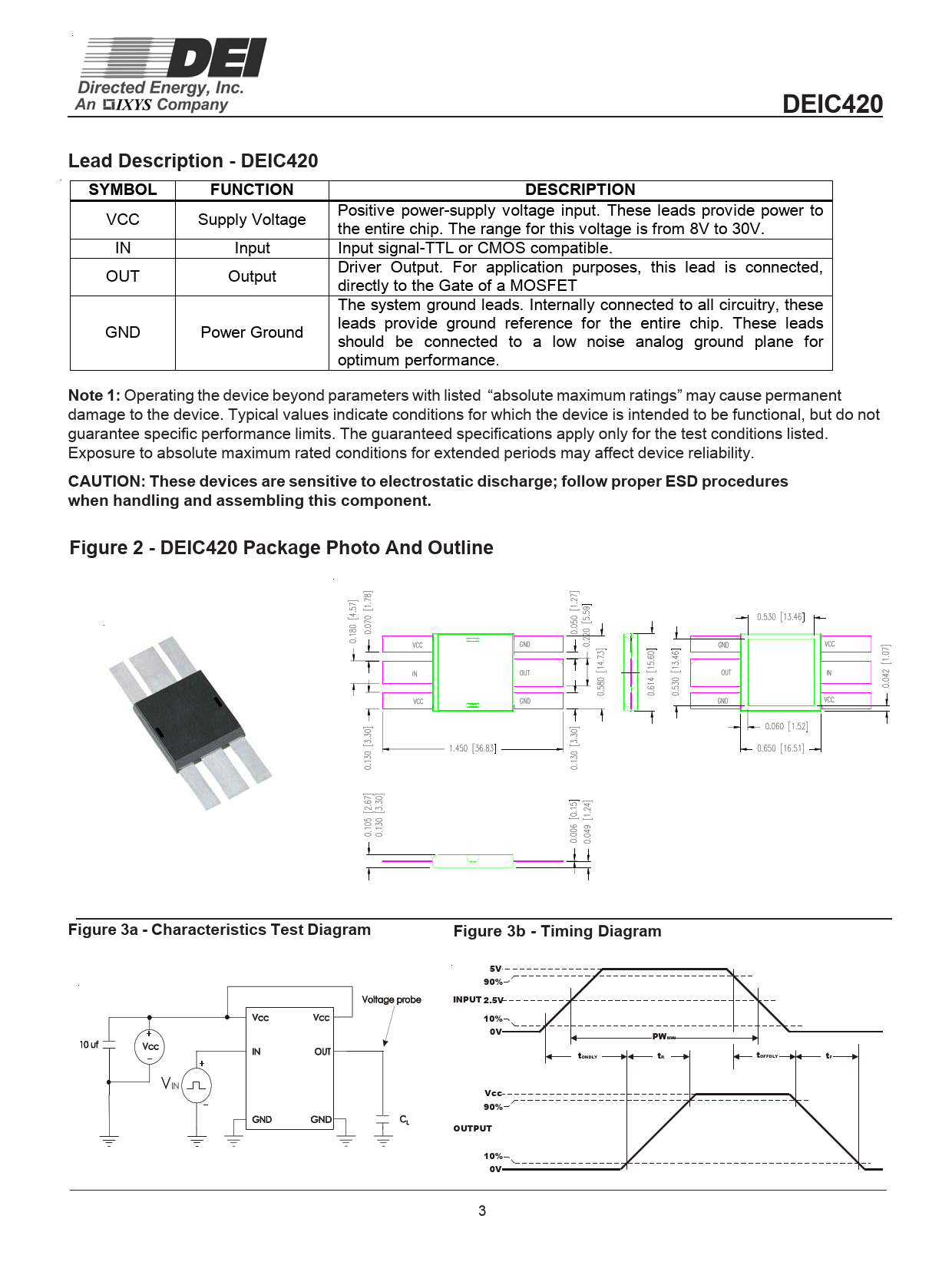

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD procedures when handling and assembling this component. Figure 2 - DEIC420 Package Photo And Outline Figure 3a - Characteristics Test Diagram Figure 3b - Timing Diagram
5V 90% INPUT 2.5V 10% 0V PWMIN tONDLY tR tOFFDLY tF VIN Vcc 90% OUTPUT 10% 0V 3
Positive power-supply voltage input. These leads provide power to VCC Supply Voltage the entire chip. The range for this voltage is from 8V to 30V. IN Input Input signal-TTL or CMOS compatible. Driver Output. For application purposes, this lead is connected, OUT Output directly to the Gate of a MOSFET The system ground leads. Internally connected to all circuitry, these leads provide ground reference for the entire chip. These leads GND Power Ground should be connected to a low noise analog ground plane for optimum performance.
Note 1:
Operating the device beyond parameters with listed “absolute maximum ratings” may cause permanent damage to the device. Typical values indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD procedures when handling and assembling this component. Figure 2 - DEIC420 Package Photo And Outline Figure 3a - Characteristics Test Diagram Figure 3b - Timing Diagram
5V 90% INPUT 2.5V 10% 0V PWMIN tONDLY tR tOFFDLY tF VIN Vcc 90% OUTPUT 10% 0V 3
