Datasheet ADG5408-EP, ADG5409-EP (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, 4-/8-Channel Multiplexers |
| Pages / Page | 18 / 6 — ADG5408-EP/ADG5409-EP. Enhanced Product. Parameter. 25°C. −40°C to +85°C. … |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |
ADG5408-EP/ADG5409-EP. Enhanced Product. Parameter. 25°C. −40°C to +85°C. −55°C to +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16
ADG5408-EP/ADG5409-EP Enhanced Product Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments

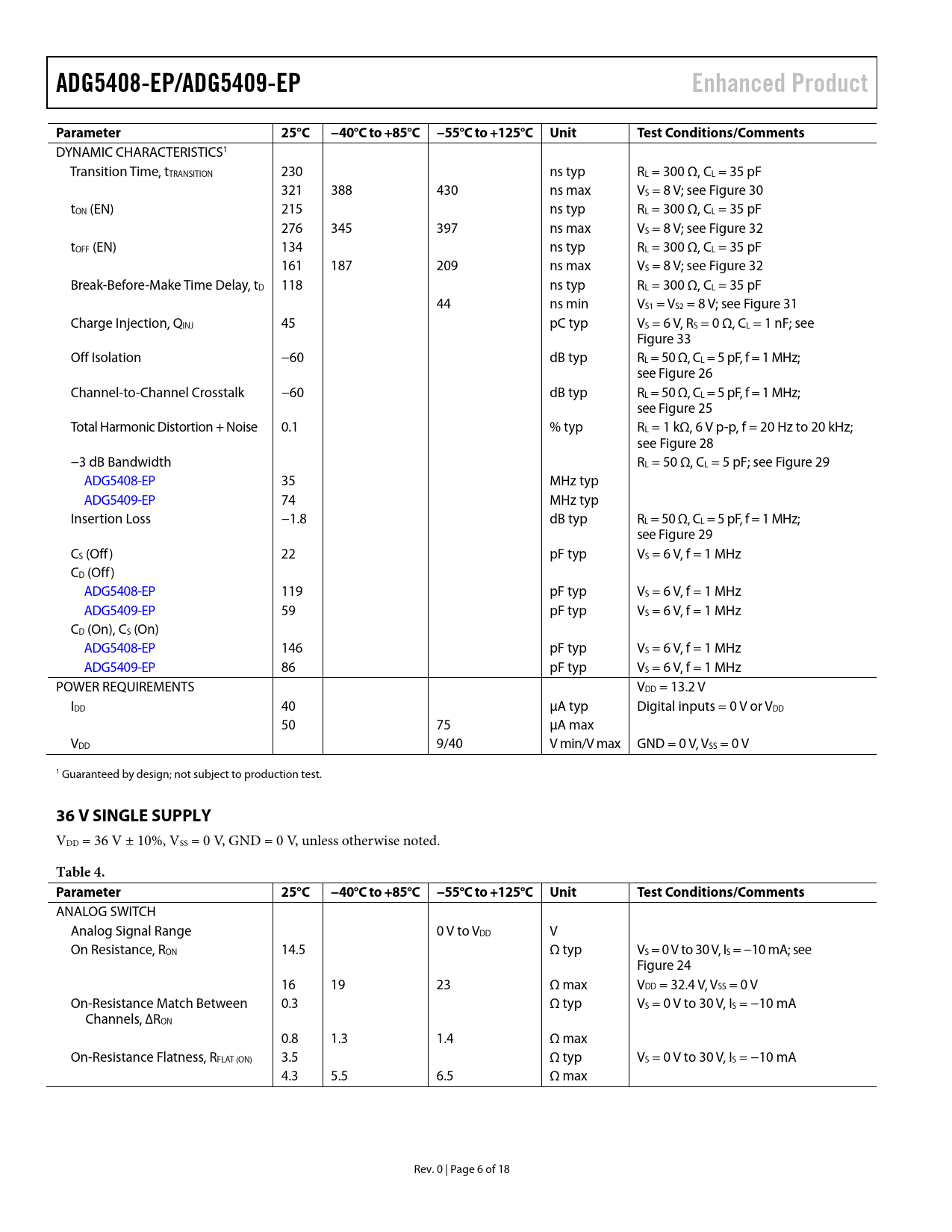

DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 230 ns typ RL = 300 Ω, CL = 35 pF 321 388 430 ns max VS = 8 V; see Figure 30 tON (EN) 215 ns typ RL = 300 Ω, CL = 35 pF 276 345 397 ns max VS = 8 V; see Figure 32 tOFF (EN) 134 ns typ RL = 300 Ω, CL = 35 pF 161 187 209 ns max VS = 8 V; see Figure 32 Break-Before-Make Time Delay, tD 118 ns typ RL = 300 Ω, CL = 35 pF 44 ns min VS1 = VS2 = 8 V; see Figure 31 Charge Injection, QINJ 45 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.1 % typ RL = 1 kΩ, 6 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 29 ADG5408-EP 35 MHz typ ADG5409-EP 74 MHz typ Insertion Loss −1.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off ) 22 pF typ VS = 6 V, f = 1 MHz CD (Off ) ADG5408-EP 119 pF typ VS = 6 V, f = 1 MHz ADG5409-EP 59 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) ADG5408-EP 146 pF typ VS = 6 V, f = 1 MHz ADG5409-EP 86 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD 40 μA typ Digital inputs = 0 V or VDD 50 75 μA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 14.5 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 24 16 19 23 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between 0.3 Ω typ VS = 0 V to 30 V, IS = −10 mA Channels, ∆RON 0.8 1.3 1.4 Ω max On-Resistance Flatness, RFLAT (ON) 3.5 Ω typ VS = 0 V to 30 V, IS = −10 mA 4.3 5.5 6.5 Ω max Rev. 0 | Page 6 of 18 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
