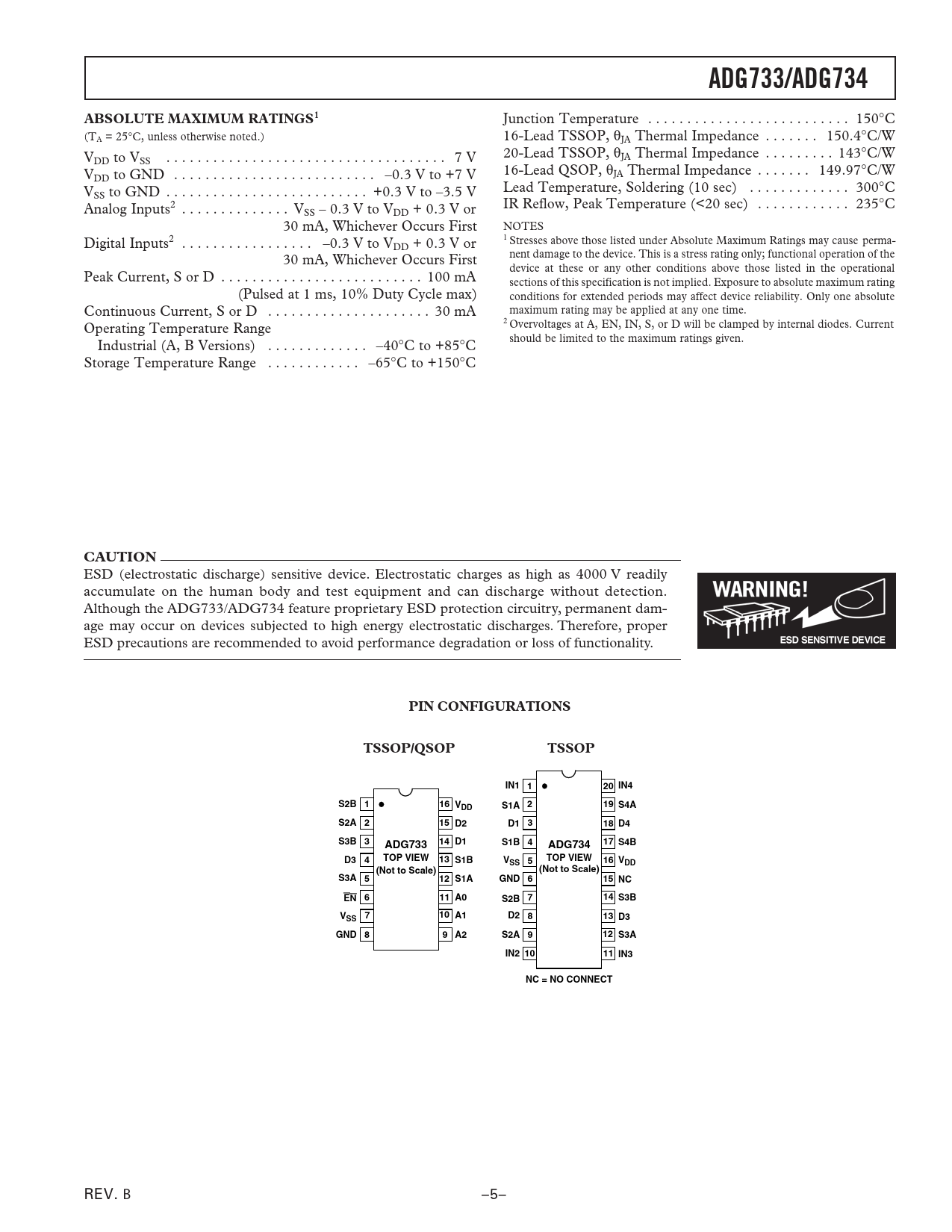

ADG733/ADG734 ABSOLUTE MAXIMUM RATINGS1
Junction Temperature . 150°C (T 16-Lead TSSOP, θ A = 25°C, unless otherwise noted.) JA Thermal Impedance . 150.4°C/W V 20-Lead TSSOP, θJA Thermal Impedance . 143°C/W DD to VSS . 7 V V 16-Lead QSOP, θJA Thermal Impedance . 149.97°C/W DD to GND . –0.3 V to +7 V V Lead Temperature, Soldering (10 sec) . 300°C SS to GND . +0.3 V to –3.5 V Analog Inputs2 . V IR Reflow, Peak Temperature (<20 sec) . 235°C SS – 0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First NOTES Digital Inputs2 . –0.3 V to V 1 Stresses above those listed under Absolute Maximum Ratings may cause perma- DD + 0.3 V or 30 mA, Whichever Occurs First nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational Peak Current, S or D . 100 mA sections of this specification is not implied. Exposure to absolute maximum rating (Pulsed at 1 ms, 10% Duty Cycle max) conditions for extended periods may affect device reliability. Only one absolute Continuous Current, S or D . 30 mA maximum rating may be applied at any one time. 2 Operating Temperature Range Overvoltages at A, EN, IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given. Industrial (A, B Versions) . –40°C to +85°C Storage Temperature Range . –65°C to +150°C
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the ADG733/ADG734 feature proprietary ESD protection circuitry, permanent dam- age may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
PIN CONFIGURATIONS TSSOP/QSOP TSSOP IN1 1 20 IN4 S2B 1 16 V 2 DD S1A 19 S4A S2A 2 15 D2 D1 3 18 D4 S3B 3 14 ADG733 D1 S1B 4 17 ADG734 S4B D3 4 TOP VIEW 13 S1B VSS 5 TOP VIEW 16 VDD (Not to Scale) (Not to Scale) S3A 5 12 S1A GND 6 15 NC EN 6 11 A0 S2B 7 14 S3B V 7 10 A1 SS D2 8 13 D3 GND 8 9 A2 S2A 9 12 S3A IN2 10 11 IN3 NC = NO CONNECT
REV. B –5– Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Specifications Absolute Maximum Ratings Pin Configurations Terminology Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide Revision History
