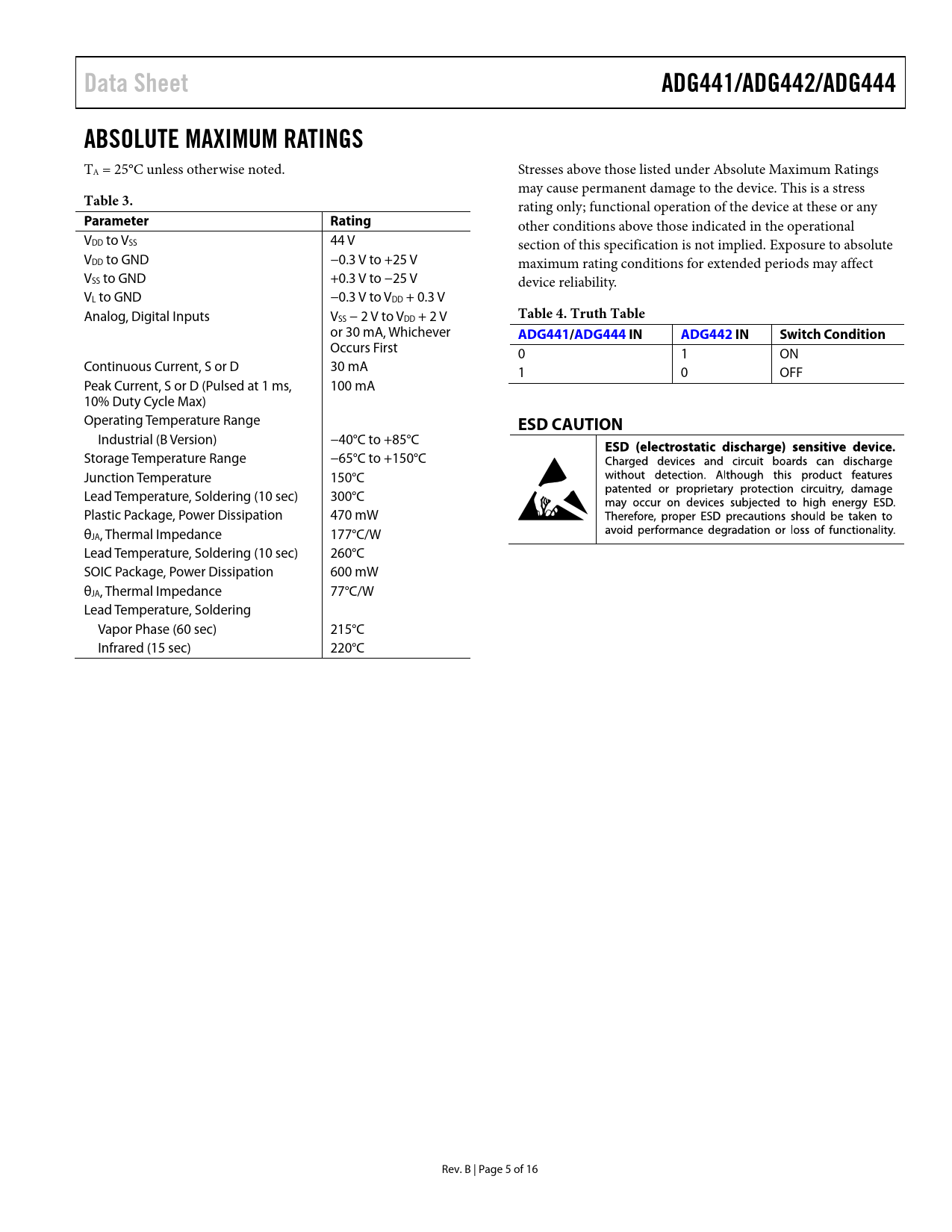

Data Sheet. ADG441/ADG442/ADG444. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. Table 4. Truth Table. ADG441/. ADG444 IN
Model Line for this Datasheet
Text Version of Document
Data Sheet ADG441/ADG442/ADG444 ABSOLUTE MAXIMUM RATINGS
TA = 25°C unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 3.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to VSS 44 V section of this specification is not implied. Exposure to absolute VDD to GND −0.3 V to +25 V maximum rating conditions for extended periods may affect VSS to GND +0.3 V to −25 V device reliability. VL to GND −0.3 V to VDD + 0.3 V Analog, Digital Inputs V
Table 4. Truth Table
SS − 2 V to VDD + 2 V or 30 mA, Whichever
ADG441/ ADG444 IN ADG442 IN Switch Condition
Occurs First 0 1 ON Continuous Current, S or D 30 mA 1 0 OFF Peak Current, S or D (Pulsed at 1 ms, 100 mA 10% Duty Cycle Max) Operating Temperature Range
ESD CAUTION
Industrial (B Version) −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Lead Temperature, Soldering (10 sec) 300°C Plastic Package, Power Dissipation 470 mW θ JA, Thermal Impedance 177°C/W Lead Temperature, Soldering (10 sec) 260°C SOIC Package, Power Dissipation 600 mW θJA, Thermal Impedance 77°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C Rev. B | Page 5 of 16 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Outline Dimensions Ordering Guide
