Datasheet ADG441, ADG442, ADG444 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | LC2MOS Quad SPST Switches |
| Pages / Page | 16 / 4 — ADG441/ADG442/ADG444. Data Sheet. SINGLE SUPPLY1. Table 2. B Version. … |
| Revision | B |
| File Format / Size | PDF / 315 Kb |
| Document Language | English |

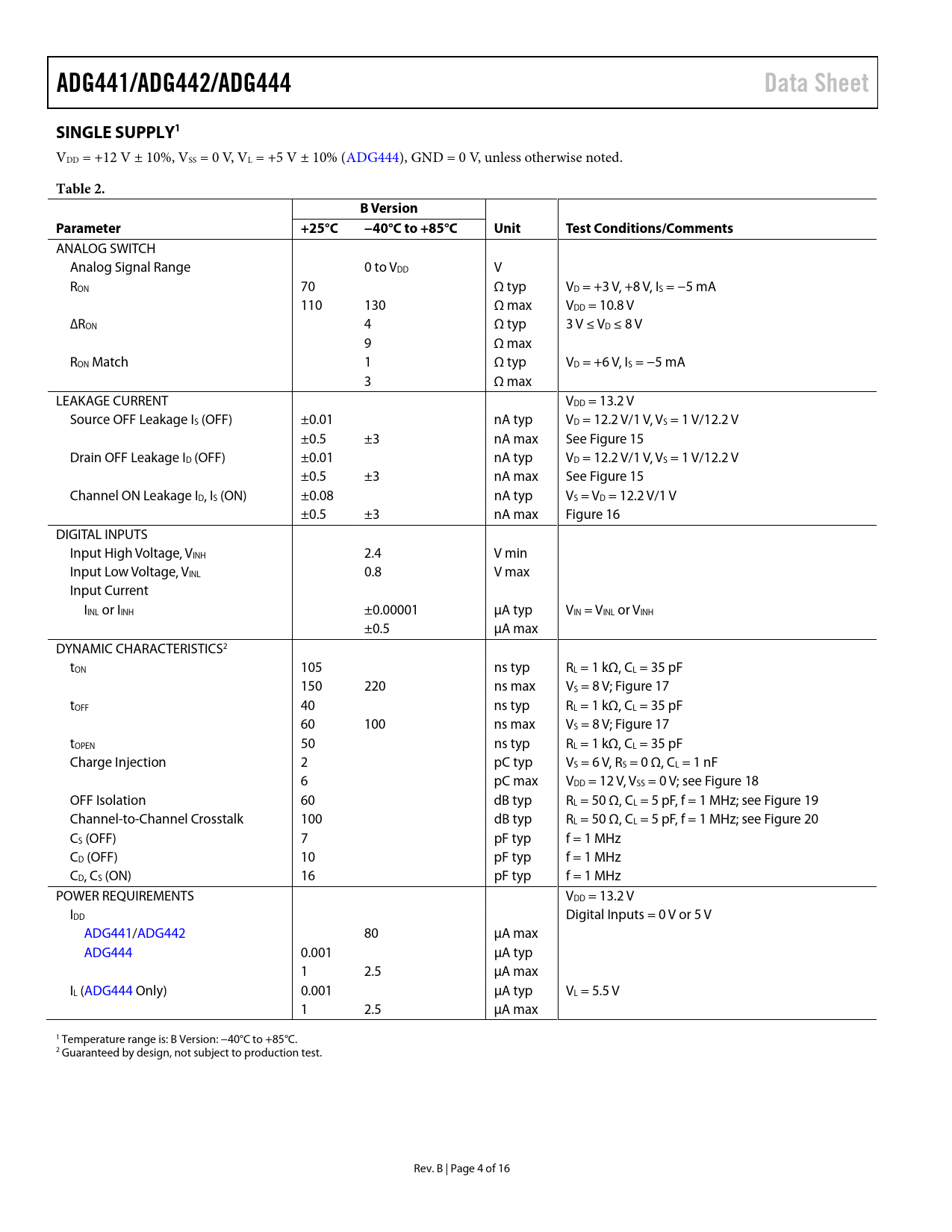

ADG441/ADG442/ADG444. Data Sheet. SINGLE SUPPLY1. Table 2. B Version. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 10 link to page 10
ADG441/ADG442/ADG444 Data Sheet SINGLE SUPPLY1
VDD = +12 V ± 10%, VSS = 0 V, VL = +5 V ± 10% (ADG444), GND = 0 V, unless otherwise noted.
Table 2. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 70 Ω typ VD = +3 V, +8 V, IS = −5 mA 110 130 Ω max VDD = 10.8 V ∆RON 4 Ω typ 3 V ≤ VD ≤ 8 V 9 Ω max RON Match 1 Ω typ VD = +6 V, IS = −5 mA 3 Ω max LEAKAGE CURRENT VDD = 13.2 V Source OFF Leakage IS (OFF) ±0.01 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V ±0.5 ±3 nA max See Figure 15 Drain OFF Leakage ID (OFF) ±0.01 nA typ VD = 12.2 V/1 V, VS = 1 V/12.2 V ±0.5 ±3 nA max See Figure 15 Channel ON Leakage ID, IS (ON) ±0.08 nA typ VS = VD = 12.2 V/1 V ±0.5 ±3 nA max Figure 16 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±0.00001 µA typ VIN = VINL or VINH ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 105 ns typ RL = 1 kΩ, CL = 35 pF 150 220 ns max VS = 8 V; Figure 17 tOFF 40 ns typ RL = 1 kΩ, CL = 35 pF 60 100 ns max VS = 8 V; Figure 17 tOPEN 50 ns typ RL = 1 kΩ, CL = 35 pF Charge Injection 2 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF 6 pC max VDD = 12 V, VSS = 0 V; see Figure 18 OFF Isolation 60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk 100 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 CS (OFF) 7 pF typ f = 1 MHz CD (OFF) 10 pF typ f = 1 MHz CD, CS (ON) 16 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V IDD Digital Inputs = 0 V or 5 V ADG441/ADG442 80 µA max ADG444 0.001 µA typ 1 2.5 µA max IL (ADG444 Only) 0.001 µA typ VL = 5.5 V 1 2.5 µA max 1 Temperature range is: B Version: −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 16 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Outline Dimensions Ordering Guide
