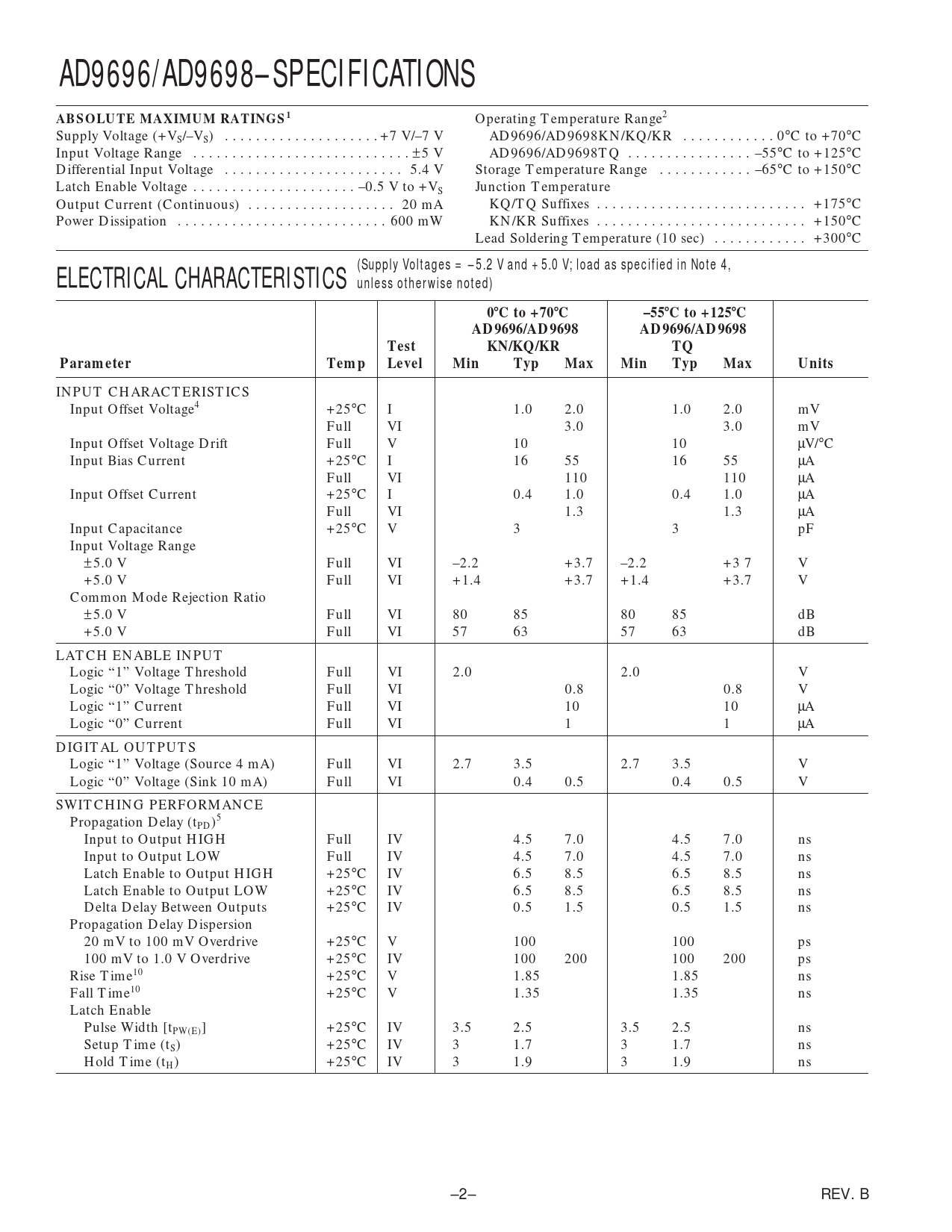

AD9696/AD9698–SPECIFICATIONS. ABSOLUTE MAXIMUM RATINGS1. (Supply Voltages = –5.2 V and +5.0 V; load as specified in Note 4,
Model Line for this Datasheet
Text Version of Document
AD9696/AD9698–SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS1
Operating Temperature Range2 Supply Voltage (+VS/–VS) . +7 V/–7 V AD9696/AD9698KN/KQ/KR . 0°C to +70°C Input Voltage Range . ± 5 V AD9696/AD9698TQ . –55°C to +125°C Differential Input Voltage . 5.4 V Storage Temperature Range . –65°C to +150°C Latch Enable Voltage . –0.5 V to +VS Junction Temperature Output Current (Continuous) . 20 mA KQ/TQ Suffixes . +175°C Power Dissipation . 600 mW KN/KR Suffixes . +150°C Lead Soldering Temperature (10 sec) . +300°C
(Supply Voltages = –5.2 V and +5.0 V; load as specified in Note 4, ELECTRICAL CHARACTERISTICS unless otherwise noted) 0
8
C to +70
8
C –55
8
C to +125
8
C AD9696/AD9698 AD9696/AD9698 Test KN/KQ/KR TQ Parameter Temp Level Min Typ Max Min Typ Max Units
INPUT CHARACTERISTICS Input Offset Voltage4 +25°C I 1.0 2.0 1.0 2.0 mV Full VI 3.0 3.0 mV Input Offset Voltage Drift Full V 10 10 µV/°C Input Bias Current +25°C I 16 55 16 55 µA Full VI 110 110 µA Input Offset Current +25°C I 0.4 1.0 0.4 1.0 µA Full VI 1.3 1.3 µA Input Capacitance +25°C V 3 3 pF Input Voltage Range ±5.0 V Full VI –2.2 +3.7 –2.2 +3 7 V +5.0 V Full VI +1.4 +3.7 +1.4 +3.7 V Common Mode Rejection Ratio ±5.0 V Full VI 80 85 80 85 dB +5.0 V Full VI 57 63 57 63 dB LATCH ENABLE INPUT Logic “1” Voltage Threshold Full VI 2.0 2.0 V Logic “0” Voltage Threshold Full VI 0.8 0.8 V Logic “1” Current Full VI 10 10 µA Logic “0” Current Full VI 1 1 µA DIGITAL OUTPUTS Logic “1” Voltage (Source 4 mA) Full VI 2.7 3.5 2.7 3.5 V Logic “0” Voltage (Sink 10 mA) Full VI 0.4 0.5 0.4 0.5 V SWITCHING PERFORMANCE Propagation Delay (tPD)5 Input to Output HIGH Full IV 4.5 7.0 4.5 7.0 ns Input to Output LOW Full IV 4.5 7.0 4.5 7.0 ns Latch Enable to Output HIGH +25°C IV 6.5 8.5 6.5 8.5 ns Latch Enable to Output LOW +25°C IV 6.5 8.5 6.5 8.5 ns Delta Delay Between Outputs +25°C IV 0.5 1.5 0.5 1.5 ns Propagation Delay Dispersion 20 mV to 100 mV Overdrive +25°C V 100 100 ps 100 mV to 1.0 V Overdrive +25°C IV 100 200 100 200 ps Rise Time10 +25°C V 1.85 1.85 ns Fall Time10 +25°C V 1.35 1.35 ns Latch Enable Pulse Width [tPW(E)] +25°C IV 3.5 2.5 3.5 2.5 ns Setup Time (tS) +25°C IV 3 1.7 3 1.7 ns Hold Time (tH) +25°C IV 3 1.9 3 1.9 ns –2– REV. B
