SFH610A, SFH6106. SWITCHING CHARACTERISTICS PARAMETER. TEST CONDITION. PART. SYMBOL. MIN. TYP. MAX. UNIT. Note
Model Line for this Datasheet
Text Version of Document
SFH610A, SFH6106
www.vishay.com Vishay Semiconductors

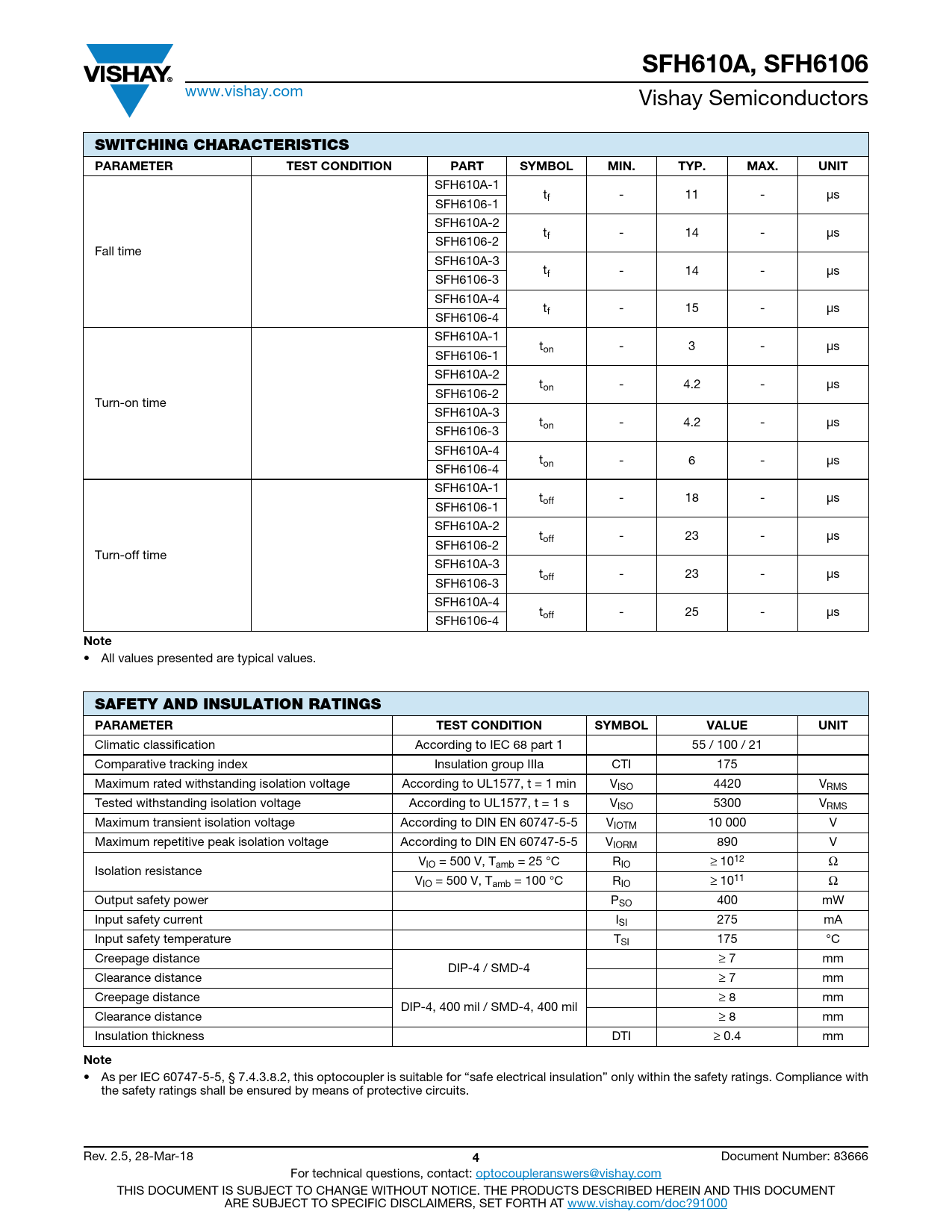

SWITCHING CHARACTERISTICS PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
SFH610A-1 tf - 11 - μs SFH6106-1 SFH610A-2 tf - 14 - μs SFH6106-2 Fall time SFH610A-3 tf - 14 - μs SFH6106-3 SFH610A-4 tf - 15 - μs SFH6106-4 SFH610A-1 ton - 3 - μs SFH6106-1 SFH610A-2 ton - 4.2 - μs SFH6106-2 Turn-on time SFH610A-3 ton - 4.2 - μs SFH6106-3 SFH610A-4 ton - 6 - μs SFH6106-4 SFH610A-1 toff - 18 - μs SFH6106-1 SFH610A-2 toff - 23 - μs SFH6106-2 Turn-off time SFH610A-3 toff - 23 - μs SFH6106-3 SFH610A-4 toff - 25 - μs SFH6106-4
Note
• All values presented are typical values.
SAFETY AND INSULATION RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Climatic classification According to IEC 68 part 1 55 / 100 / 21 Comparative tracking index Insulation group IIIa CTI 175 Maximum rated withstanding isolation voltage According to UL1577, t = 1 min VISO 4420 VRMS Tested withstanding isolation voltage According to UL1577, t = 1 s VISO 5300 VRMS Maximum transient isolation voltage According to DIN EN 60747-5-5 VIOTM 10 000 V Maximum repetitive peak isolation voltage According to DIN EN 60747-5-5 VIORM 890 V VIO = 500 V, Tamb = 25 °C RIO ≥ 1012 Ω Isolation resistance VIO = 500 V, Tamb = 100 °C RIO ≥ 1011 Ω Output safety power PSO 400 mW Input safety current ISI 275 mA Input safety temperature TSI 175 °C Creepage distance ≥ 7 mm DIP-4 / SMD-4 Clearance distance ≥ 7 mm Creepage distance ≥ 8 mm DIP-4, 400 mil / SMD-4, 400 mil Clearance distance ≥ 8 mm Insulation thickness DTI ≥ 0.4 mm
Note
• As per IEC 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of protective circuits. Rev. 2.5, 28-Mar-18
