Datasheet MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 (ON Semiconductor) - 10

ManufacturerON Semiconductor
DescriptionLow Voltage, Rail-to-Rail Operational Amplifiers
Pages / Page17 / 10 — MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204. ORDERING …
File Format / SizePDF / 521 Kb
Document LanguageEnglish

MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204. ORDERING INFORMATION. Operational. Device. Operating. Package

MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 ORDERING INFORMATION Operational Device Operating Package

Model Line for this Datasheet

Text Version of Document

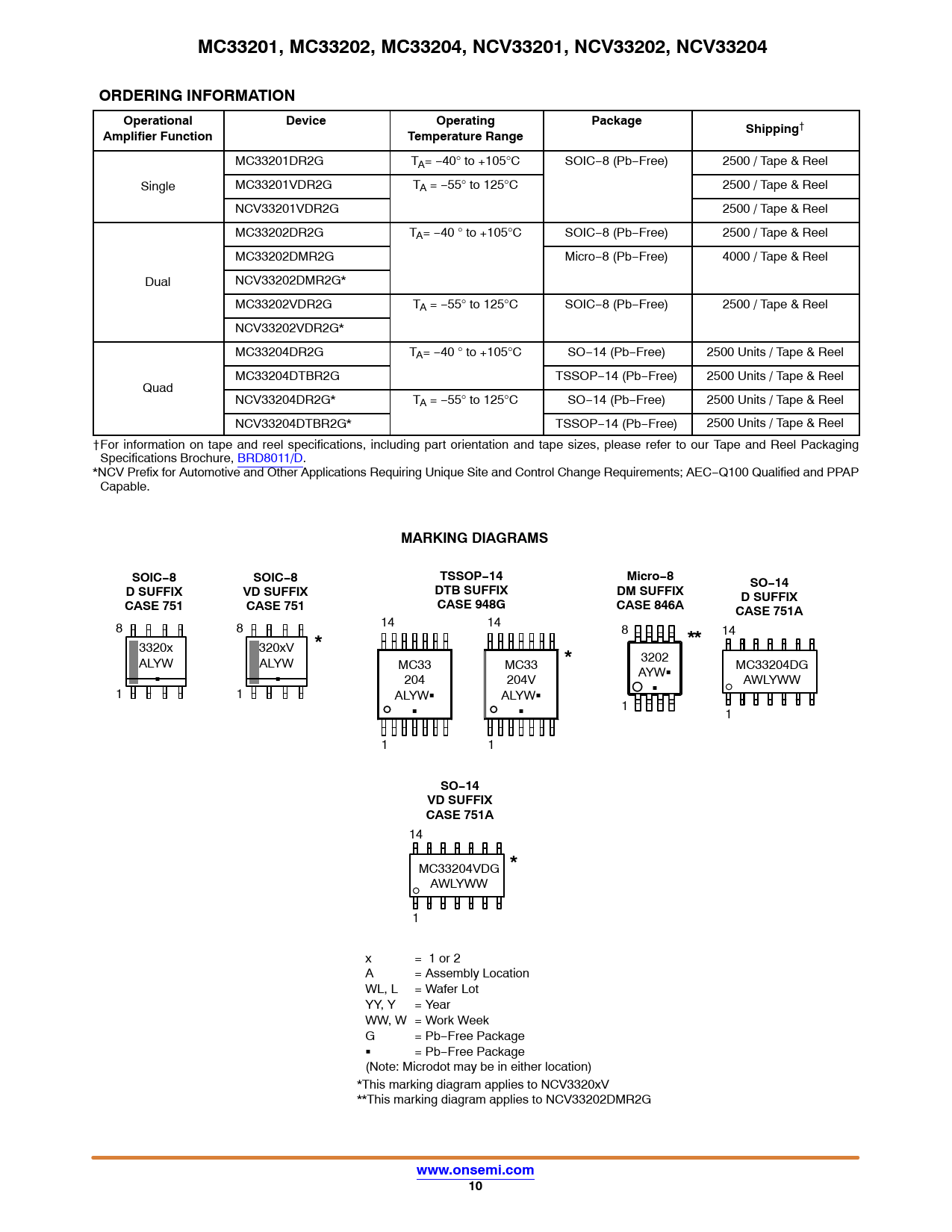

MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 ORDERING INFORMATION Operational Device Operating Package Amplifier Function Temperature Range Shipping
† MC33201DR2G TA= −40° to +105°C SOIC−8 (Pb−Free) 2500 / Tape & Reel Single MC33201VDR2G TA = −55° to 125°C 2500 / Tape & Reel NCV33201VDR2G 2500 / Tape & Reel MC33202DR2G TA= −40 ° to +105°C SOIC−8 (Pb−Free) 2500 / Tape & Reel MC33202DMR2G Micro−8 (Pb−Free) 4000 / Tape & Reel Dual NCV33202DMR2G* MC33202VDR2G TA = −55° to 125°C SOIC−8 (Pb−Free) 2500 / Tape & Reel NCV33202VDR2G* MC33204DR2G TA= −40 ° to +105°C SO−14 (Pb−Free) 2500 Units / Tape & Reel MC33204DTBR2G TSSOP−14 (Pb−Free) 2500 Units / Tape & Reel Quad NCV33204DR2G* TA = −55° to 125°C SO−14 (Pb−Free) 2500 Units / Tape & Reel NCV33204DTBR2G* TSSOP−14 (Pb−Free) 2500 Units / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
MARKING DIAGRAMS SOIC−8 SOIC−8 TSSOP−14 Micro−8 SO−14 D SUFFIX VD SUFFIX DTB SUFFIX DM SUFFIX D SUFFIX CASE 751 CASE 751 CASE 948G CASE 846A CASE 751A
14 8 8 14 8 14
**
3320x 320xV
*
ALYW ALYW 3202 MC33
*
MC33 MC33204DG G G 204 AYWG 204V AWLYWW 1 1 ALYWG G ALYWG G 1 G 1 1 1
SO−14 VD SUFFIX CASE 751A
14 MC33204VDG
*
AWLYWW 1 x = 1 or 2 A = Assembly Location WL, L = Wafer Lot YY, Y = Year WW, W = Work Week G = Pb−Free Package G = Pb−Free Package (Note: Microdot may be in either location) *This marking diagram applies to NCV3320xV **This marking diagram applies to NCV33202DMR2G
www.onsemi.com 10
