BIDNW30N60H3 Insulated Gate Bipolar Transistor (IGBT)
Model Line for this Datasheet
Text Version of Document

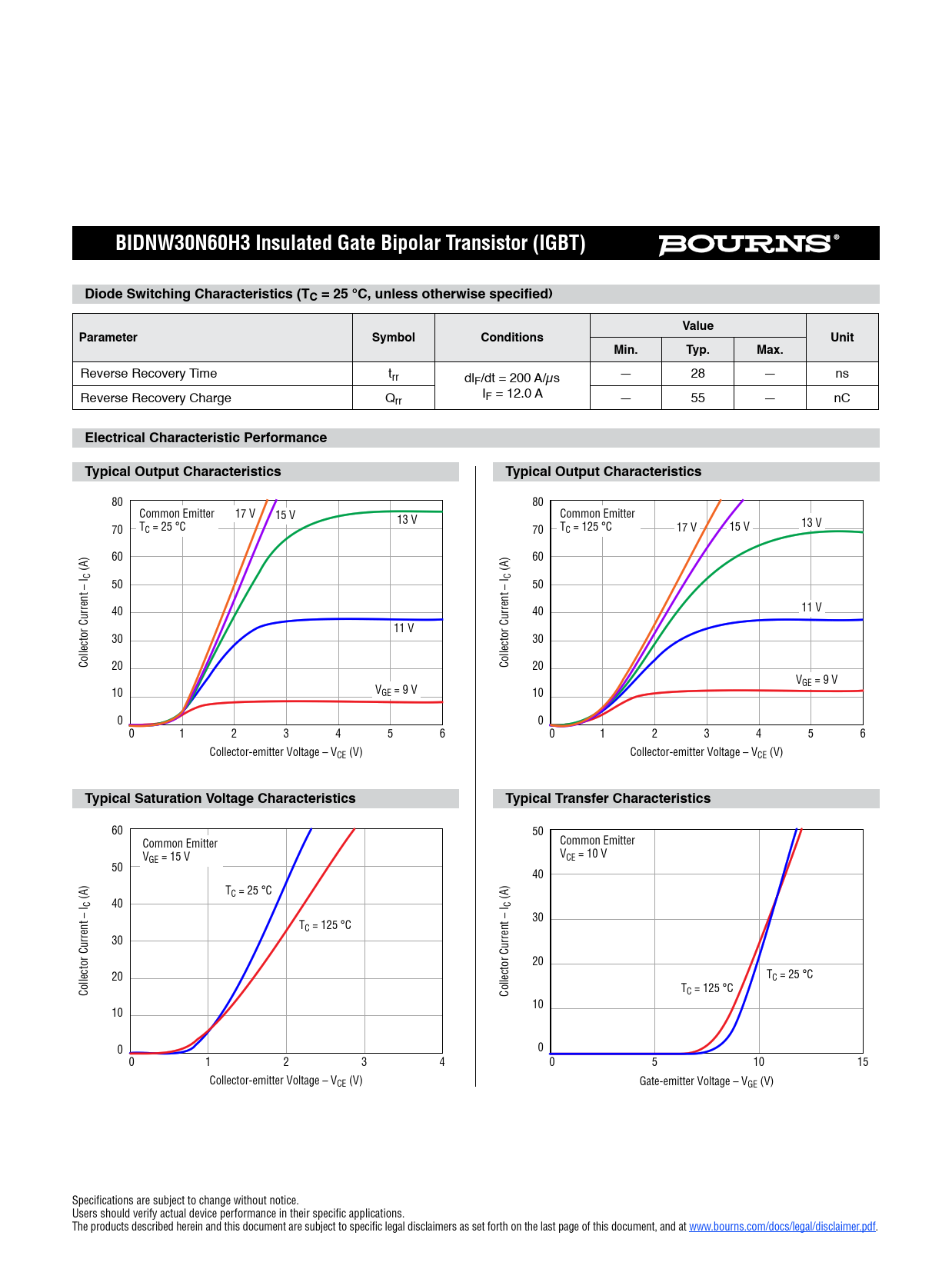

BIDNW30N60H3 Insulated Gate Bipolar Transistor (IGBT) Diode Switching Characteristics (TC = 25 °C, unless otherwise specified) Value Parameter Symbol Conditions Unit Min. Typ. Max.
Reverse Recovery Time trr dlF/dt = 200 A/µs — 28 — ns I Reverse Recovery Charge Q F = 12.0 A rr — 55 — nC
Electrical Characteristic Performance Typical Output Characteristics Typical Output Characteristics
80 80 Common Emitter 17 V 15 V 13 V Common Emitter 13 V 70 TC = 25 °C 70 TC = 125 °C 17 V 15 V 60 60 (A) (A) C C 50 50 40 40 11 V 11 V 30 30 Collector Current – I 20 Collector Current – I 20 VGE = 9 V 10 VGE = 9 V 10 0 0 0 1 2 3 4 5 6 0 1 2 3 4 5 6 Collector-emitter Voltage – VCE (V) Collector-emitter Voltage – VCE (V)
Typical Saturation Voltage Characteristics Typical Transfer Characteristics
60 50 Common Emitter Common Emitter V V GE = 15 V CE = 10 V 50 40 T (A) C = 25 °C (A) C 40 C 30 TC = 125 °C 30 20 20 TC = 25 °C Collector Current – I Collector Current – I TC = 125 °C 10 10 0 0 0 1 2 3 4 0 5 10 15 Collector-emitter Voltage – VCE (V) Gate-emitter Voltage – VGE (V) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
