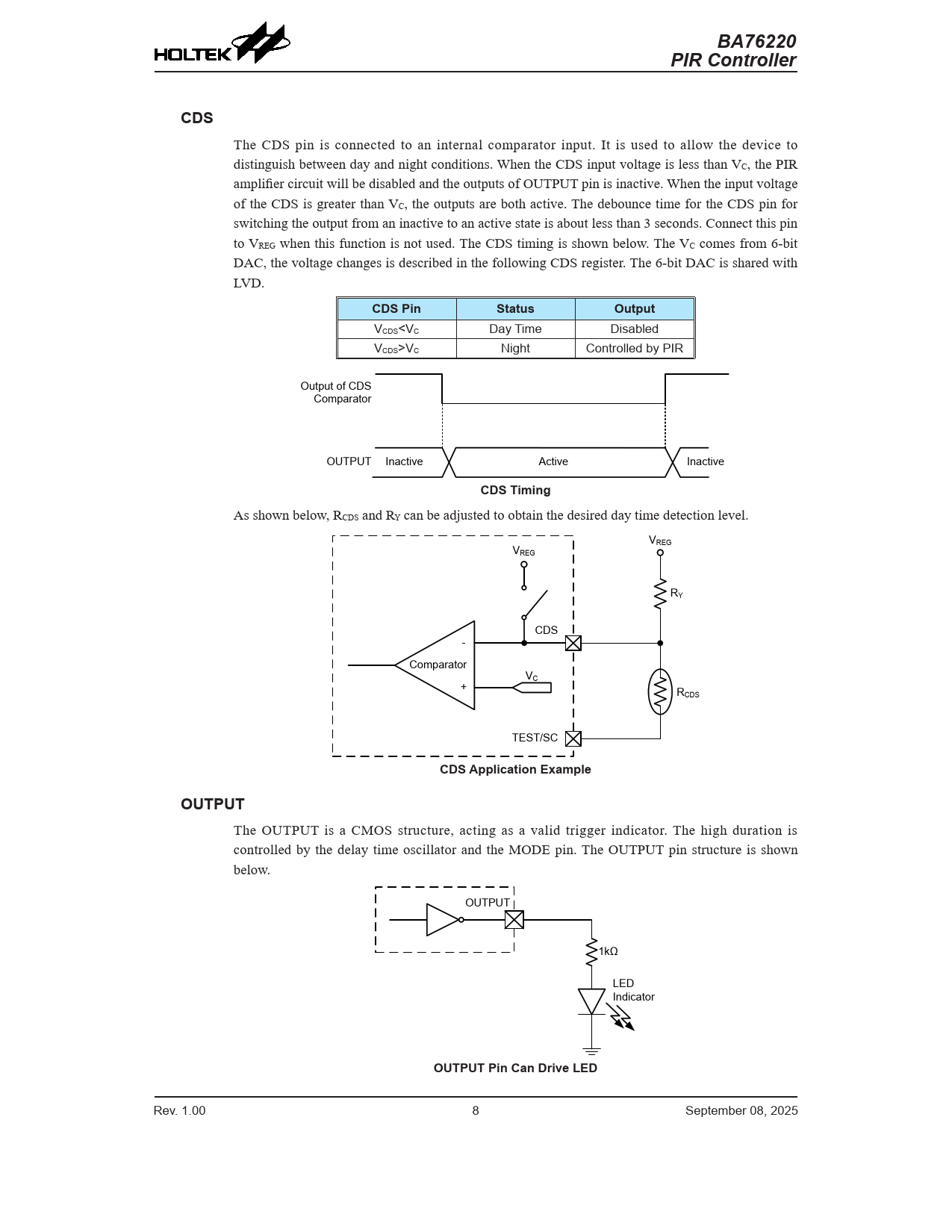

BA76220 PIR Controller CDS
The CDS pin is connected to an internal comparator input. It is used to allow the device to distinguish between day and night conditions. When the CDS input voltage is less than VC, the PIR amplifier circuit will be disabled and the outputs of OUTPUT pin is inactive. When the input voltage of the CDS is greater than VC, the outputs are both active. The debounce time for the CDS pin for switching the output from an inactive to an active state is about less than 3 seconds. Connect this pin to VREG when this function is not used. The CDS timing is shown below. The VC comes from 6-bit DAC, the voltage changes is described in the following CDS register. The 6-bit DAC is shared with LVD.
CDS Pin Status Output
VCDS<VC Day Time Disabled VCDS>VC Night Controlled by PIR Output of CDS Comparator OUTPUT Inactive Active Inactive
CDS Timing
As shown below, RCDS and RY can be adjusted to obtain the desired day time detection level. VREG VREG RY CDS - Comparator VC + RCDS TEST/SC
CDS Application Example OUTPUT
The OUTPUT is a CMOS structure, acting as a valid trigger indicator. The high duration is controlled by the delay time oscillator and the MODE pin. The OUTPUT pin structure is shown below. OUTPUT 1kΩ LED Indicator
OUTPUT Pin Can Drive LED
