| Manufacturer | Nexperia |
| Description | 20 V, P-channel Trench MOSFET |
| Pages / Page | 16 / 4 — Nexperia. PMV65XPEA. 20 V, P-channel Trench MOSFET. Fig. 1. Normalized … |
| Revision | 04201705 |
| File Format / Size | PDF / 722 Kb |
| Document Language | English |
Nexperia. PMV65XPEA. 20 V, P-channel Trench MOSFET. Fig. 1. Normalized total power dissipation as a
Model Line for this Datasheet
Text Version of Document
Nexperia PMV65XPEA 20 V, P-channel Trench MOSFET
017aaa123 120 017aaa124 120 Pder Ider (%) (%) 80 80 40 40 0 0 - 75 - 25 25 75 125 175 - 75 - 25 25 75 125 175 Tj (°C) Tj (°C)

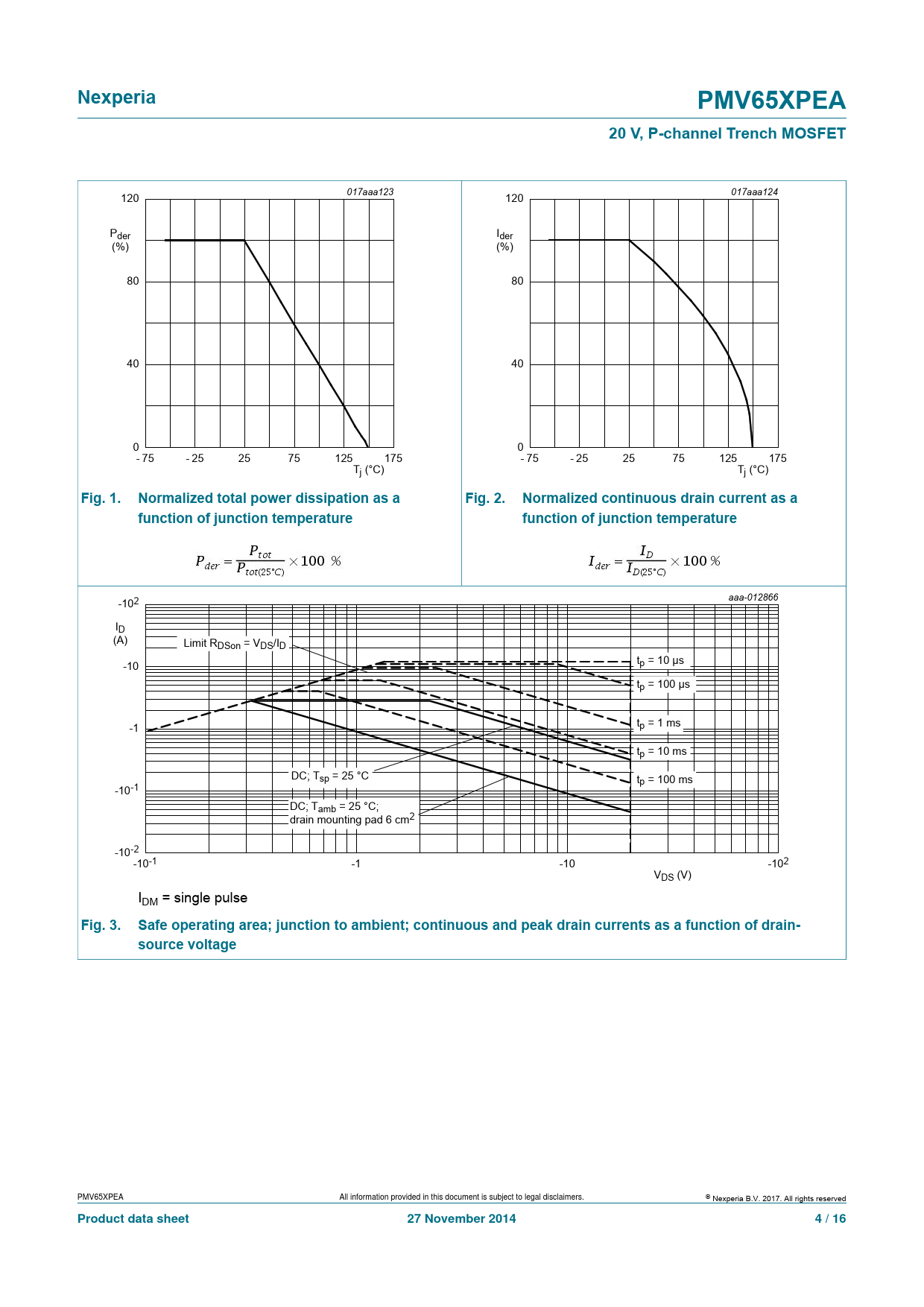

Fig. 1. Normalized total power dissipation as a Fig. 2. Normalized continuous drain current as a function of junction temperature function of junction temperature
aaa-012866 -102 ID (A) Limit RDSon = VDS/ID -10 tp = 10 µs tp = 100 µs -1 tp = 1 ms tp = 10 ms DC; Tsp = 25 °C tp = 100 ms -10-1 DC; Tamb = 25 °C; drain mounting pad 6 cm2 -10-2-10-1 -1 -102 -10 VDS (V) IDM = single pulse
Fig. 3. Safe operating area; junction to ambient; continuous and peak drain currents as a function of drain- source voltage
