Nexperia. PMV65ENEA. 40 V, N-channel Trench MOSFET. 8. Limiting values. Table 5. Limiting values. Symbol. Parameter. Conditions. Min. Max
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

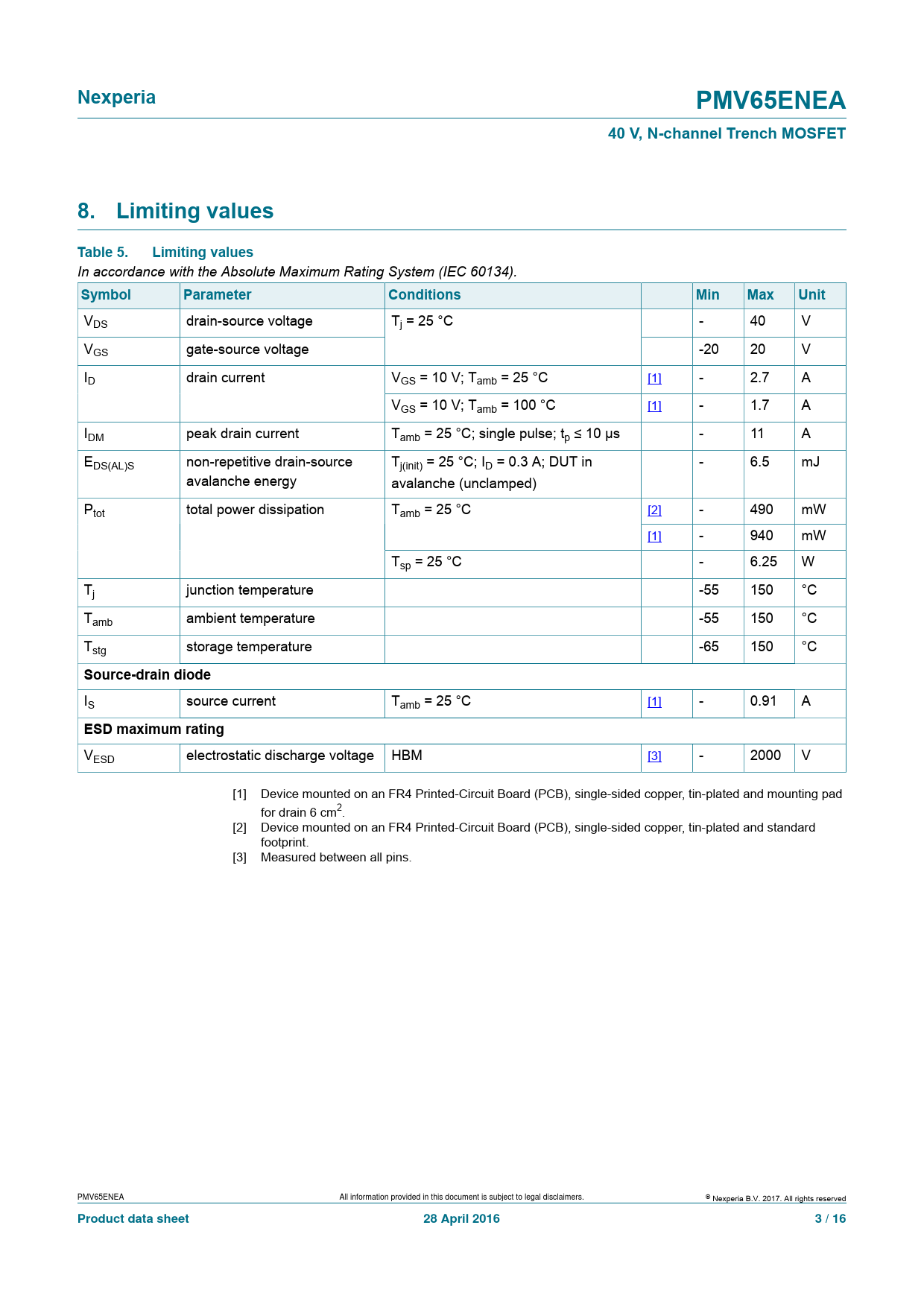

Nexperia PMV65ENEA 40 V, N-channel Trench MOSFET 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage Tj = 25 °C - 40 V VGS gate-source voltage -20 20 V ID drain current VGS = 10 V; Tamb = 25 °C [1] - 2.7 A VGS = 10 V; Tamb = 100 °C [1] - 1.7 A IDM peak drain current Tamb = 25 °C; single pulse; tp ≤ 10 µs - 11 A EDS(AL)S non-repetitive drain-source Tj(init) = 25 °C; ID = 0.3 A; DUT in - 6.5 mJ avalanche energy avalanche (unclamped) Ptot total power dissipation Tamb = 25 °C [2] - 490 mW [1] - 940 mW Tsp = 25 °C - 6.25 W Tj junction temperature -55 150 °C Tamb ambient temperature -55 150 °C Tstg storage temperature -65 150 °C
Source-drain diode
IS source current Tamb = 25 °C [1] - 0.91 A
ESD maximum rating
VESD electrostatic discharge voltage HBM [3] - 2000 V [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and mounting pad for drain 6 cm2. [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [3] Measured between all pins. PMV65ENEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
