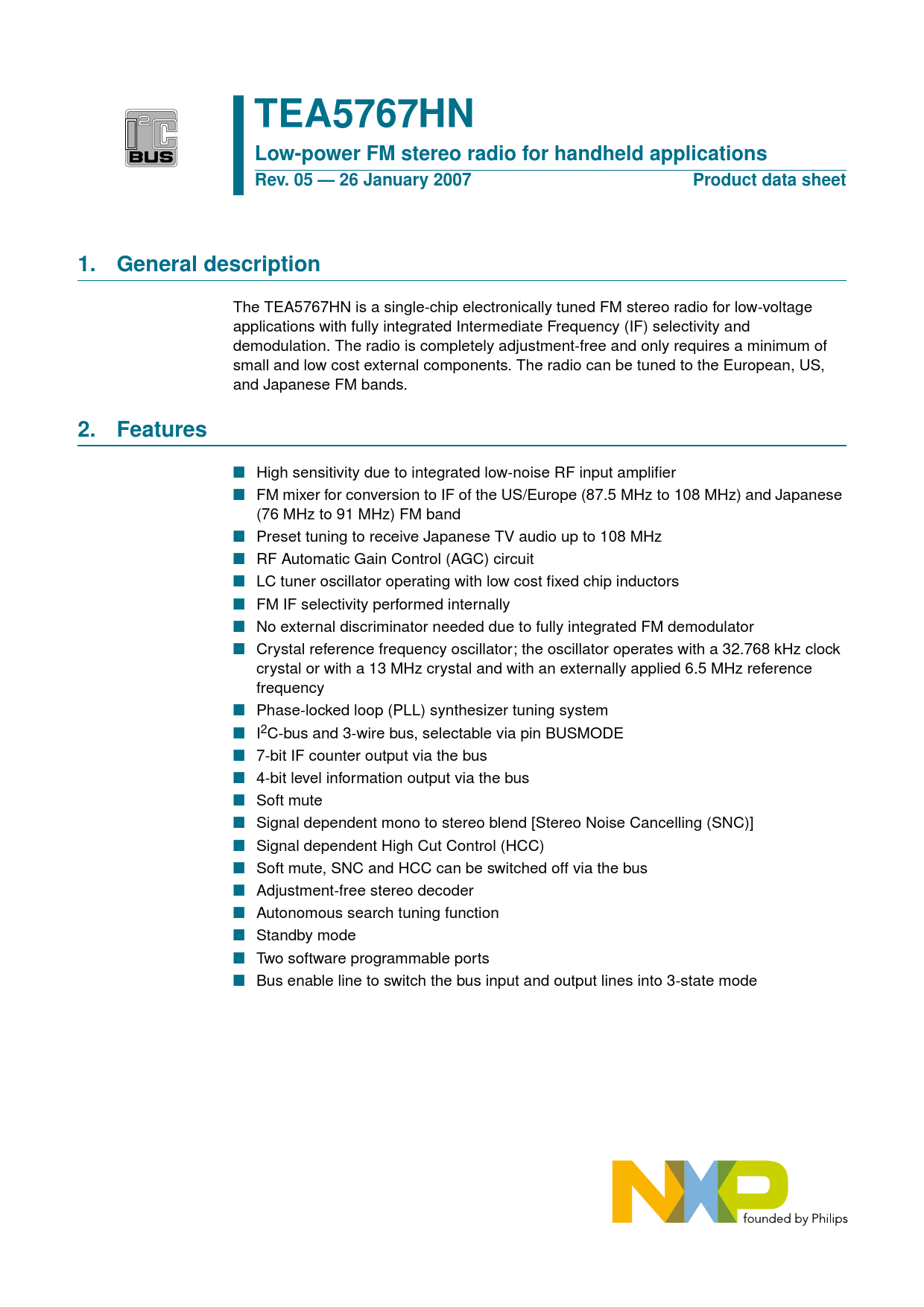

TEA5767HN Low-power FM stereo radio for handheld applications. Rev. 05 — 26 January 2007. Product data sheet
Model Line for this Datasheet
Text Version of Document
TEA5767HN Low-power FM stereo radio for handheld applications Rev. 05 — 26 January 2007 Product data sheet 1. General description
The TEA5767HN is a single-chip electronically tuned FM stereo radio for low-voltage applications with fully integrated Intermediate Frequency (IF) selectivity and demodulation. The radio is completely adjustment-free and only requires a minimum of small and low cost external components. The radio can be tuned to the European, US, and Japanese FM bands.
2. Features
n High sensitivity due to integrated low-noise RF input amplifier n FM mixer for conversion to IF of the US/Europe (87.5 MHz to 108 MHz) and Japanese (76 MHz to 91 MHz) FM band n Preset tuning to receive Japanese TV audio up to 108 MHz n RF Automatic Gain Control (AGC) circuit n LC tuner oscillator operating with low cost fixed chip inductors n FM IF selectivity performed internally n No external discriminator needed due to fully integrated FM demodulator n Crystal reference frequency oscillator; the oscillator operates with a 32.768 kHz clock crystal or with a 13 MHz crystal and with an externally applied 6.5 MHz reference frequency n Phase-locked loop (PLL) synthesizer tuning system n I2C-bus and 3-wire bus, selectable via pin BUSMODE n 7-bit IF counter output via the bus n 4-bit level information output via the bus n Soft mute n Signal dependent mono to stereo blend [Stereo Noise Cancelling (SNC)] n Signal dependent High Cut Control (HCC) n Soft mute, SNC and HCC can be switched off via the bus n Adjustment-free stereo decoder n Autonomous search tuning function n Standby mode n Two software programmable ports n Bus enable line to switch the bus input and output lines into 3-state mode Document Outline 1. General description 2. Features 3. Quick reference data 4. Ordering information 5. Block diagram 6. Pinning information 6.1 Pinning 6.2 Pin description 7. Functional description 7.1 Low-noise RF amplifier 7.2 FM mixer 7.3 VCO 7.4 Crystal oscillator 7.5 PLL tuning system 7.6 RF AGC 7.7 IF filter 7.8 FM demodulator 7.9 Level voltage generator and analog-to-digital converter 7.10 IF counter 7.11 Soft mute 7.12 MPX decoder 7.13 Signal dependent mono to stereo blend 7.14 Signal dependent AF response 7.15 Software programmable ports 7.16 I2C-bus and 3-wire bus 8. I2C-bus, 3-wire bus and bus-controlled functions 8.1 I2C-bus specification 8.1.1 Data transfer 8.1.2 Power-on reset 8.2 I2C-bus protocol 8.3 3-wire bus specification 8.3.1 Data transfer 8.3.2 Power-on reset 8.4 Writing data 8.5 Reading data 9. Internal circuitry 10. Limiting values 11. Thermal characteristics 12. Static characteristics 13. Dynamic characteristics 14. FM characteristics 15. I2C-bus characteristics 16. Test information 17. Package outline 18. Soldering 18.1 Introduction to soldering 18.2 Wave and reflow soldering 18.3 Wave soldering 18.4 Reflow soldering 19. Revision history 20. Legal information 20.1 Data sheet status 20.2 Definitions 20.3 Disclaimers 20.4 Trademarks 21. Contact information 22. Contents
The TEA5767HN is a single-chip electronically tuned FM stereo radio for low-voltage applications with fully integrated Intermediate Frequency (IF) selectivity and demodulation. The radio is completely adjustment-free and only requires a minimum of small and low cost external components. The radio can be tuned to the European, US, and Japanese FM bands.
2. Features
n High sensitivity due to integrated low-noise RF input amplifier n FM mixer for conversion to IF of the US/Europe (87.5 MHz to 108 MHz) and Japanese (76 MHz to 91 MHz) FM band n Preset tuning to receive Japanese TV audio up to 108 MHz n RF Automatic Gain Control (AGC) circuit n LC tuner oscillator operating with low cost fixed chip inductors n FM IF selectivity performed internally n No external discriminator needed due to fully integrated FM demodulator n Crystal reference frequency oscillator; the oscillator operates with a 32.768 kHz clock crystal or with a 13 MHz crystal and with an externally applied 6.5 MHz reference frequency n Phase-locked loop (PLL) synthesizer tuning system n I2C-bus and 3-wire bus, selectable via pin BUSMODE n 7-bit IF counter output via the bus n 4-bit level information output via the bus n Soft mute n Signal dependent mono to stereo blend [Stereo Noise Cancelling (SNC)] n Signal dependent High Cut Control (HCC) n Soft mute, SNC and HCC can be switched off via the bus n Adjustment-free stereo decoder n Autonomous search tuning function n Standby mode n Two software programmable ports n Bus enable line to switch the bus input and output lines into 3-state mode Document Outline 1. General description 2. Features 3. Quick reference data 4. Ordering information 5. Block diagram 6. Pinning information 6.1 Pinning 6.2 Pin description 7. Functional description 7.1 Low-noise RF amplifier 7.2 FM mixer 7.3 VCO 7.4 Crystal oscillator 7.5 PLL tuning system 7.6 RF AGC 7.7 IF filter 7.8 FM demodulator 7.9 Level voltage generator and analog-to-digital converter 7.10 IF counter 7.11 Soft mute 7.12 MPX decoder 7.13 Signal dependent mono to stereo blend 7.14 Signal dependent AF response 7.15 Software programmable ports 7.16 I2C-bus and 3-wire bus 8. I2C-bus, 3-wire bus and bus-controlled functions 8.1 I2C-bus specification 8.1.1 Data transfer 8.1.2 Power-on reset 8.2 I2C-bus protocol 8.3 3-wire bus specification 8.3.1 Data transfer 8.3.2 Power-on reset 8.4 Writing data 8.5 Reading data 9. Internal circuitry 10. Limiting values 11. Thermal characteristics 12. Static characteristics 13. Dynamic characteristics 14. FM characteristics 15. I2C-bus characteristics 16. Test information 17. Package outline 18. Soldering 18.1 Introduction to soldering 18.2 Wave and reflow soldering 18.3 Wave soldering 18.4 Reflow soldering 19. Revision history 20. Legal information 20.1 Data sheet status 20.2 Definitions 20.3 Disclaimers 20.4 Trademarks 21. Contact information 22. Contents
