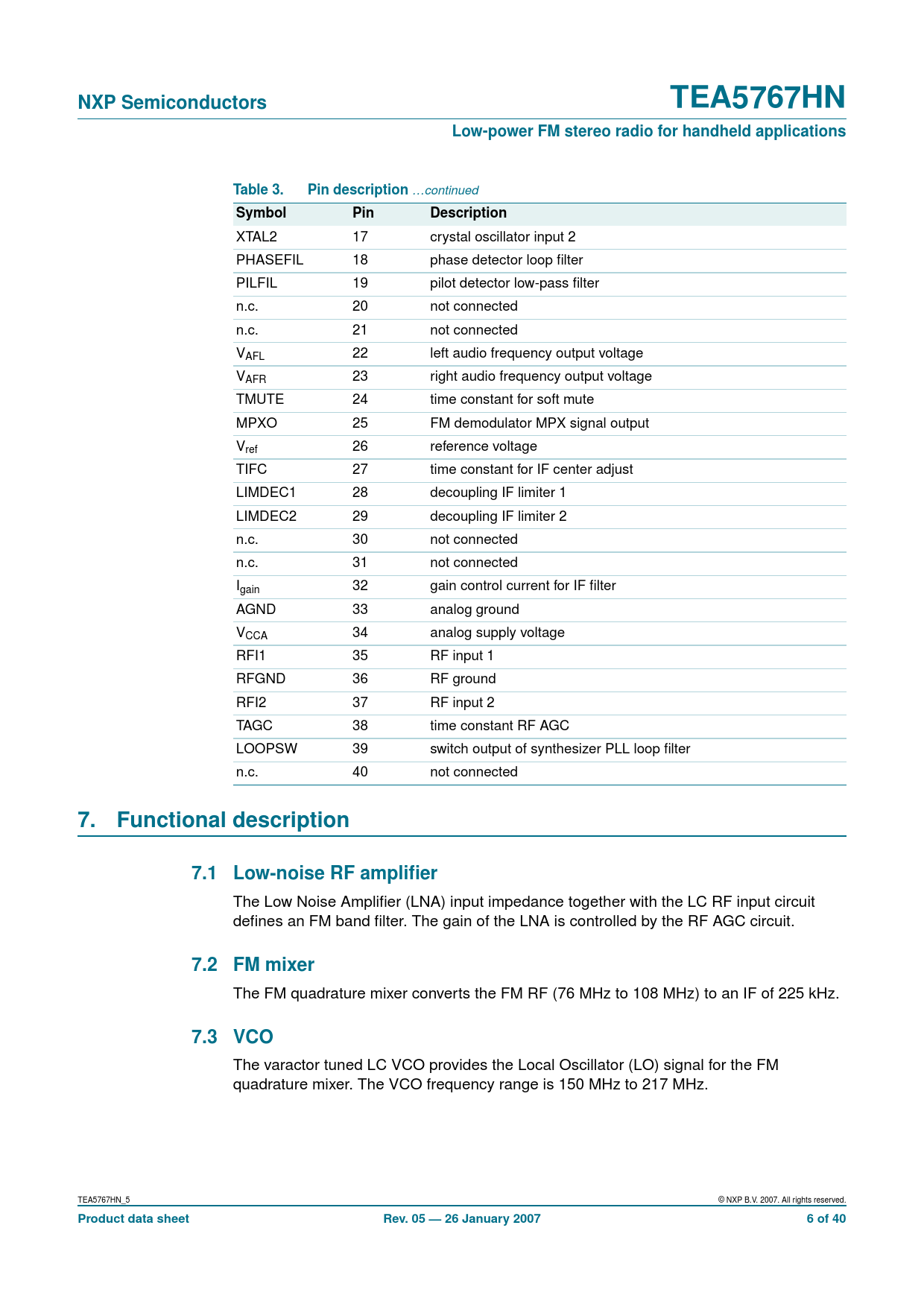

NXP Semiconductors. TEA5767HN. Low-power FM stereo radio for handheld applications. Table 3. Pin description. Symbol. Pin
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors TEA5767HN Low-power FM stereo radio for handheld applications Table 3. Pin description
…continued
Symbol Pin Description
XTAL2 17 crystal oscillator input 2 PHASEFIL 18 phase detector loop filter PILFIL 19 pilot detector low-pass filter n.c. 20 not connected n.c. 21 not connected VAFL 22 left audio frequency output voltage VAFR 23 right audio frequency output voltage TMUTE 24 time constant for soft mute MPXO 25 FM demodulator MPX signal output Vref 26 reference voltage TIFC 27 time constant for IF center adjust LIMDEC1 28 decoupling IF limiter 1 LIMDEC2 29 decoupling IF limiter 2 n.c. 30 not connected n.c. 31 not connected Igain 32 gain control current for IF filter AGND 33 analog ground VCCA 34 analog supply voltage RFI1 35 RF input 1 RFGND 36 RF ground RFI2 37 RF input 2 TAGC 38 time constant RF AGC LOOPSW 39 switch output of synthesizer PLL loop filter n.c. 40 not connected
7. Functional description 7.1 Low-noise RF amplifier
The Low Noise Amplifier (LNA) input impedance together with the LC RF input circuit defines an FM band filter. The gain of the LNA is controlled by the RF AGC circuit.
7.2 FM mixer
The FM quadrature mixer converts the FM RF (76 MHz to 108 MHz) to an IF of 225 kHz.
7.3 VCO
The varactor tuned LC VCO provides the Local Oscillator (LO) signal for the FM quadrature mixer. The VCO frequency range is 150 MHz to 217 MHz. TEA5767HN_5 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 05 — 26 January 2007 6 of 40
