Datasheet SB520, SB530, SB540, SB550, SB560 (Vishay) - 3
| Manufacturer | Vishay |
| Description | Schottky Barrier Plastic Rectifier in DO-201AD package |
| Pages / Page | 4 / 3 — SB520 thru SB560. PACKAGE OUTLINE DIMENSIONS. DO-201AD |
| File Format / Size | PDF / 69 Kb |
| Document Language | English |
SB520 thru SB560. PACKAGE OUTLINE DIMENSIONS. DO-201AD
Model Line for this Datasheet
Text Version of Document

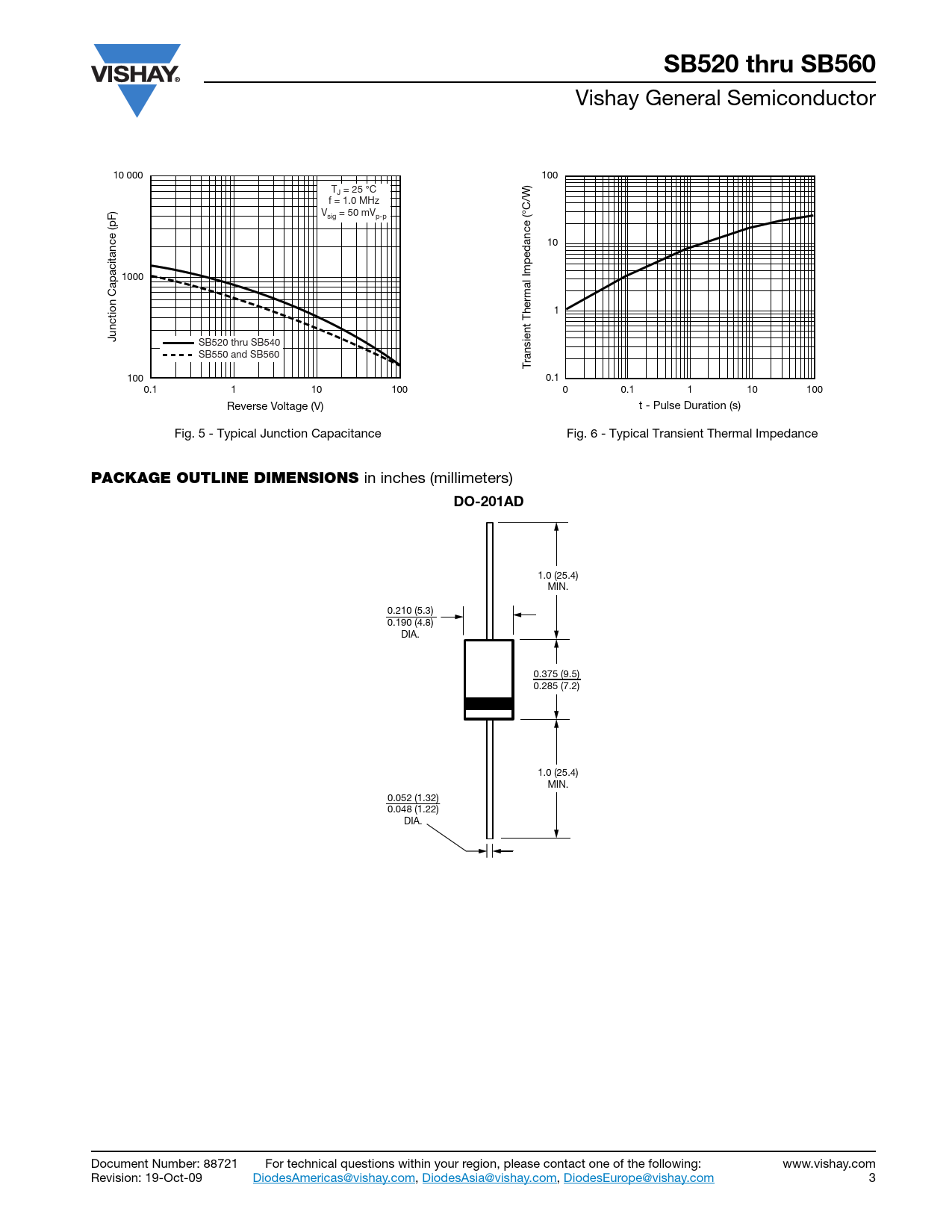

SB520 thru SB560
Vishay General Semiconductor 10 000 100 T = 25 °C J f = 1.0 MHz V = 50 mV sig p-p 10 ance (pF) 1000 1 Junction Capacit SB520 thru SB540 ient Thermal Impedance (°C/W) s n SB550 and SB560 a Tr 100 0.1 0.1 1 10 100 0 0.1 1 10 100 Reverse Voltage (V) t - Pulse Duration (s) Fig. 5 - Typical Junction Capacitance Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-201AD
1.0 (25.4) MIN. 0.210 (5.3) 0.190 (4.8) DIA. 0.375 (9.5) 0.285 (7.2) 1.0 (25.4) MIN. 0.052 (1.32) 0.048 (1.22) DIA. Document Number: 88721 For technical questions within your region, please contact one of the following: www.vishay.com Revision: 19-Oct-09 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 3
