Datasheet BZX85 (Vishay) - 2
| Manufacturer | Vishay |
| Description | Silicon Planar Power Zener Diodes in DO-41 (DO-204AL) package |
| Pages / Page | 8 / 2 — BZX85-Series. VISHAY. Vishay Semiconductors. Electrical Characteristics |
| Revision | 1.7 |
| File Format / Size | PDF / 206 Kb |
| Document Language | English |
BZX85-Series. VISHAY. Vishay Semiconductors. Electrical Characteristics
Model Line for this Datasheet
- BZX85-B180 BZX85-C200 BZX85B10 BZX85B10-TAP BZX85B10-TR BZX85B100 BZX85B100-TAP BZX85B100-TR BZX85B11 BZX85B11-TAP BZX85B11-TR BZX85B110 BZX85B12 BZX85B12-TAP BZX85B12-TR BZX85B120 BZX85B13 BZX85B13-TAP BZX85B13-TR BZX85B130 BZX85B15 BZX85B15-TAP BZX85B15-TR BZX85B150 BZX85B16 BZX85B16-TAP BZX85B16-TR BZX85B160 BZX85B18 BZX85B18-TAP BZX85B18-TR BZX85B180 BZX85B20 BZX85B20-TAP BZX85B20-TR BZX85B200 BZX85B22 BZX85B22-TAP BZX85B22-TR BZX85B24 BZX85B24-TAP BZX85B24-TR BZX85B27 BZX85B27-TAP BZX85B27-TR BZX85B2V7 BZX85B2V7-TAP BZX85B2V7-TR BZX85B30 BZX85B30-TAP BZX85B30-TR BZX85B33 BZX85B33-TAP BZX85B33-TR BZX85B36 BZX85B36-TAP BZX85B36-TR BZX85B39 BZX85B39-TAP BZX85B39-TR BZX85B3V0 BZX85B3V0-TAP BZX85B3V0-TR BZX85B3V3 BZX85B3V3-TAP BZX85B3V3-TR BZX85B3V6 BZX85B3V6-TAP BZX85B3V6-TR BZX85B3V9 BZX85B3V9-TAP BZX85B3V9-TR BZX85B43 BZX85B43-TAP BZX85B43-TR BZX85B47 BZX85B47-TAP BZX85B47-TR BZX85B4V3 BZX85B4V3-TAP BZX85B4V3-TR BZX85B4V7 BZX85B4V7-TAP BZX85B4V7-TR BZX85B51 BZX85B51-TAP BZX85B51-TR BZX85B56 BZX85B56-TAP BZX85B56-TR BZX85B5V1 BZX85B5V1-TAP BZX85B5V1-TR BZX85B5V6 BZX85B5V6-TAP BZX85B5V6-TR BZX85B62 BZX85B62-TAP BZX85B62-TR BZX85B68 BZX85B68-TAP BZX85B68-TR BZX85B6V2 BZX85B6V2-TAP BZX85B6V2-TR BZX85B6V8 BZX85B6V8-TAP BZX85B6V8-TR BZX85B75 BZX85B75-TAP BZX85B75-TR BZX85B7V5 BZX85B7V5-TAP BZX85B7V5-TR BZX85B82 BZX85B82-TAP BZX85B82-TR BZX85B8V2 BZX85B8V2-TAP BZX85B8V2-TR BZX85B91 BZX85B91-TAP BZX85B91-TR BZX85B9V1 BZX85B9V1-TAP BZX85B9V1-TR BZX85C10 BZX85C10-TAP BZX85C10-TR BZX85C100 BZX85C100-TAP BZX85C100-TR BZX85C11 BZX85C11-TAP BZX85C11-TR BZX85C110 BZX85C12 BZX85C12-TAP BZX85C12-TR BZX85C120 BZX85C13 BZX85C13-TAP BZX85C13-TR BZX85C130 BZX85C15 BZX85C15-TAP BZX85C15-TR BZX85C150 BZX85C16 BZX85C16-TAP BZX85C16-TR BZX85C160 BZX85C18 BZX85C18-TAP BZX85C18-TR BZX85C180 BZX85C20 BZX85C20-TAP BZX85C20-TR BZX85C200 BZX85C22 BZX85C22-TAP BZX85C22-TR BZX85C24 BZX85C24-TAP BZX85C24-TR BZX85C27 BZX85C27-TAP BZX85C27-TR BZX85C2V7 BZX85C2V7-TAP BZX85C2V7-TR BZX85C30 BZX85C30-TAP BZX85C30-TR BZX85C33 BZX85C33-TAP BZX85C33-TR BZX85C36 BZX85C36-TAP BZX85C36-TR BZX85C39 BZX85C39-TAP BZX85C39-TR BZX85C3V0 BZX85C3V0-TAP BZX85C3V0-TR BZX85C3V3 BZX85C3V3-TAP BZX85C3V3-TR BZX85C3V6 BZX85C3V6-TAP BZX85C3V6-TR BZX85C3V9 BZX85C3V9-TAP BZX85C3V9-TR BZX85C43 BZX85C43-TAP BZX85C43-TR BZX85C47 BZX85C47-TAP BZX85C47-TR BZX85C4V3 BZX85C4V3-TAP BZX85C4V3-TR BZX85C4V7 BZX85C4V7-TAP BZX85C4V7-TR BZX85C51 BZX85C51-TAP BZX85C51-TR BZX85C56 BZX85C56-TAP BZX85C56-TR BZX85C5V1 BZX85C5V1-TAP BZX85C5V1-TR BZX85C5V6 BZX85C5V6-TAP BZX85C5V6-TR BZX85C62 BZX85C62-TAP BZX85C62-TR BZX85C68 BZX85C68-TAP BZX85C68-TR BZX85C6V2 BZX85C6V2-TAP BZX85C6V2-TR BZX85C6V8 BZX85C6V8-TAP BZX85C6V8-TR BZX85C75 BZX85C75-TAP BZX85C75-TR BZX85C7V5 BZX85C7V5-TAP BZX85C7V5-TR BZX85C82 BZX85C82-TAP BZX85C82-TR BZX85C8V2 BZX85C8V2-TAP BZX85C8V2-TR BZX85C91 BZX85C91-TAP BZX85C91-TR BZX85C9V1 BZX85C9V1-TAP BZX85C9V1-TR
Text Version of Document

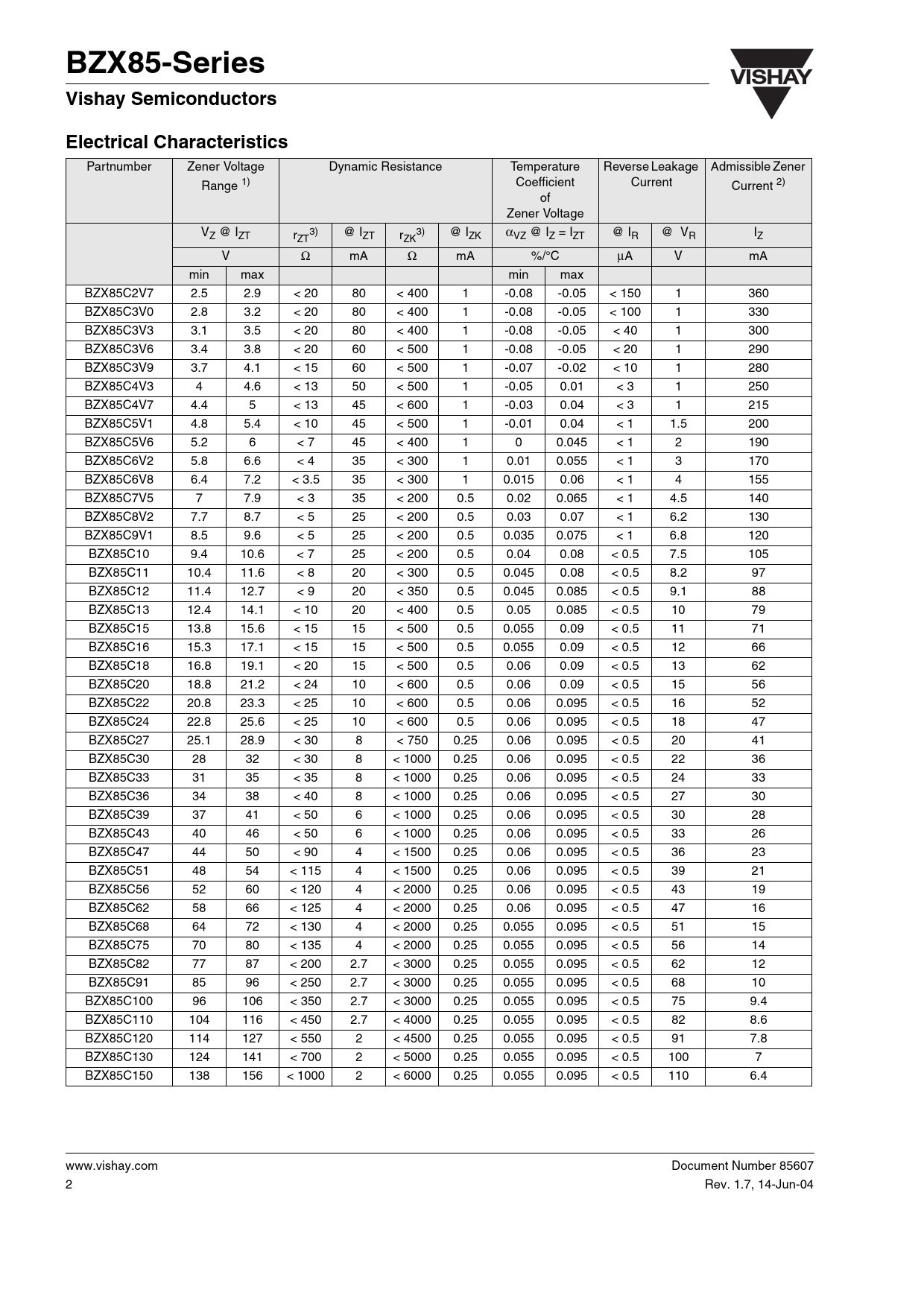

BZX85-Series VISHAY Vishay Semiconductors Electrical Characteristics
Partnumber Zener Voltage Dynamic Resistance Temperature Reverse Leakage Admissible Zener Range 1) Coefficient Current Current 2) of Zener Voltage V 3) 3) Z @ IZT r @ I @ I ZT ZT rZK ZK αVZ @ IZ = IZT @ IR @ VR IZ V Ω mA Ω mA %/°C µA V mA min max min max BZX85C2V7 2.5 2.9 < 20 80 < 400 1 -0.08 -0.05 < 150 1 360 BZX85C3V0 2.8 3.2 < 20 80 < 400 1 -0.08 -0.05 < 100 1 330 BZX85C3V3 3.1 3.5 < 20 80 < 400 1 -0.08 -0.05 < 40 1 300 BZX85C3V6 3.4 3.8 < 20 60 < 500 1 -0.08 -0.05 < 20 1 290 BZX85C3V9 3.7 4.1 < 15 60 < 500 1 -0.07 -0.02 < 10 1 280 BZX85C4V3 4 4.6 < 13 50 < 500 1 -0.05 0.01 < 3 1 250 BZX85C4V7 4.4 5 < 13 45 < 600 1 -0.03 0.04 < 3 1 215 BZX85C5V1 4.8 5.4 < 10 45 < 500 1 -0.01 0.04 < 1 1.5 200 BZX85C5V6 5.2 6 < 7 45 < 400 1 0 0.045 < 1 2 190 BZX85C6V2 5.8 6.6 < 4 35 < 300 1 0.01 0.055 < 1 3 170 BZX85C6V8 6.4 7.2 < 3.5 35 < 300 1 0.015 0.06 < 1 4 155 BZX85C7V5 7 7.9 < 3 35 < 200 0.5 0.02 0.065 < 1 4.5 140 BZX85C8V2 7.7 8.7 < 5 25 < 200 0.5 0.03 0.07 < 1 6.2 130 BZX85C9V1 8.5 9.6 < 5 25 < 200 0.5 0.035 0.075 < 1 6.8 120 BZX85C10 9.4 10.6 < 7 25 < 200 0.5 0.04 0.08 < 0.5 7.5 105 BZX85C11 10.4 11.6 < 8 20 < 300 0.5 0.045 0.08 < 0.5 8.2 97 BZX85C12 11.4 12.7 < 9 20 < 350 0.5 0.045 0.085 < 0.5 9.1 88 BZX85C13 12.4 14.1 < 10 20 < 400 0.5 0.05 0.085 < 0.5 10 79 BZX85C15 13.8 15.6 < 15 15 < 500 0.5 0.055 0.09 < 0.5 11 71 BZX85C16 15.3 17.1 < 15 15 < 500 0.5 0.055 0.09 < 0.5 12 66 BZX85C18 16.8 19.1 < 20 15 < 500 0.5 0.06 0.09 < 0.5 13 62 BZX85C20 18.8 21.2 < 24 10 < 600 0.5 0.06 0.09 < 0.5 15 56 BZX85C22 20.8 23.3 < 25 10 < 600 0.5 0.06 0.095 < 0.5 16 52 BZX85C24 22.8 25.6 < 25 10 < 600 0.5 0.06 0.095 < 0.5 18 47 BZX85C27 25.1 28.9 < 30 8 < 750 0.25 0.06 0.095 < 0.5 20 41 BZX85C30 28 32 < 30 8 < 1000 0.25 0.06 0.095 < 0.5 22 36 BZX85C33 31 35 < 35 8 < 1000 0.25 0.06 0.095 < 0.5 24 33 BZX85C36 34 38 < 40 8 < 1000 0.25 0.06 0.095 < 0.5 27 30 BZX85C39 37 41 < 50 6 < 1000 0.25 0.06 0.095 < 0.5 30 28 BZX85C43 40 46 < 50 6 < 1000 0.25 0.06 0.095 < 0.5 33 26 BZX85C47 44 50 < 90 4 < 1500 0.25 0.06 0.095 < 0.5 36 23 BZX85C51 48 54 < 115 4 < 1500 0.25 0.06 0.095 < 0.5 39 21 BZX85C56 52 60 < 120 4 < 2000 0.25 0.06 0.095 < 0.5 43 19 BZX85C62 58 66 < 125 4 < 2000 0.25 0.06 0.095 < 0.5 47 16 BZX85C68 64 72 < 130 4 < 2000 0.25 0.055 0.095 < 0.5 51 15 BZX85C75 70 80 < 135 4 < 2000 0.25 0.055 0.095 < 0.5 56 14 BZX85C82 77 87 < 200 2.7 < 3000 0.25 0.055 0.095 < 0.5 62 12 BZX85C91 85 96 < 250 2.7 < 3000 0.25 0.055 0.095 < 0.5 68 10 BZX85C100 96 106 < 350 2.7 < 3000 0.25 0.055 0.095 < 0.5 75 9.4 BZX85C110 104 116 < 450 2.7 < 4000 0.25 0.055 0.095 < 0.5 82 8.6 BZX85C120 114 127 < 550 2 < 4500 0.25 0.055 0.095 < 0.5 91 7.8 BZX85C130 124 141 < 700 2 < 5000 0.25 0.055 0.095 < 0.5 100 7 BZX85C150 138 156 < 1000 2 < 6000 0.25 0.055 0.095 < 0.5 110 6.4 www.vishay.com Document Number 85607 2 Rev. 1.7, 14-Jun-04 Document Outline Zener Diodes Features Applications Mechanical Data Typical Characteristics (Tamb = 25 °C unless otherwise specified) Package Dimensions in mm (Inches)
