Datasheet SG3525A (ON Semiconductor) - 2

ManufacturerON Semiconductor
DescriptionPWM Controller
Pages / Page10 / 2 — SG3525A. SG3525A Output Stage. Figure 1. Representative Block Diagram. …
File Format / SizePDF / 384 Kb
Document LanguageEnglish

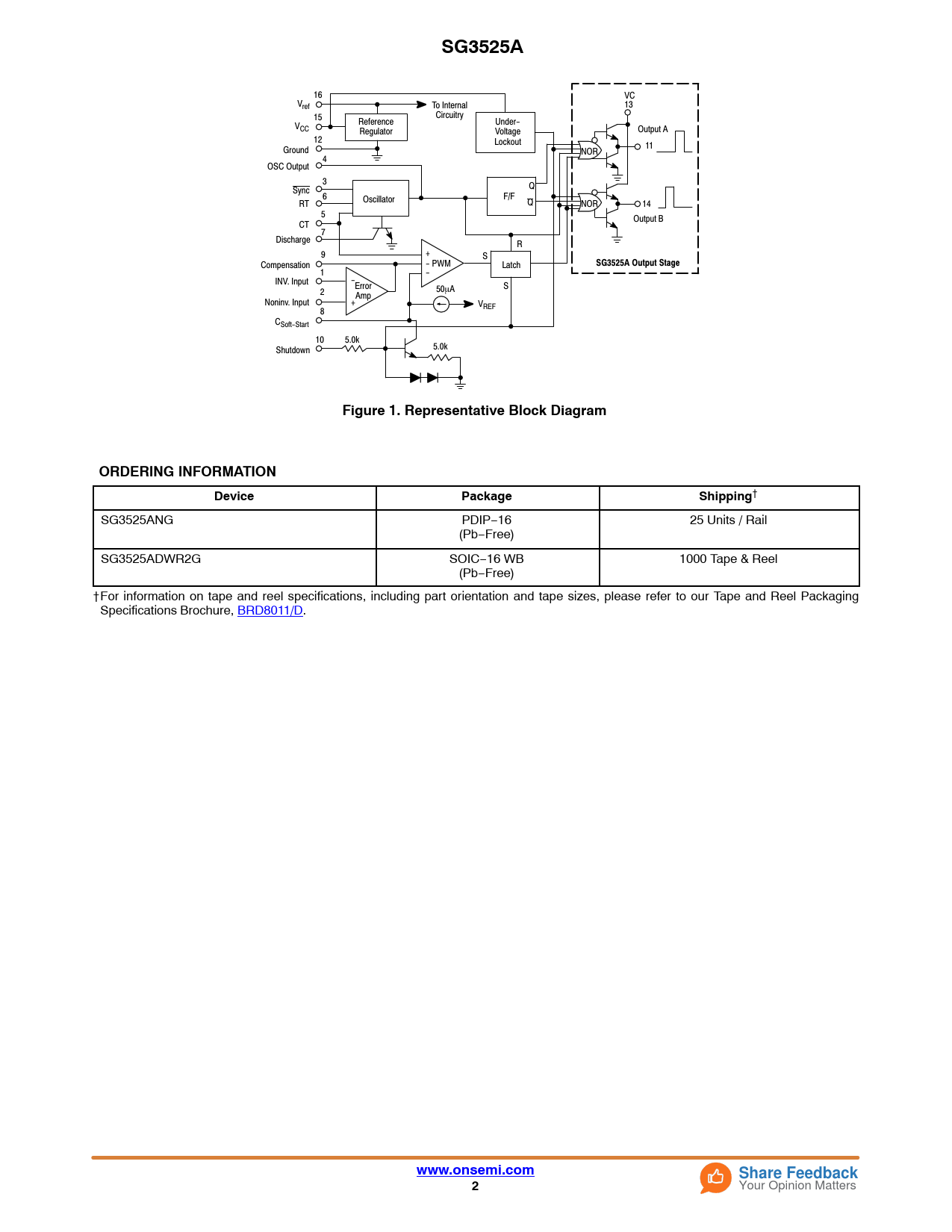

SG3525A. SG3525A Output Stage. Figure 1. Representative Block Diagram. ORDERING INFORMATION. Device. Package. Shipping

SG3525A SG3525A Output Stage Figure 1 Representative Block Diagram ORDERING INFORMATION Device Package Shipping

Model Line for this Datasheet

Text Version of Document

SG3525A
16 VC Vref To Internal 13 15 Circuitry Reference Under- VCC Regulator Voltage Output A 12 Lockout 11 Ground NOR 4 OSC Output 3 Q Sync 6 Oscillator F/F RT Q NOR 14 5 Output B CT 7 Discharge R 9 + S Compensation - PWM Latch
SG3525A Output Stage
1 - INV. Input -Error S 2 50mA Amp Noninv. Input + VREF 8 CSoft-Start 10 5.0k Shutdown 5.0k
Figure 1. Representative Block Diagram ORDERING INFORMATION Device Package Shipping
† SG3525ANG PDIP−16 25 Units / Rail (Pb−Free) SG3525ADWR2G SOIC−16 WB 1000 Tape & Reel (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
