Control elements
Text Version of Document
Overview of the R&S
®
RTE oscilloscope
Control elements

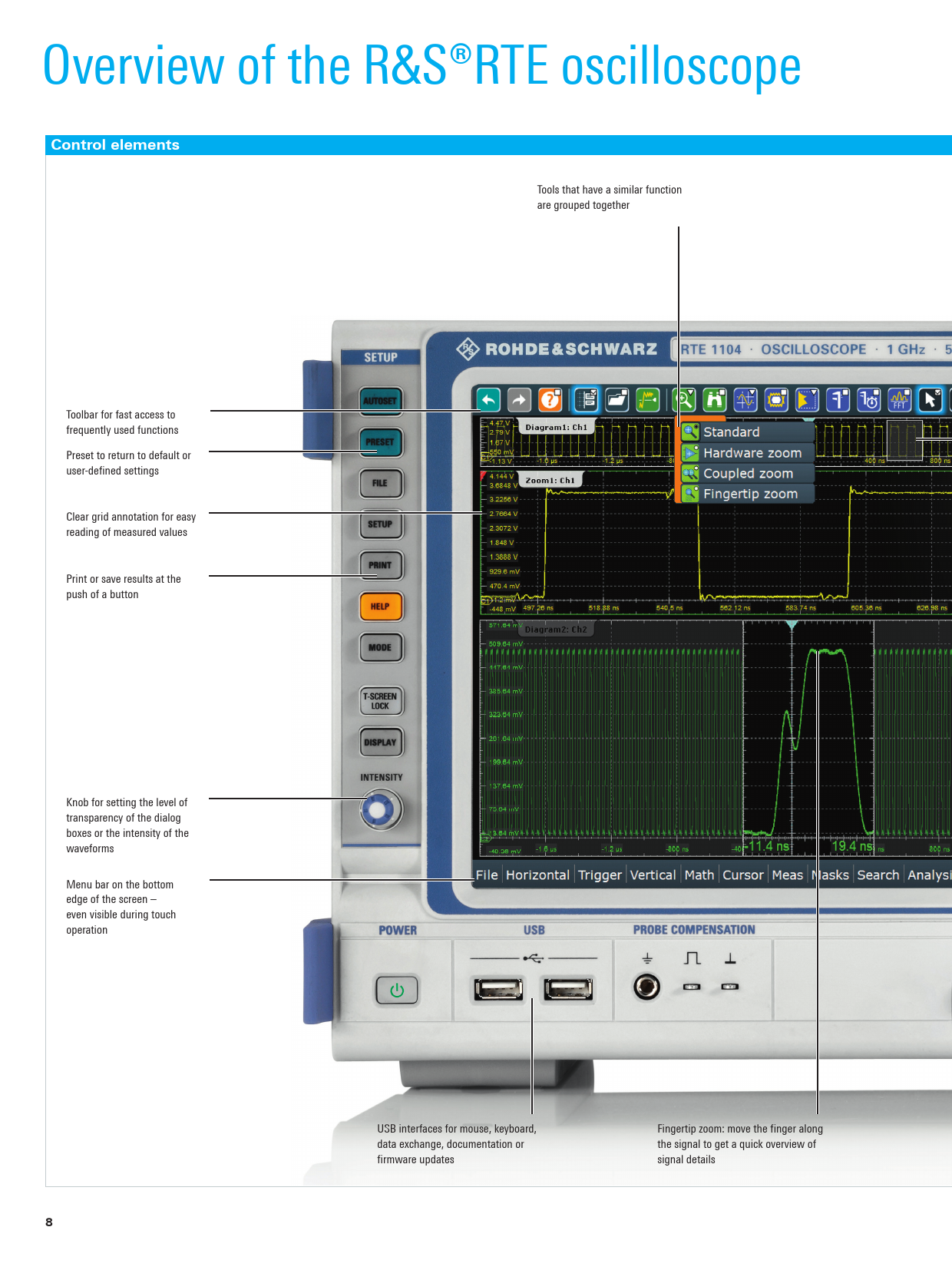

Tools that have a similar function are grouped together Toolbar for fast access to frequently used functions Preset to return to default or user-defined settings Clear grid annotation for easy reading of measured values Print or save results at the push of a button Knob for setting the level of transparency of the dialog boxes or the intensity of the waveforms Menu bar on the bottom edge of the screen – even visible during touch operation USB interfaces for mouse, keyboard, Fingertip zoom: move the finger along data exchange, documentation or the signal to get a quick overview of firmware updates signal details
