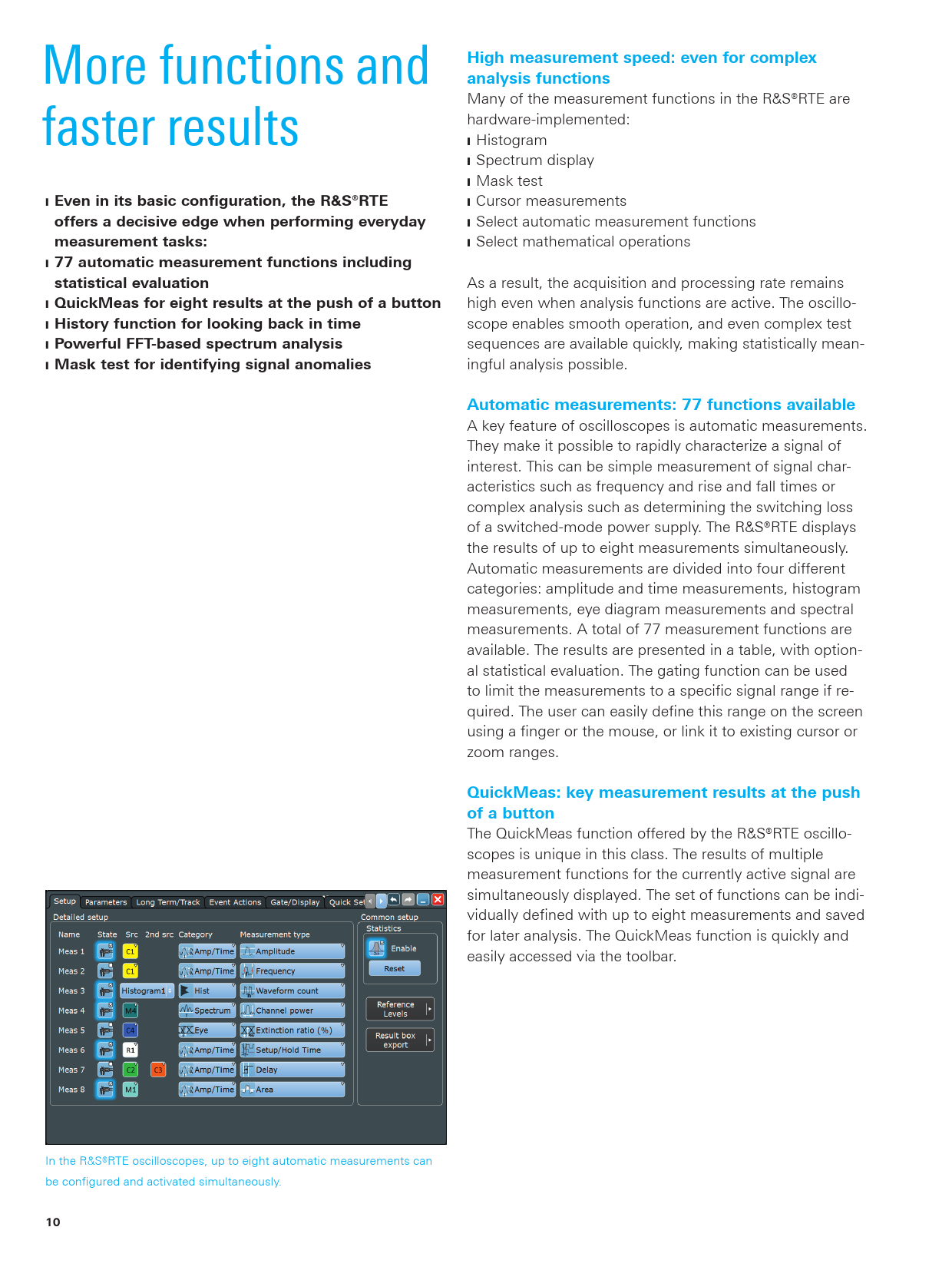

High measurement speed: even for complex. analysis functions. Even in its basic configuration, the R&S®RTE
Text Version of Document
High measurement speed: even for complex
More functions and
analysis functions
Many of the measurement functions in the R&S®RTE are hardware-implemented: faster results ❙Histogram ❙Spectrum display ❙Mask test
❙
Even in its basic configuration, the R&S®RTE
❙Cursor measurements
offers a decisive edge when performing everyday
❙Select automatic measurement functions
measurement tasks:
❙Select mathematical operations
❙
77 automatic measurement functions including statistical evaluation
As a result, the acquisition and processing rate remains
❙
QuickMeas for eight results at the push of a button
high even when analysis functions are active. The oscillo-
❙
History function for looking back in time
scope enables smooth operation, and even complex test
❙
Powerful FFT-based spectrum analysis
sequences are available quickly, making statistically mean-
❙
Mask test for identifying signal anomalies
ingful analysis possible.
Automatic measurements: 77 functions available
A key feature of oscilloscopes is automatic measurements. They make it possible to rapidly characterize a signal of interest. This can be simple measurement of signal char- acteristics such as frequency and rise and fall times or complex analysis such as determining the switching loss of a switched-mode power supply. The R&S®RTE displays the results of up to eight measurements simultaneously. Automatic measurements are divided into four different categories: amplitude and time measurements, histogram measurements, eye diagram measurements and spectral measurements. A total of 77 measurement functions are available. The results are presented in a table, with option- al statistical evaluation. The gating function can be used to limit the measurements to a specific signal range if re- quired. The user can easily define this range on the screen using a finger or the mouse, or link it to existing cursor or zoom ranges.
QuickMeas: key measurement results at the push of a button
The QuickMeas function offered by the R&S®RTE oscillo- scopes is unique in this class. The results of multiple measurement functions for the currently active signal are simultaneously displayed. The set of functions can be indi- vidually defined with up to eight measurements and saved for later analysis. The QuickMeas function is quickly and easily accessed via the toolbar. In the R&S®RTE oscilloscopes, up to eight automatic measurements can be configured and activated simultaneously.
