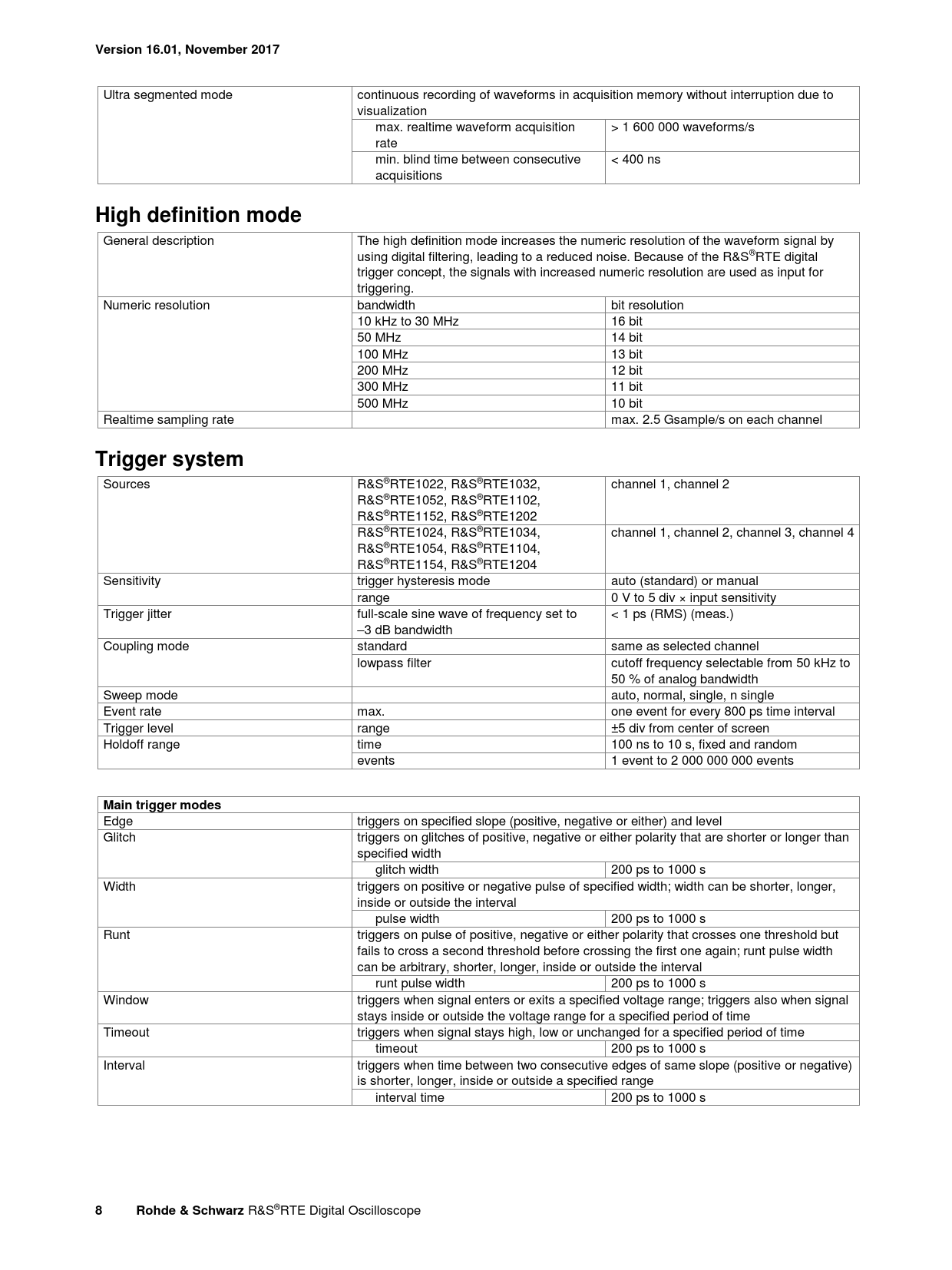

Version 16.01, November 2017. High definition mode. Trigger system. Main trigger modes. Rohde & Schwarz
Text Version of Document
Version 16.01, November 2017
Ultra segmented mode continuous recording of waveforms in acquisition memory without interruption due to visualization max. realtime waveform acquisition > 1 600 000 waveforms/s rate min. blind time between consecutive < 400 ns acquisitions
High definition mode
General description The high definition mode increases the numeric resolution of the waveform signal by using digital filtering, leading to a reduced noise. Because of the R&S®RTE digital trigger concept, the signals with increased numeric resolution are used as input for triggering. Numeric resolution bandwidth bit resolution 10 kHz to 30 MHz 16 bit 50 MHz 14 bit 100 MHz 13 bit 200 MHz 12 bit 300 MHz 11 bit 500 MHz 10 bit Realtime sampling rate max. 2.5 Gsample/s on each channel
