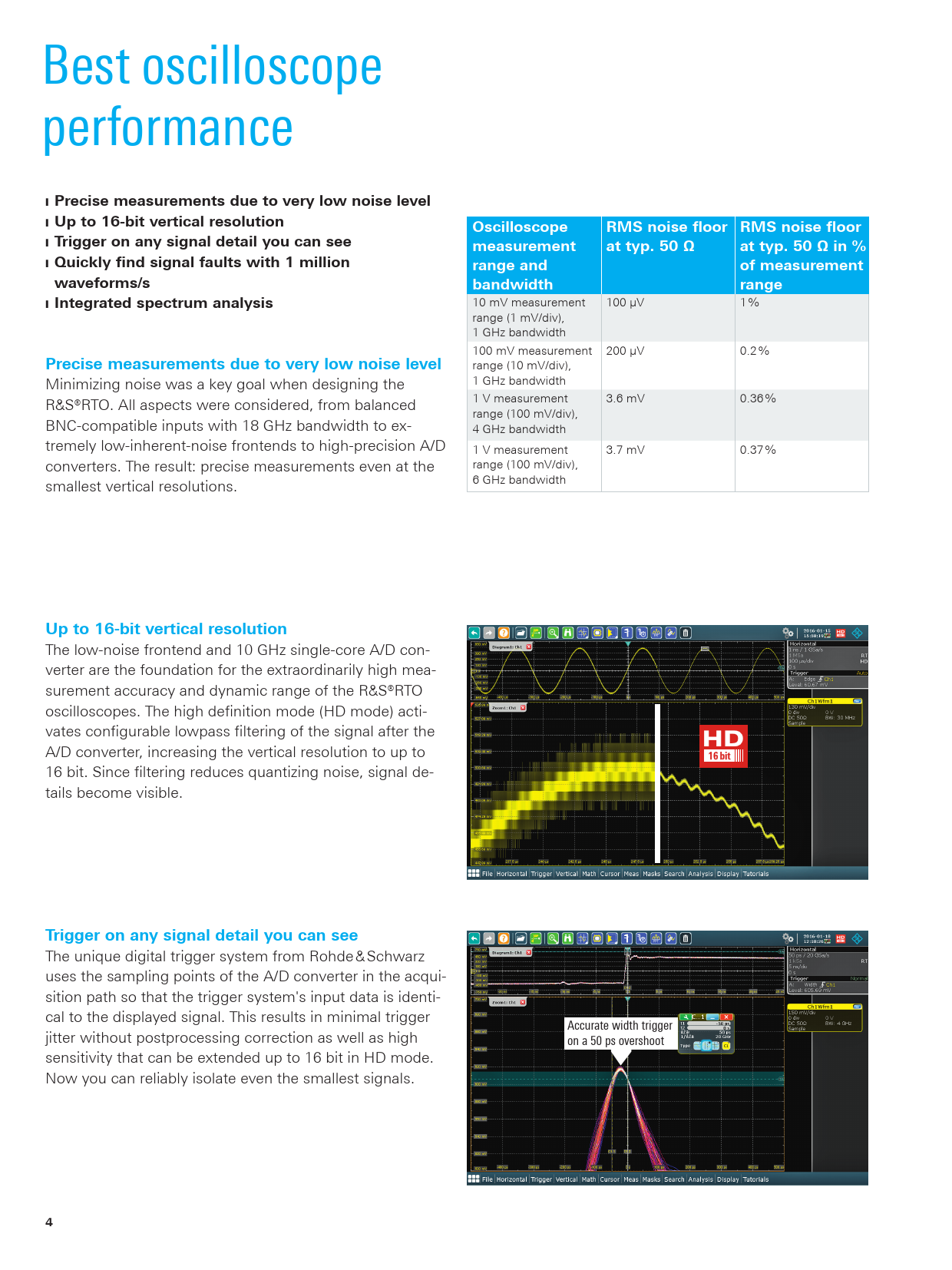

Precise measurements due to very low noise level. Up to 16-bit vertical resolution. Oscilloscope
Text Version of Document
Best oscilloscope performance
❙
Precise measurements due to very low noise level
❙
Up to 16-bit vertical resolution Oscilloscope RMS noise floor RMS noise floor
❙
Trigger on any signal detail you can see measurement at typ. 50 Ω at typ. 50 Ω in %
❙
Quickly find signal faults with 1 million range and of measurement waveforms/s bandwidth range
❙
Integrated spectrum analysis
10 mV measurement 100 µV 1 % range (1 mV/div), 1 GHz bandwidth 100 mV measurement 200 µV 0.2 %
Precise measurements due to very low noise level
range (10 mV/div), 1 GHz bandwidth Minimizing noise was a key goal when designing the 1 V measurement 3.6 mV 0.36 % R&S®RTO. All aspects were considered, from balanced range (100 mV/div), BNC-compatible inputs with 18 GHz bandwidth to ex- 4 GHz bandwidth tremely low-inherent-noise frontends to high-precision A/D 1 V measurement 3.7 mV 0.37 % converters. The result: precise measurements even at the range (100 mV/div), 6 GHz bandwidth smallest vertical resolutions.
Up to 16-bit vertical resolution
The low-noise frontend and 10 GHz single-core A/D con- verter are the foundation for the extraordinarily high mea- surement accuracy and dynamic range of the R&S®RTO oscilloscopes. The high definition mode (HD mode) acti- vates configurable lowpass filtering of the signal after the A/D converter, increasing the vertical resolution to up to 16 bit. Since filtering reduces quantizing noise, signal de- tails become visible.
Trigger on any signal detail you can see
The unique digital trigger system from Rohde & Schwarz uses the sampling points of the A/D converter in the acqui- sition path so that the trigger system's input data is identi- cal to the displayed signal. This results in minimal trigger Accurate width trigger jitter without postprocessing correction as well as high on a 50 ps overshoot sensitivity that can be extended up to 16 bit in HD mode. Now you can reliably isolate even the smallest signals.
4
