Product brochure RTO2000 Digital oscilloscope (Rohde&Schwarz) - 5
| Manufacturer | Rohde&Schwarz |
| Description | Digital Oscilloscope |
| Pages / Page | 46 / 5 — Quickly find signal faults with 1 million waveforms/s. Integrated … |
| Revision | 09.01 |
| File Format / Size | PDF / 47.7 Mb |
| Document Language | English |
Quickly find signal faults with 1 million waveforms/s. Integrated spectrum analysis. Flat frequency response for accurate
Text Version of Document

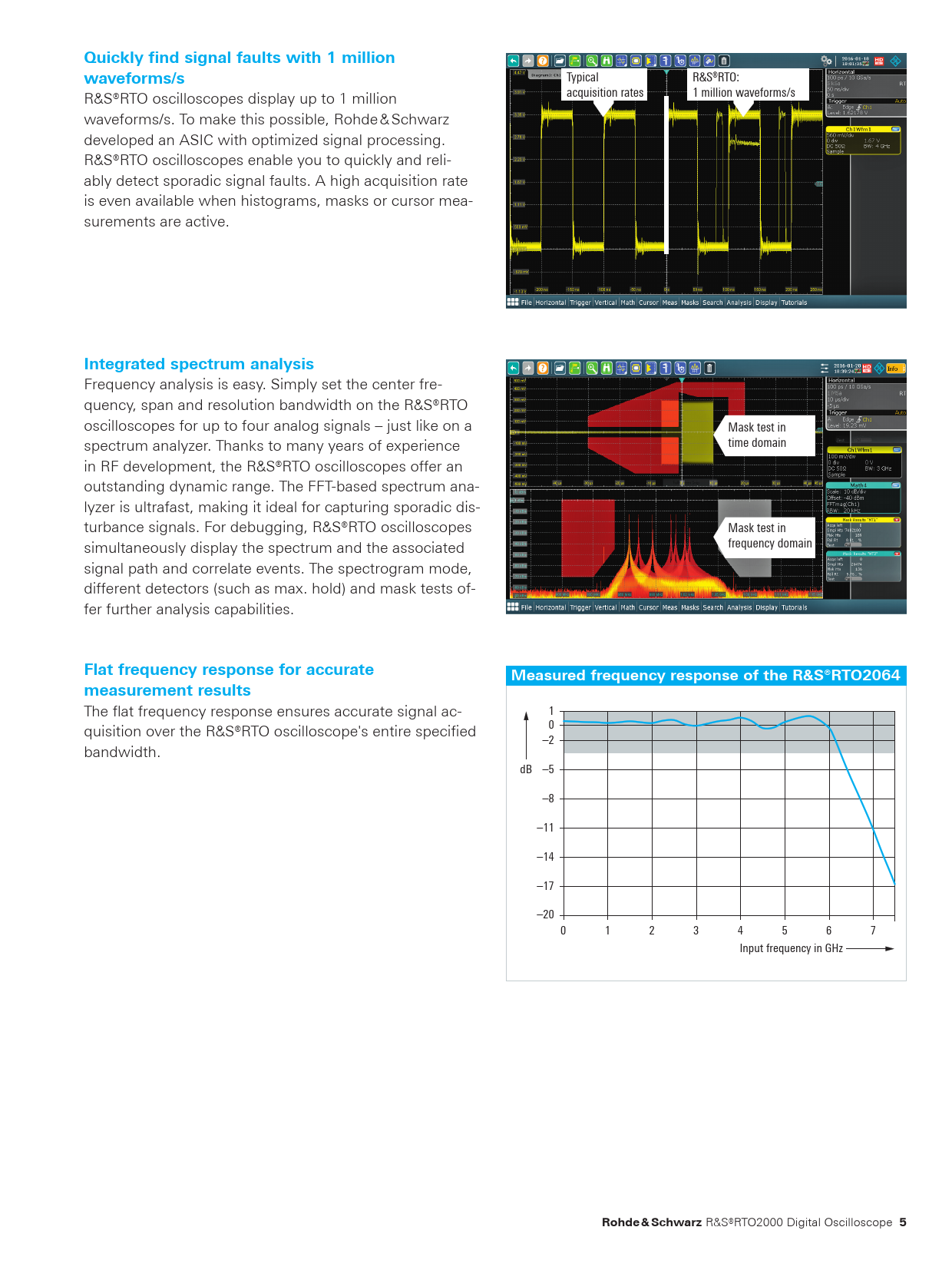

Quickly find signal faults with 1 million waveforms/s
Typical R&S®RTO: acquisition rates 1 million waveforms/s R&S®RTO oscilloscopes display up to 1 million waveforms/s. To make this possible, Rohde & Schwarz developed an ASIC with optimized signal processing. R&S®RTO oscilloscopes enable you to quickly and reli- ably detect sporadic signal faults. A high acquisition rate is even available when histograms, masks or cursor mea- surements are active.
Integrated spectrum analysis
Frequency analysis is easy. Simply set the center fre- quency, span and resolution bandwidth on the R&S®RTO oscilloscopes for up to four analog signals – just like on a Mask test in time domain spectrum analyzer. Thanks to many years of experience in RF development, the R&S®RTO oscilloscopes offer an outstanding dynamic range. The FFT-based spectrum ana- lyzer is ultrafast, making it ideal for capturing sporadic dis- turbance signals. For debugging, R&S®RTO oscilloscopes Mask test in frequency domain simultaneously display the spectrum and the associated signal path and correlate events. The spectrogram mode, different detectors (such as max. hold) and mask tests of- fer further analysis capabilities.
Flat frequency response for accurate Measured frequency response of the R&S®RTO2064 measurement results
The flat frequency response ensures accurate signal ac- 1 0 quisition over the R&S®RTO oscilloscope's entire specified –2 bandwidth. dB –5 –8 –11 –14 –17 –20 0 1 2 3 4 5 6 7 Input frequency in GHz
Rohde & Schwarz
R&S®RTO2000 Digital Oscilloscope
5
RTO2000_bro_en_3607-2684-12_v0901.indd 5 23.11.2017 14:54:10
