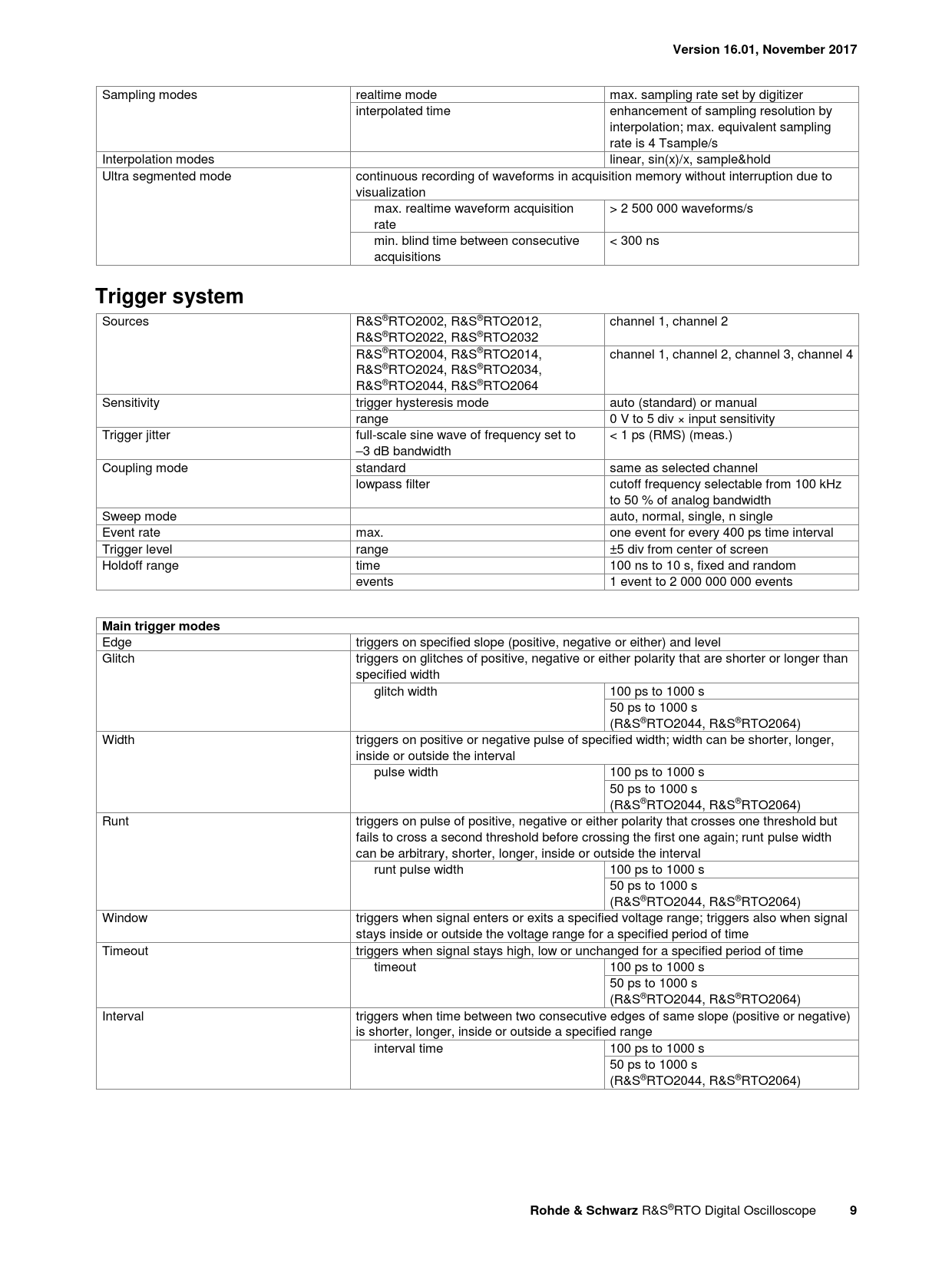

Version 16.01, November 2017. Trigger system. Main trigger modes. Rohde & Schwarz
Text Version of Document
Version 16.01, November 2017
Sampling modes realtime mode max. sampling rate set by digitizer interpolated time enhancement of sampling resolution by interpolation; max. equivalent sampling rate is 4 Tsample/s Interpolation modes linear, sin(x)/x, sample&hold Ultra segmented mode continuous recording of waveforms in acquisition memory without interruption due to visualization max. realtime waveform acquisition > 2 500 000 waveforms/s rate min. blind time between consecutive < 300 ns acquisitions
Trigger system
Sources R&S®RTO2002, R&S®RTO2012, channel 1, channel 2 R&S®RTO2022, R&S®RTO2032 R&S®RTO2004, R&S®RTO2014, channel 1, channel 2, channel 3, channel 4 R&S®RTO2024, R&S®RTO2034, R&S®RTO2044, R&S®RTO2064 Sensitivity trigger hysteresis mode auto (standard) or manual range 0 V to 5 div × input sensitivity Trigger jitter full-scale sine wave of frequency set to < 1 ps (RMS) (meas.) –3 dB bandwidth Coupling mode standard same as selected channel lowpass filter cutoff frequency selectable from 100 kHz to 50 % of analog bandwidth Sweep mode auto, normal, single, n single Event rate max. one event for every 400 ps time interval Trigger level range ±5 div from center of screen Holdoff range time 100 ns to 10 s, fixed and random events 1 event to 2 000 000 000 events
Main trigger modes
Edge triggers on specified slope (positive, negative or either) and level Glitch triggers on glitches of positive, negative or either polarity that are shorter or longer than specified width glitch width 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064) Width triggers on positive or negative pulse of specified width; width can be shorter, longer, inside or outside the interval pulse width 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064) Runt triggers on pulse of positive, negative or either polarity that crosses one threshold but fails to cross a second threshold before crossing the first one again; runt pulse width can be arbitrary, shorter, longer, inside or outside the interval runt pulse width 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064) Window triggers when signal enters or exits a specified voltage range; triggers also when signal stays inside or outside the voltage range for a specified period of time Timeout triggers when signal stays high, low or unchanged for a specified period of time timeout 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064) Interval triggers when time between two consecutive edges of same slope (positive or negative) is shorter, longer, inside or outside a specified range interval time 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064)
