Version 16.01, November 2017

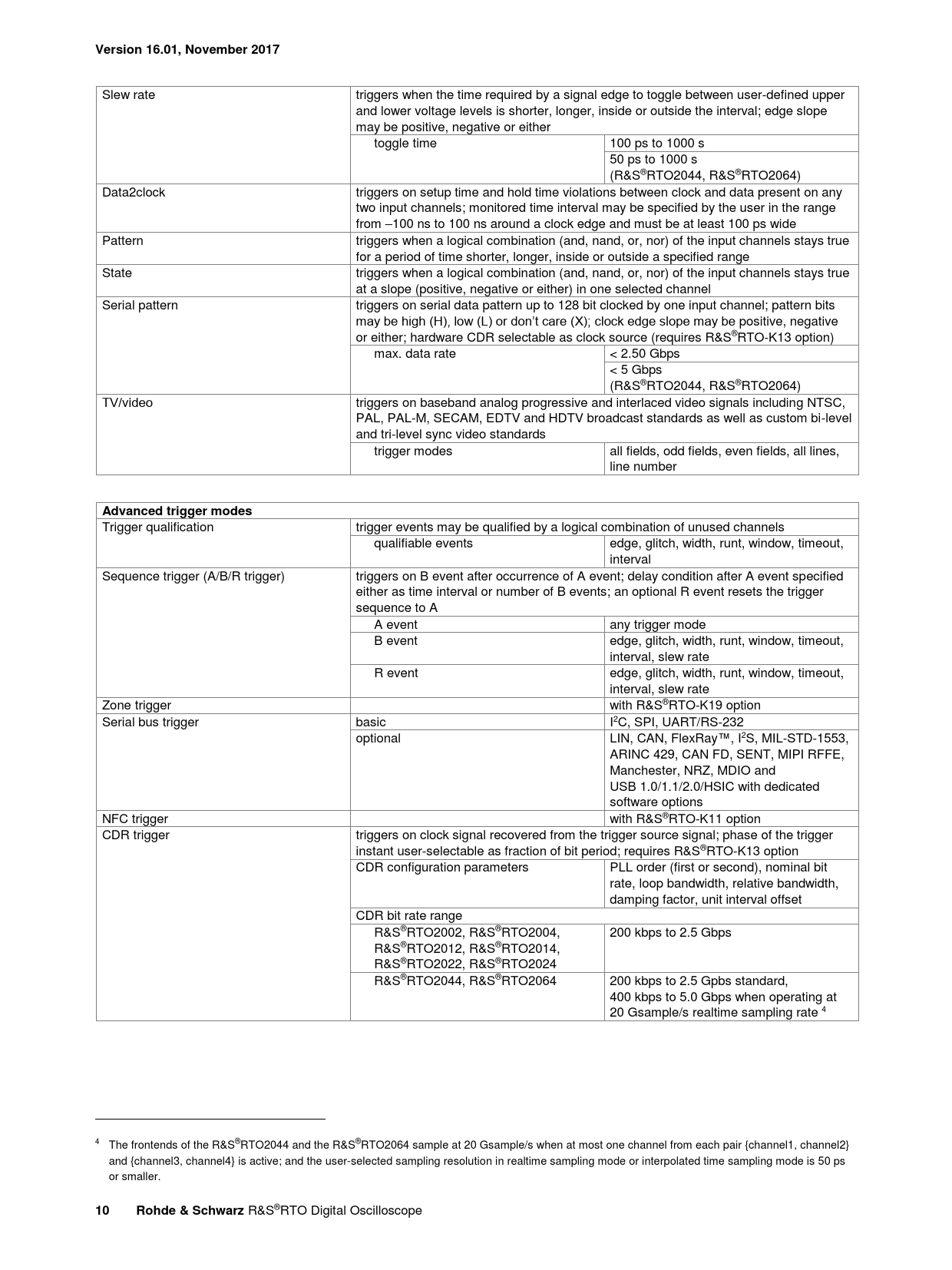

Slew rate triggers when the time required by a signal edge to toggle between user-defined upper and lower voltage levels is shorter, longer, inside or outside the interval; edge slope may be positive, negative or either toggle time 100 ps to 1000 s 50 ps to 1000 s (R&S®RTO2044, R&S®RTO2064) Data2clock triggers on setup time and hold time violations between clock and data present on any two input channels; monitored time interval may be specified by the user in the range from –100 ns to 100 ns around a clock edge and must be at least 100 ps wide Pattern triggers when a logical combination (and, nand, or, nor) of the input channels stays true for a period of time shorter, longer, inside or outside a specified range State triggers when a logical combination (and, nand, or, nor) of the input channels stays true at a slope (positive, negative or either) in one selected channel Serial pattern triggers on serial data pattern up to 128 bit clocked by one input channel; pattern bits may be high (H), low (L) or don’t care (X); clock edge slope may be positive, negative or either; hardware CDR selectable as clock source (requires R&S®RTO-K13 option) max. data rate < 2.50 Gbps < 5 Gbps (R&S®RTO2044, R&S®RTO2064) TV/video triggers on baseband analog progressive and interlaced video signals including NTSC, PAL, PAL-M, SECAM, EDTV and HDTV broadcast standards as well as custom bi-level and tri-level sync video standards trigger modes all fields, odd fields, even fields, all lines, line number
Advanced trigger modes
Trigger qualification trigger events may be qualified by a logical combination of unused channels qualifiable events edge, glitch, width, runt, window, timeout, interval Sequence trigger (A/B/R trigger) triggers on B event after occurrence of A event; delay condition after A event specified either as time interval or number of B events; an optional R event resets the trigger sequence to A A event any trigger mode B event edge, glitch, width, runt, window, timeout, interval, slew rate R event edge, glitch, width, runt, window, timeout, interval, slew rate Zone trigger with R&S®RTO-K19 option Serial bus trigger basic I2C, SPI, UART/RS-232 optional LIN, CAN, FlexRay™, I2S, MIL-STD-1553, ARINC 429, CAN FD, SENT, MIPI RFFE, Manchester, NRZ, MDIO and USB 1.0/1.1/2.0/HSIC with dedicated software options NFC trigger with R&S®RTO-K11 option CDR trigger triggers on clock signal recovered from the trigger source signal; phase of the trigger instant user-selectable as fraction of bit period; requires R&S®RTO-K13 option CDR configuration parameters PLL order (first or second), nominal bit rate, loop bandwidth, relative bandwidth, damping factor, unit interval offset CDR bit rate range R&S®RTO2002, R&S®RTO2004, 200 kbps to 2.5 Gbps R&S®RTO2012, R&S®RTO2014, R&S®RTO2022, R&S®RTO2024 R&S®RTO2044, R&S®RTO2064 200 kbps to 2.5 Gpbs standard, 400 kbps to 5.0 Gbps when operating at 20 Gsample/s realtime sampling rate 4 4 The frontends of the R&S®RTO2044 and the R&S®RTO2064 sample at 20 Gsample/s when at most one channel from each pair {channel1, channel2} and {channel3, channel4} is active; and the user-selected sampling resolution in realtime sampling mode or interpolated time sampling mode is 50 ps or smaller.
10 Rohde & Schwarz
R&S®RTO Digital Oscilloscope
