Test fixture set for fast measurements. Signal quality board. Load board for hub tests. Accessories for quick startup
Text Version of Document
R&S®RT-ZF1
Test fixture set for fast measurements

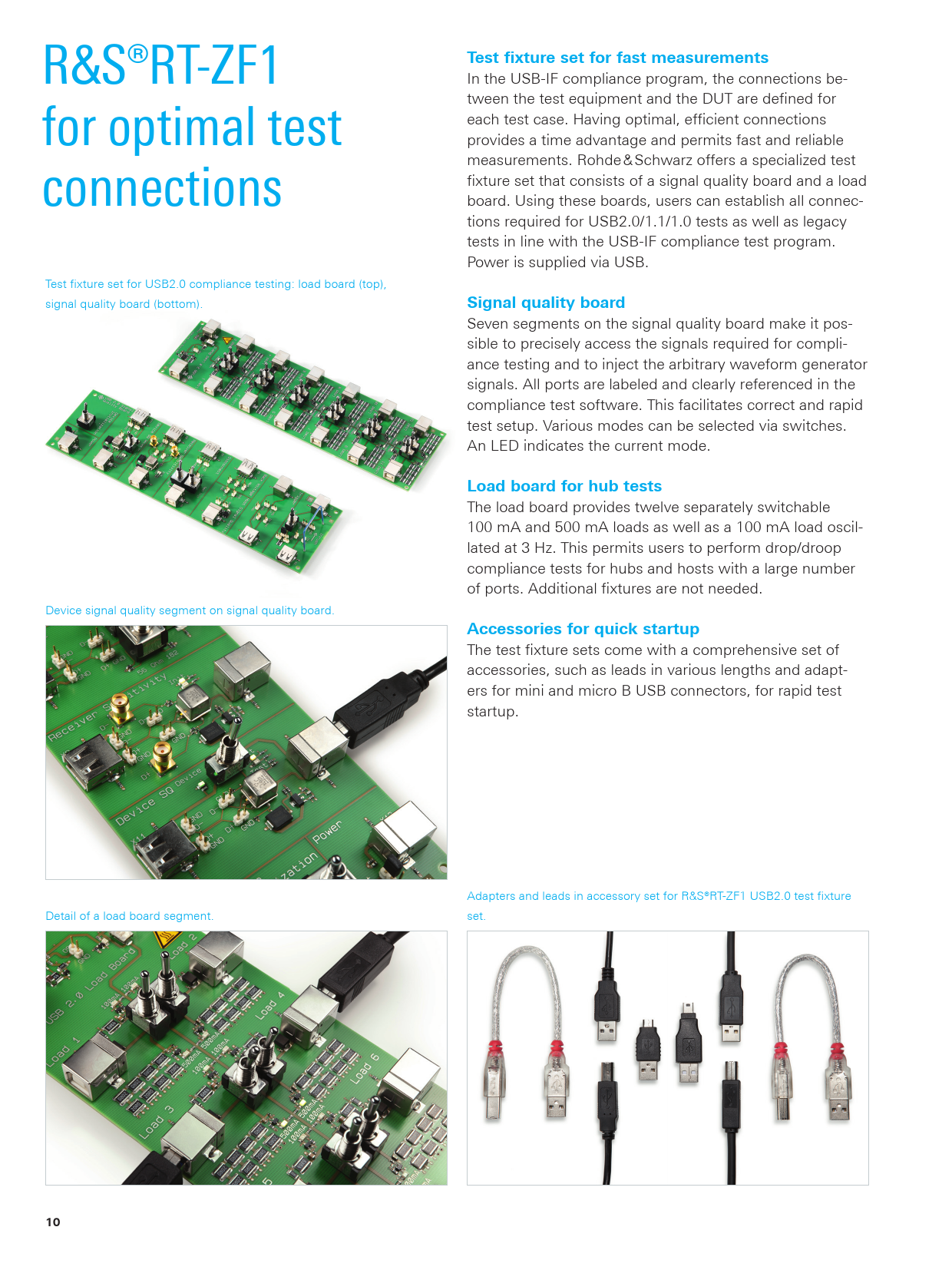

In the USB-IF compliance program, the connections be- for optimal test tween the test equipment and the DUT are defined for each test case. Having optimal, efficient connections provides a time advantage and permits fast and reliable connections measurements. Rohde & Schwarz offers a specialized test fixture set that consists of a signal quality board and a load board. Using these boards, users can establish all connec- tions required for USB2.0/1.1/1.0 tests as well as legacy tests in line with the USB-IF compliance test program. Power is supplied via USB. Test fixture set for USB2.0 compliance testing: load board (top), signal quality board (bottom).
Signal quality board
Seven segments on the signal quality board make it pos- sible to precisely access the signals required for compli- ance testing and to inject the arbitrary waveform generator signals. All ports are labeled and clearly referenced in the compliance test software. This facilitates correct and rapid test setup. Various modes can be selected via switches. An LED indicates the current mode.
Load board for hub tests
The load board provides twelve separately switchable 100 mA and 500 mA loads as well as a 100 mA load oscil- lated at 3 Hz. This permits users to perform drop/droop compliance tests for hubs and hosts with a large number of ports. Additional fixtures are not needed. Device signal quality segment on signal quality board.
Accessories for quick startup
The test fixture sets come with a comprehensive set of accessories, such as leads in various lengths and adapt- ers for mini and micro B USB connectors, for rapid test startup. Adapters and leads in accessory set for R&S
®
RT-ZF1 USB2.0 test fixture Detail of a load board segment. set.
