Complete, versatile test documentation. Quick overview plus detailed information. High Speed USB Device Test Report
Text Version of Document
Clear and
Complete, versatile test documentation
Complete documentation of test results is essential in comprehensive test compliance testing. R&S®ScopeSuite offers users an ex- tensive range of documentation functions. For example, measurement details and oscilloscope screenshots can be documentation included in the result documentation. Available output for- mats are PDF, MS Word and HTML.
Quick overview plus detailed information

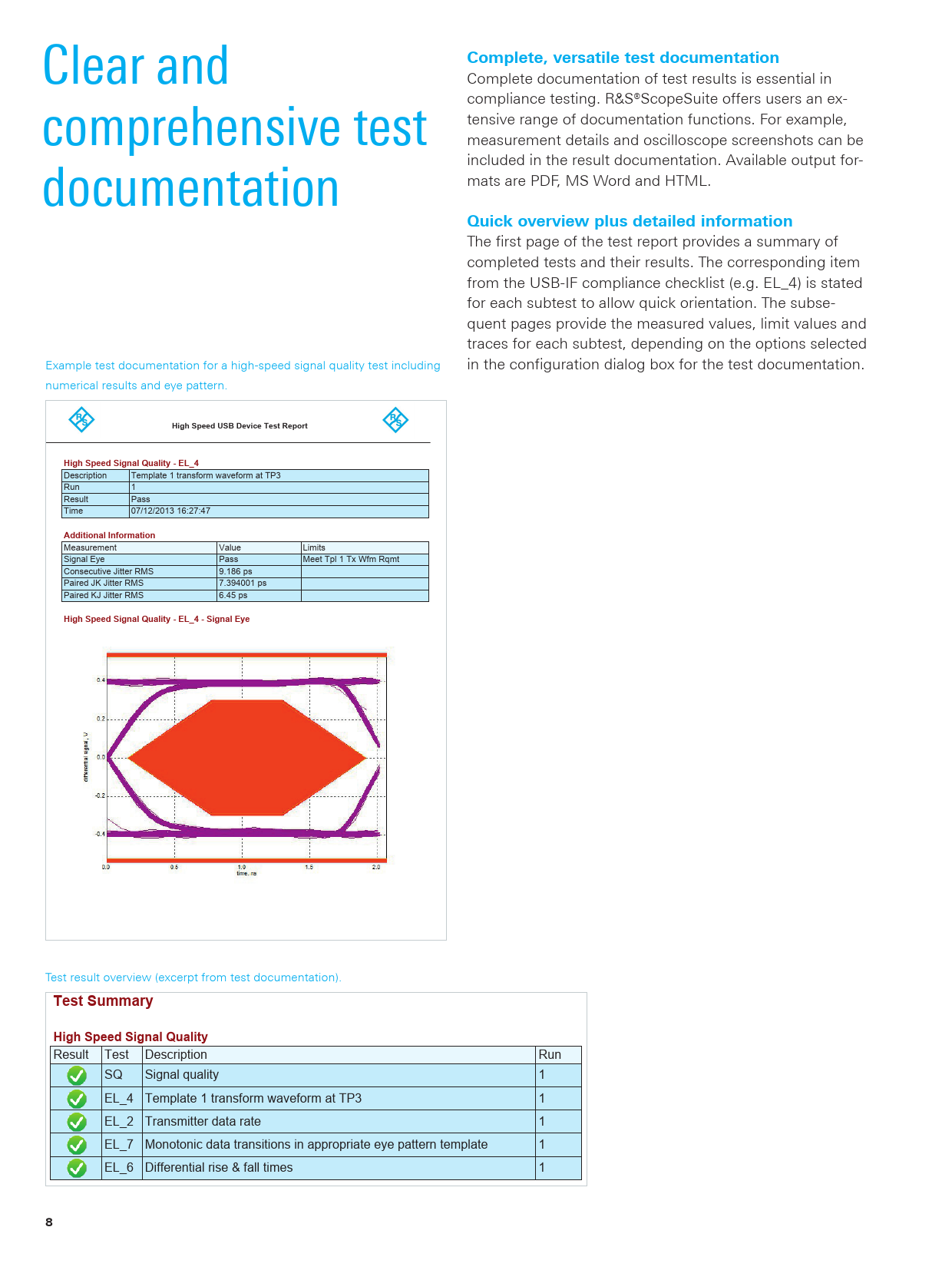

The first page of the test report provides a summary of completed tests and their results. The corresponding item from the USB-IF compliance checklist (e.g. EL_4) is stated for each subtest to allow quick orientation. The subse- quent pages provide the measured values, limit values and traces for each subtest, depending on the options selected Example test documentation for a high-speed signal quality test including in the configuration dialog box for the test documentation. numerical results and eye pattern.
High Speed USB Device Test Report High Speed Signal Quality - EL_4
Description Template 1 transform waveform at TP3 Run 1 Result Pass Time 07/12/2013 16:27:47
Additional Information
Measurement Value Limits Signal Eye Pass Meet Tpl 1 Tx Wfm Rqmt Consecutive Jitter RMS 9.186 ps Paired JK Jitter RMS 7.394001 ps Paired KJ Jitter RMS 6.45 ps
High Speed Signal Quality - EL_4 - Signal Eye High Speed USB Device Test Report HS USB Device Test Report General Information
Device LogLink Hub User -- Site -- Date 12.07.2013 Temperature -- Instrument RTO 1024 Scope Suite Version 1.3.2 Oscilloscope FW Version RTO 1024_1.50.2.4 Test Fixture Rohde & Schwarz USB Device Type Near End USB-IF Testtool Version -- - Page 3/4 - 12.07.2013 Comments -- Test result overview (excerpt from test documentation).
Test Summary High Speed Signal Quality
Result Test Description Run SQ Signal quality 1 EL_4 Template 1 transform waveform at TP3 1 EL_2 Transmitter data rate 1 EL_7 Monotonic data transitions in appropriate eye pattern template 1 EL_6 Differential rise & fall times 1
