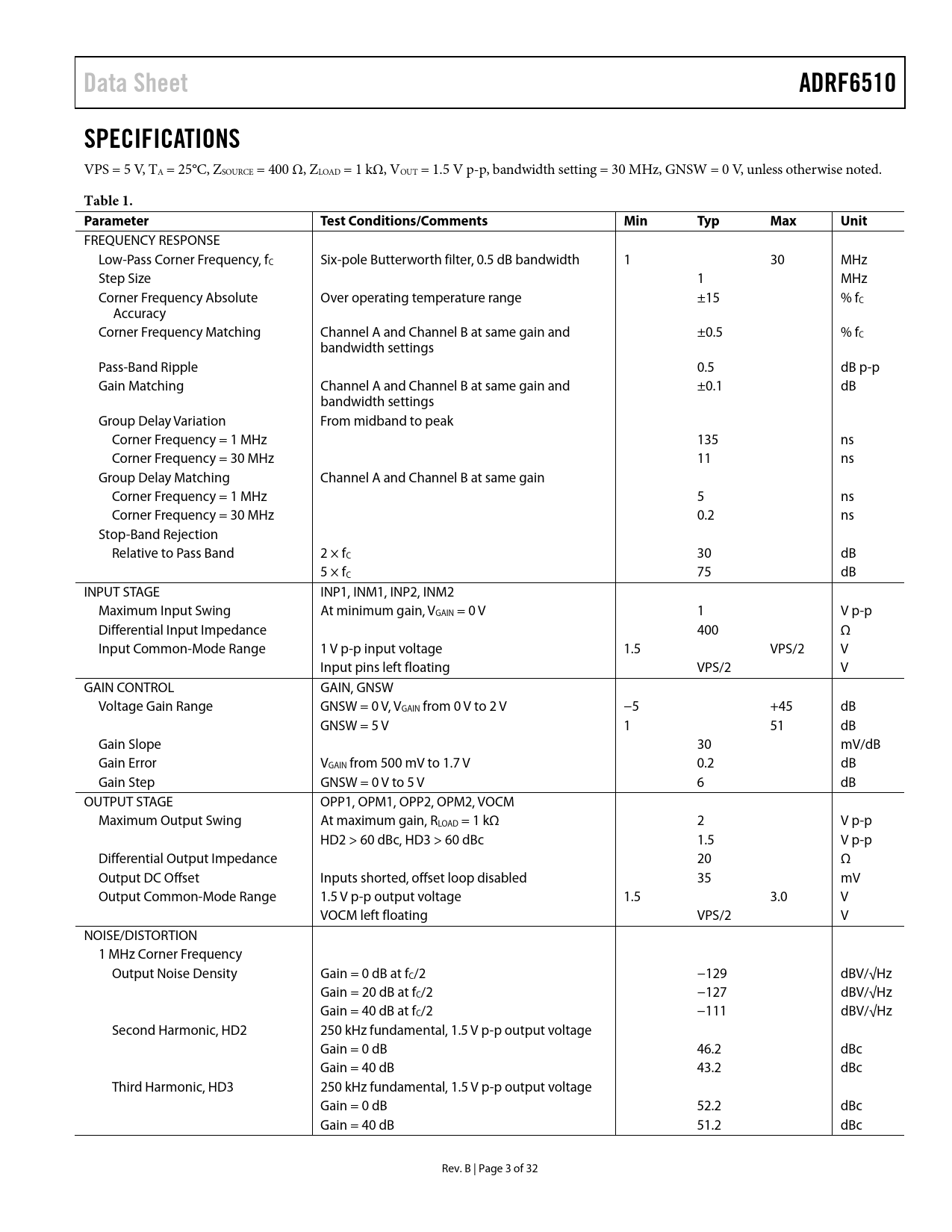

Data Sheet ADRF6510 SPECIFICATIONS
VPS = 5 V, TA = 25°C, ZSOURCE = 400 Ω, ZLOAD = 1 kΩ, VOUT = 1.5 V p-p, bandwidth setting = 30 MHz, GNSW = 0 V, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
