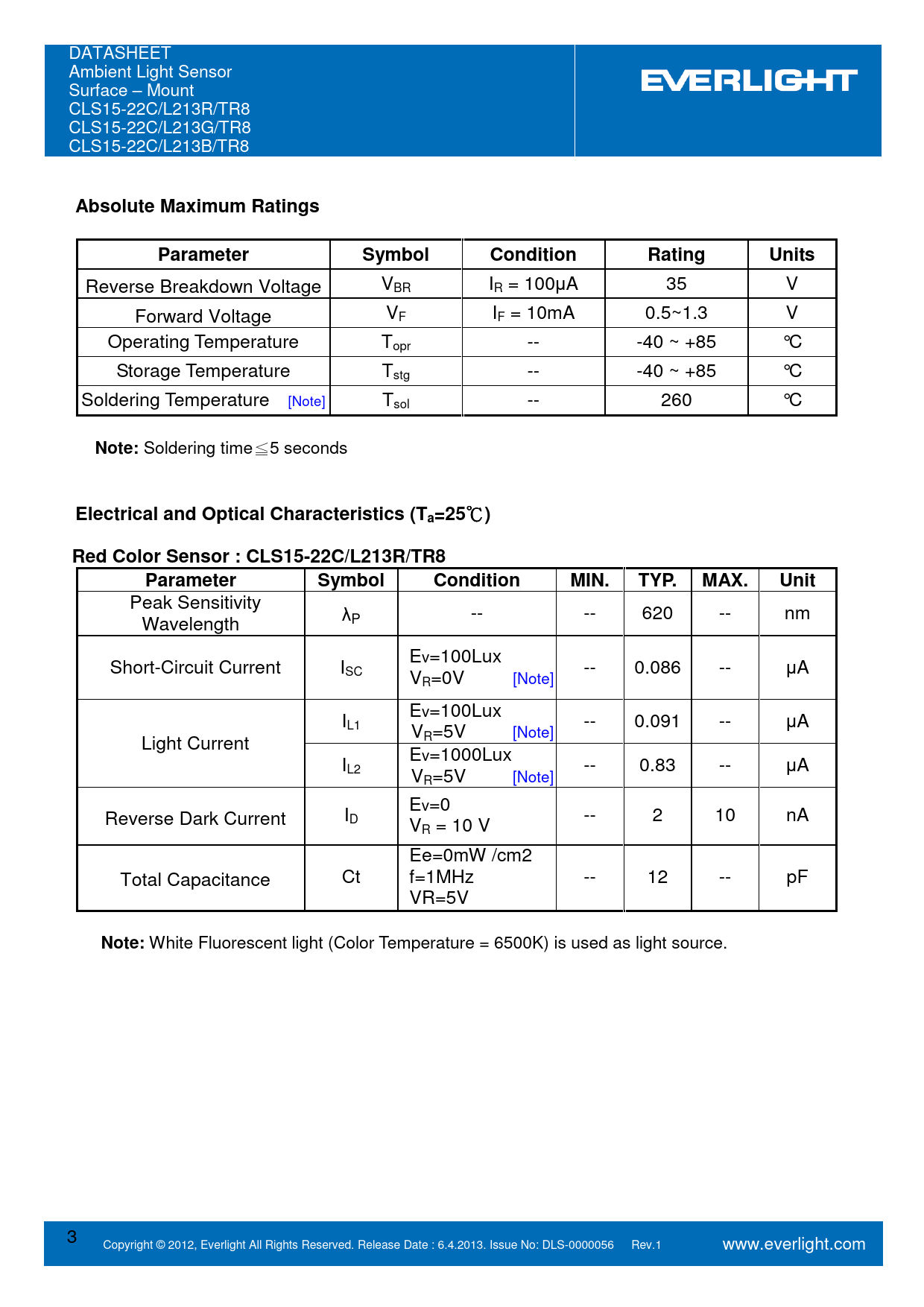

DATASHEET Ambient Light Sensor Surface – Mount CLS15-22C/L213R/TR8 CLS15-22C/L213G/TR8 CLS15-22C/L213B/TR8
Absolute Maximum Ratings Parameter Symbol Condition Rating Units
Reverse Breakdown Voltage VBR IR = 100µA 35 V Forward Voltage VF IF = 10mA 0.5~1.3 V Operating Temperature Topr -- -40 ~ +85 °C Storage Temperature Tstg -- -40 ~ +85 °C Soldering Temperature [Note] Tsol -- 260 °C
Note:
Soldering time≦5 seconds
Electrical and Optical Characteristics (Ta=25
℃
) Red Color Sensor : CLS15-22C/L213R/TR8 Parameter Symbol Condition MIN. TYP. MAX. Unit
Peak Sensitivity λ Wavelength P -- -- 620 -- nm Ev=100Lux Short-Circuit Current ISC -- 0.086 -- µA VR=0V [Note] Ev=100Lux IL1 -- 0.091 -- µA V Light Current R=5V [Note] Ev=1000Lux IL2 -- 0.83 -- µA VR=5V [Note] Ev=0 Reverse Dark Current ID -- 2 10 nA VR = 10 V Ee=0mW /cm2 Total Capacitance Ct f=1MHz -- 12 -- pF VR=5V
Note:
White Fluorescent light (Color Temperature = 6500K) is used as light source.
