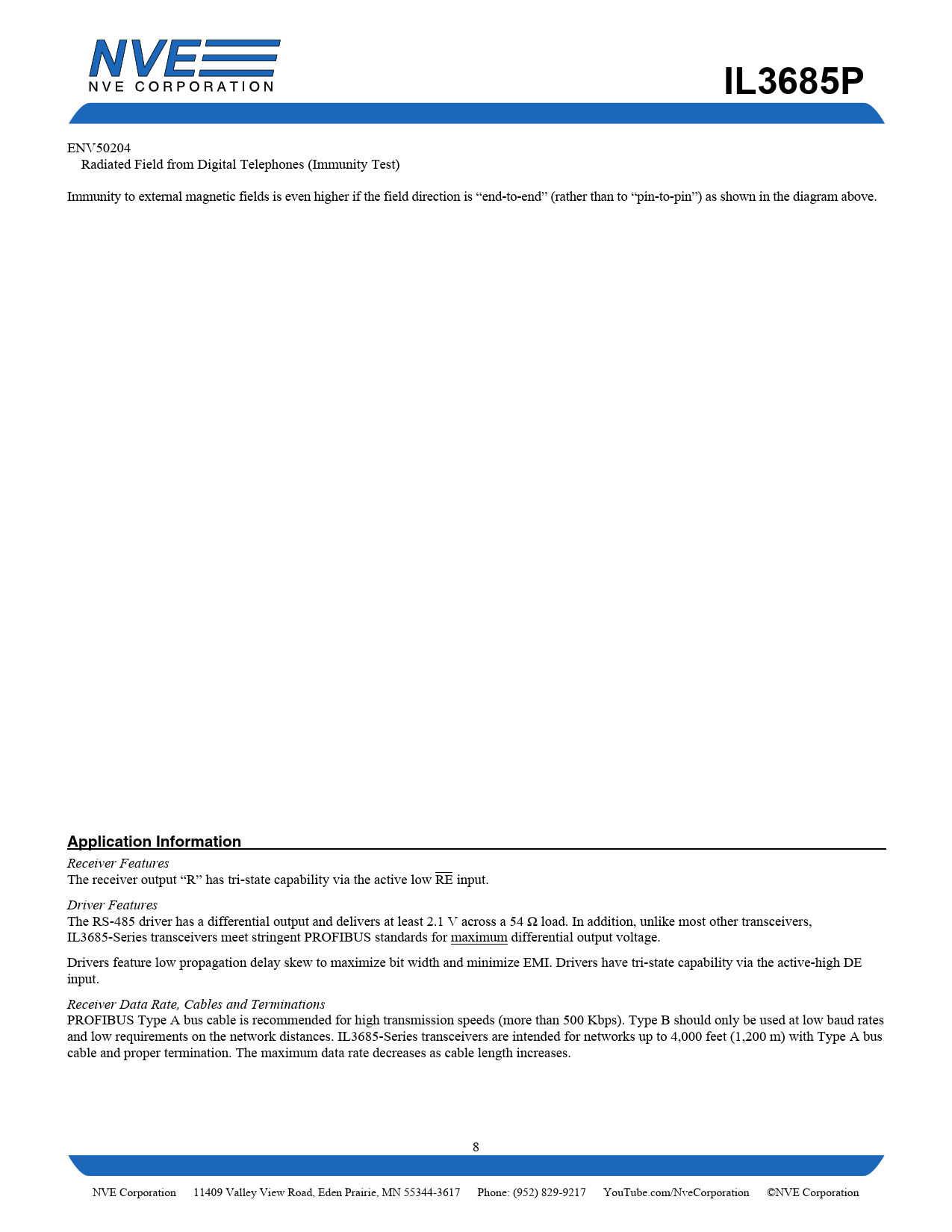

IL3685P. Application Information
Model Line for this Datasheet
Text Version of Document
IL3685P
ENV50204 Radiated Field from Digital Telephones (Immunity Test) Immunity to external magnetic fields is even higher if the field direction is “end-to-end” (rather than to “pin-to-pin”) as shown in the diagram above.
Application Information
Receiver Features The receiver output “R” has tri-state capability via the active low RE input. Driver Features The RS-485 driver has a differential output and delivers at least 2.1 V across a 54 Ω load. In addition, unlike most other transceivers, IL3685-Series transceivers meet stringent PROFIBUS standards for maximum differential output voltage. Drivers feature low propagation delay skew to maximize bit width and minimize EMI. Drivers have tri-state capability via the active-high DE input. Receiver Data Rate, Cables and Terminations PROFIBUS Type A bus cable is recommended for high transmission speeds (more than 500 Kbps). Type B should only be used at low baud rates and low requirements on the network distances. IL3685-Series transceivers are intended for networks up to 4,000 feet (1,200 m) with Type A bus cable and proper termination. The maximum data rate decreases as cable length increases. 8 NVE Corporation 11409 Valley View Road, Eden Prairie, MN 55344-3617 Phone: (952) 829-9217 YouTube.com/NveCorporation ©NVE Corporation
