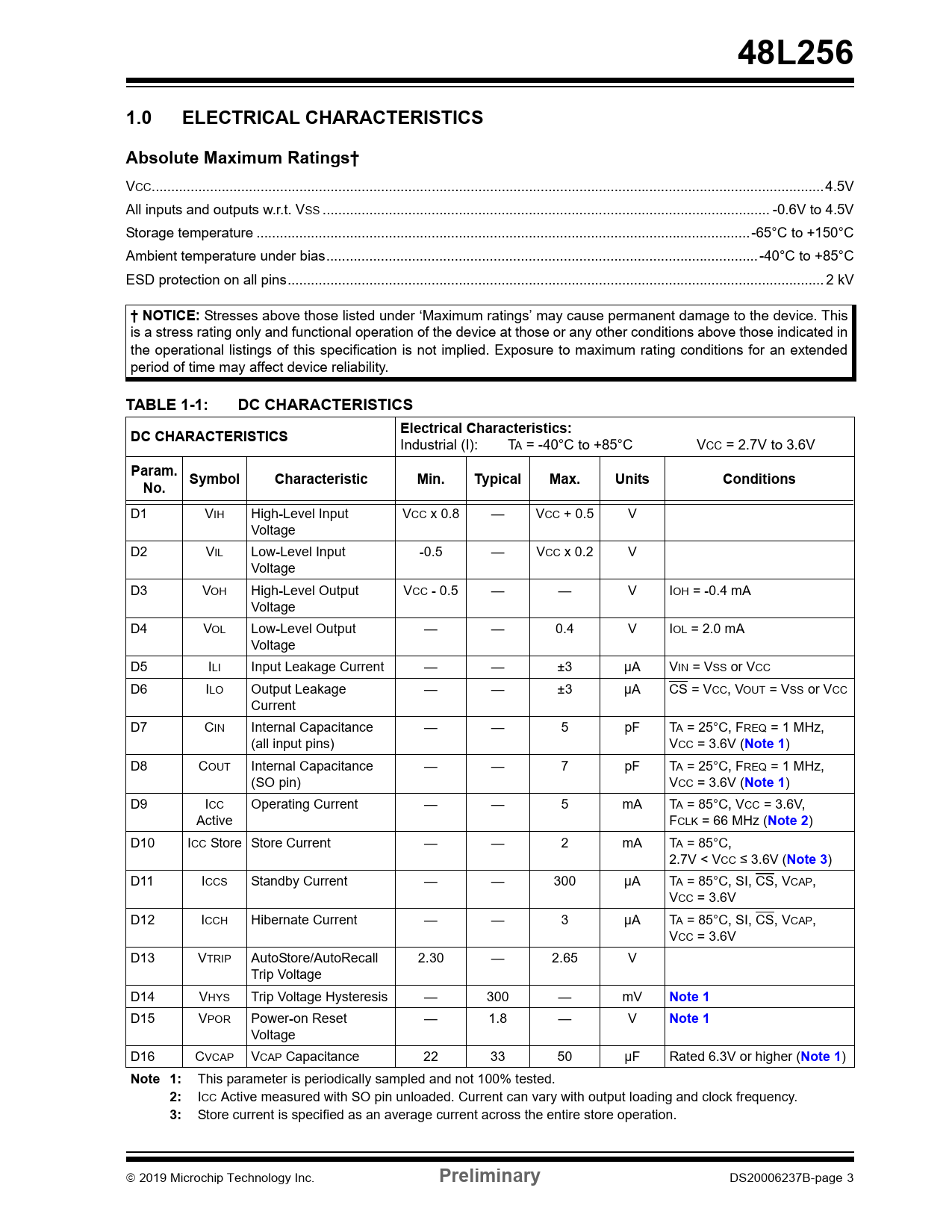

48L256 1.0 ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings†
VCC...4.5V All inputs and outputs w.r.t. VSS ... -0.6V to 4.5V Storage temperature ...-65°C to +150°C Ambient temperature under bias...-40°C to +85°C ESD protection on all pins.. 2 kV
† NOTICE:
Stresses above those listed under ‘Maximum ratings’ may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for an extended period of time may affect device reliability.
TABLE 1-1: DC CHARACTERISTICS Electrical Characteristics: DC CHARACTERISTICS
Industrial (I): TA = -40°C to +85°C VCC = 2.7V to 3.6V
Param. Symbol Characteristic Min. Typical Max. Units Conditions No.
D1 VIH High-Level Input VCC x 0.8 — VCC + 0.5 V Voltage D2 VIL Low-Level Input -0.5 — VCC x 0.2 V Voltage D3 VOH High-Level Output VCC - 0.5 — — V IOH = -0.4 mA Voltage D4 VOL Low-Level Output — — 0.4 V IOL = 2.0 mA Voltage D5 ILI Input Leakage Current — — ±3 μA VIN = VSS or VCC D6 ILO Output Leakage — — ±3 μA CS = VCC, VOUT = VSS or VCC Current D7 CIN Internal Capacitance — — 5 pF TA = 25°C, FREQ = 1 MHz, (all input pins) VCC = 3.6V (
Note 1
) D8 COUT Internal Capacitance — — 7 pF TA = 25°C, FREQ = 1 MHz, (SO pin) VCC = 3.6V (
Note 1
) D9 ICC Operating Current — — 5 mA TA = 85°C, VCC = 3.6V, Active FCLK = 66 MHz (
Note 2
) D10 ICC Store Store Current — — 2 mA TA = 85°C, 2.7V < VCC ≤ 3.6V (
Note 3
) D11 ICCS Standby Current — — 300 μA TA = 85°C, SI, CS, VCAP, VCC = 3.6V D12 ICCH Hibernate Current — — 3 μA TA = 85°C, SI, CS, VCAP, VCC = 3.6V D13 VTRIP AutoStore/AutoRecall 2.30 — 2.65 V Trip Voltage D14 VHYS Trip Voltage Hysteresis — 300 — mV
Note 1
D15 VPOR Power-on Reset — 1.8 — V
Note 1
Voltage D16 CVCAP VCAP Capacitance 22 33 50 μF Rated 6.3V or higher (
Note 1
)
Note 1:
This parameter is periodically sampled and not 100% tested.
2:
ICC Active measured with SO pin unloaded. Current can vary with output loading and clock frequency.
3:
Store current is specified as an average current across the entire store operation. 2019 Microchip Technology Inc.
