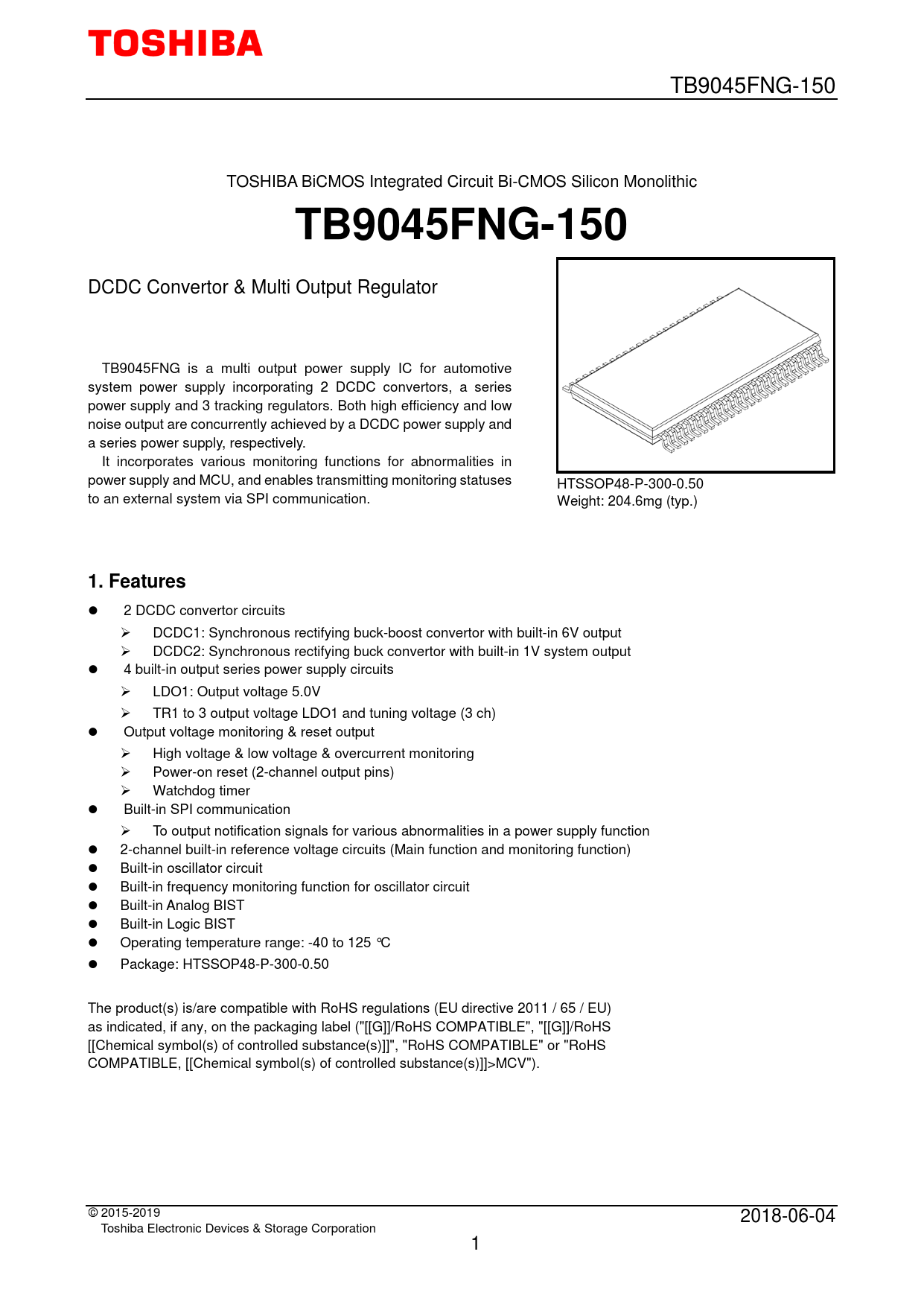

TB9045FNG-150 TOSHIBA BiCMOS Integrated Circuit Bi-CMOS Silicon Monolithic
TB9045FNG-150
DCDC Convertor & Multi Output Regulator TB9045FNG is a multi output power supply IC for automotive system power supply incorporating 2 DCDC convertors, a series power supply and 3 tracking regulators. Both high efficiency and low noise output are concurrently achieved by a DCDC power supply and a series power supply, respectively. It incorporates various monitoring functions for abnormalities in power supply and MCU, and enables transmitting monitoring statuses HTSSOP48-P-300-0.50 to an external system via SPI communication. Weight: 204.6mg (typ.)
1. Features
2 DCDC convertor circuits  DCDC1: Synchronous rectifying buck-boost convertor with built-in 6V output  DCDC2: Synchronous rectifying buck convertor with built-in 1V system output 4 built-in output series power supply circuits  LDO1: Output voltage 5.0V  TR1 to 3 output voltage LDO1 and tuning voltage (3 ch) Output voltage monitoring & reset output  High voltage & low voltage & overcurrent monitoring  Power-on reset (2-channel output pins)  Watchdog timer Built-in SPI communication  To output notification signals for various abnormalities in a power supply function 2-channel built-in reference voltage circuits (Main function and monitoring function) Built-in oscillator circuit Built-in frequency monitoring function for oscillator circuit Built-in Analog BIST Built-in Logic BIST Operating temperature range: -40 to 125 °C Package: HTSSOP48-P-300-0.50 The product(s) is/are compatible with RoHS regulations (EU directive 2011 / 65 / EU) as indicated, if any, on the packaging label ("[[G]]/RoHS COMPATIBLE", "[[G]]/RoHS [[Chemical symbol(s) of controlled substance(s)]]", "RoHS COMPATIBLE" or "RoHS COMPATIBLE, [[Chemical symbol(s) of controlled substance(s)]]>MCV"). © 2015-2019 2018-06-04 Toshiba Electronic Devices & Storage Corporation 1
