Datasheet PSMN0R9-25YLC (Nexperia) - 9
| Manufacturer | Nexperia |
| Description | N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology |
| Pages / Page | 15 / 9 — Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in … |
| Revision | 02042018 |
| File Format / Size | PDF / 933 Kb |
| Document Language | English |
Nexperia. PSMN0R9-25YLC. N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology
Model Line for this Datasheet
Text Version of Document
Nexperia PSMN0R9-25YLC N-channel 25 V 0.99 mΩ logic level MOSFET in LFPAK using NextPower technology

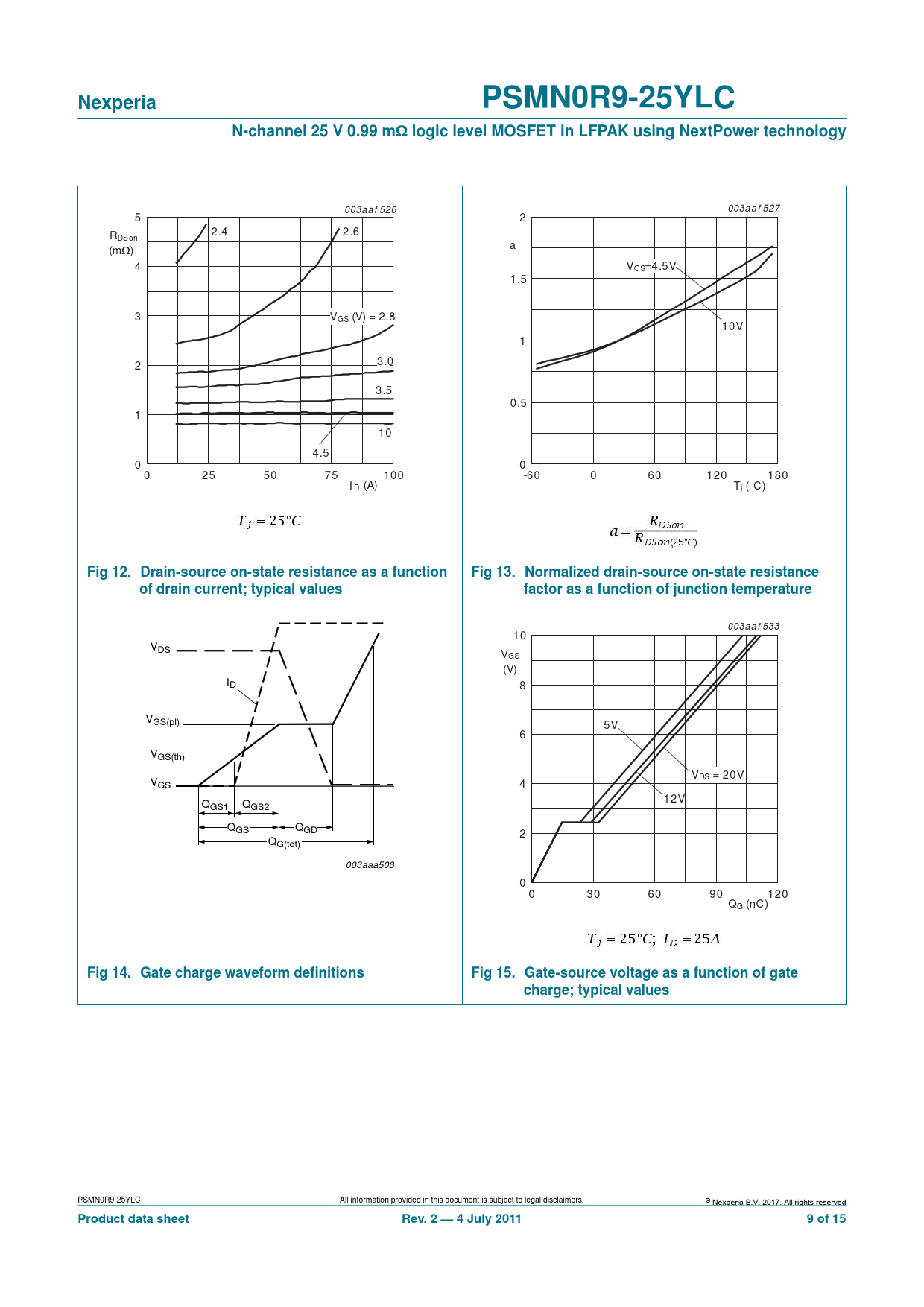

003a a f 526 003a a f 527 5 2 R 2.4 2.6 DS on a (m) 4 VGS=4.5V 1.5 3 VGS (V) = 2.8 10V 1 2 3.0 3.5 0.5 1 10 4.5 0 0 0 25 50 75 100 -60 0 60 120 180 I D (A) Tj ( C)
Fig 12. Drain-source on-state resistance as a function Fig 13. Normalized drain-source on-state resistance of drain current; typical values factor as a function of junction temperature
003a a f 533 10 VDS VGS (V) ID 8 VGS(pl) 5V 6 VGS(th) VDS = 20V VGS 4 Q 12V GS1 QGS2 Q Q GS GD 2 QG(tot) 003aaa508 0 0 30 60 90 120 QG (nC)
Fig 14. Gate charge waveform definitions Fig 15. Gate-source voltage as a function of gate charge; typical values
