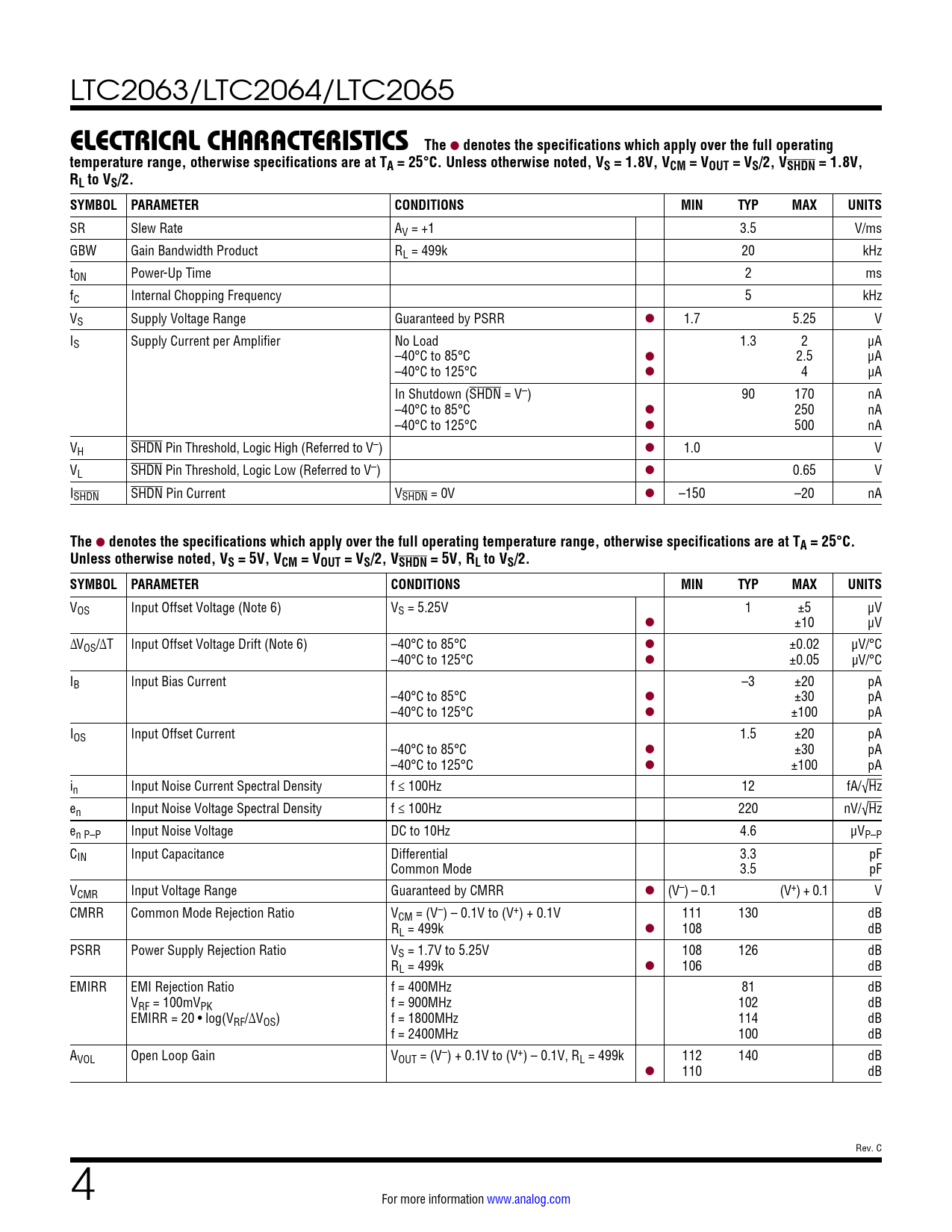

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF
Text Version of Document
LTC2063/LTC2064/LTC2065
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VS = 1.8V, VCM = VOUT = VS/2, VSHDN = 1.8V, RL to VS/2. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate AV = +1 3.5 V/ms GBW Gain Bandwidth Product RL = 499k 20 kHz tON Power-Up Time 2 ms fC Internal Chopping Frequency 5 kHz VS Supply Voltage Range Guaranteed by PSRR l 1.7 5.25 V IS Supply Current per Amplifier No Load 1.3 2 μA –40°C to 85°C l 2.5 μA –40°C to 125°C l 4 µA In Shutdown (SHDN = V–) 90 170 nA –40°C to 85°C l 250 nA –40°C to 125°C l 500 nA VH SHDN Pin Threshold, Logic High (Referred to V–) l 1.0 V VL SHDN Pin Threshold, Logic Low (Referred to V–) l 0.65 V ISHDN SHDN Pin Current VSHDN = 0V l –150 –20 nA
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VS = 5V, VCM = VOUT = VS/2, VSHDN = 5V, RL to VS/2. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 6) VS = 5.25V 1 ±5 μV l ±10 μV ΔVOS/ΔT Input Offset Voltage Drift (Note 6) –40°C to 85°C l ±0.02 μV/°C –40°C to 125°C l ±0.05 µV/°C IB Input Bias Current –3 ±20 pA –40°C to 85°C l ±30 pA –40°C to 125°C l ±100 pA IOS Input Offset Current 1.5 ±20 pA –40°C to 85°C l ±30 pA –40°C to 125°C l ±100 pA in Input Noise Current Spectral Density f ≤ 100Hz 12 fA/√Hz en Input Noise Voltage Spectral Density f ≤ 100Hz 220 nV/√Hz en P–P Input Noise Voltage DC to 10Hz 4.6 μVP–P CIN Input Capacitance Differential 3.3 pF Common Mode 3.5 pF VCMR Input Voltage Range Guaranteed by CMRR l (V–) – 0.1 (V+) + 0.1 V CMRR Common Mode Rejection Ratio VCM = (V–) – 0.1V to (V+) + 0.1V 111 130 dB RL = 499k l 108 dB PSRR Power Supply Rejection Ratio VS = 1.7V to 5.25V 108 126 dB RL = 499k l 106 dB EMIRR EMI Rejection Ratio f = 400MHz 81 dB VRF = 100mVPK f = 900MHz 102 dB EMIRR = 20 • log(VRF/ΔVOS) f = 1800MHz 114 dB f = 2400MHz 100 dB AVOL Open Loop Gain VOUT = (V–) + 0.1V to (V+) – 0.1V, RL = 499k 112 140 dB l 110 dB Rev. C 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
