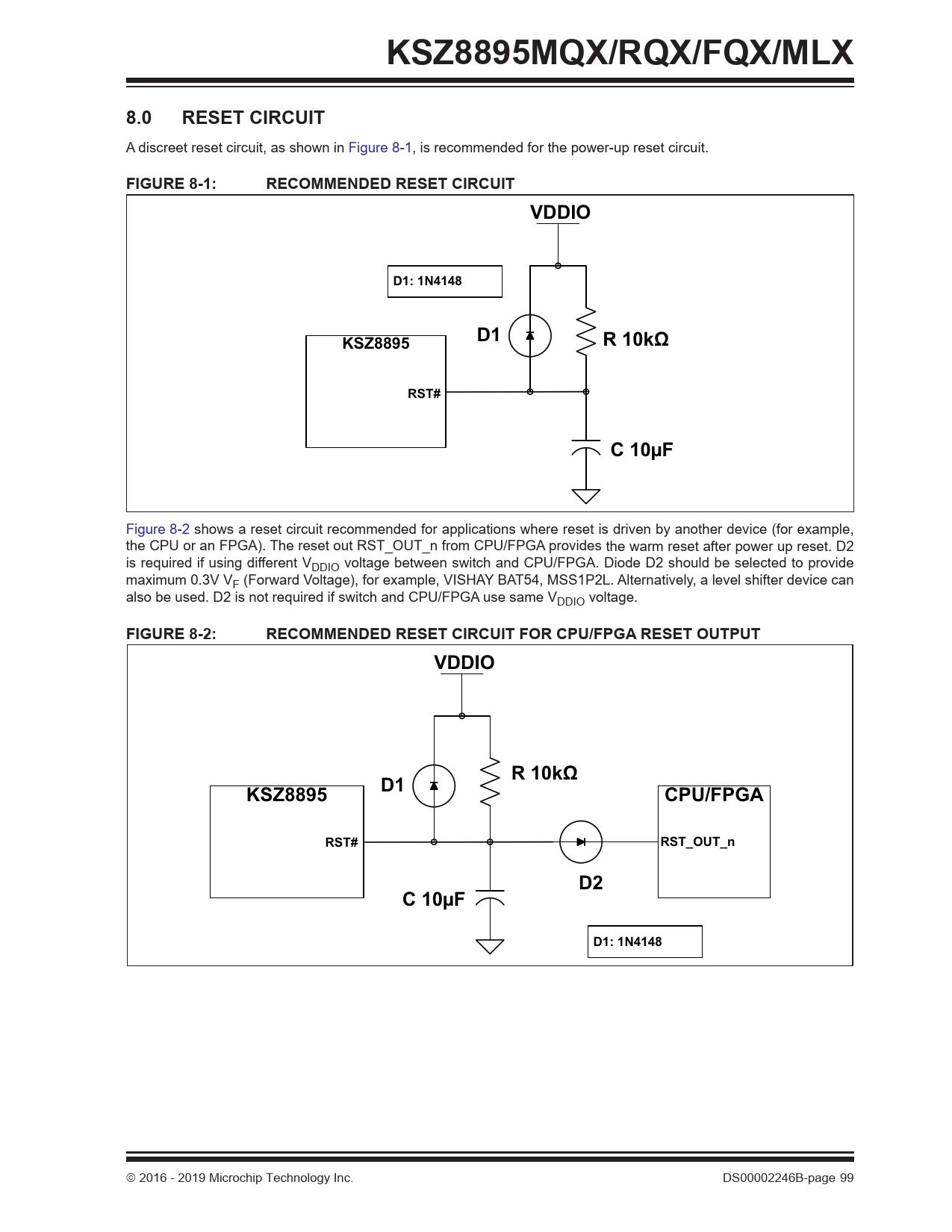

KSZ8895MQX/RQX/FQX/MLX 8.0 RESET CIRCUIT
A discreet reset circuit, as shown in Figure 8-1, is recommended for the power-up reset circuit.
FIGURE 8-1: RECOMMENDED RESET CIRCUIT VDDIO D1: 1N4148 KSZ8895 D1 5Nȍ RST# C 10μF
Figure 8-2 shows a reset circuit recommended for applications where reset is driven by another device (for example, the CPU or an FPGA). The reset out RST_OUT_n from CPU/FPGA provides the warm reset after power up reset. D2 is required if using different VDDIO voltage between switch and CPU/FPGA. Diode D2 should be selected to provide maximum 0.3V VF (Forward Voltage), for example, VISHAY BAT54, MSS1P2L. Alternatively, a level shifter device can also be used. D2 is not required if switch and CPU/FPGA use same VDDIO voltage.
FIGURE 8-2: RECOMMENDED RESET CIRCUIT FOR CPU/FPGA RESET OUTPUT VDDIO 5Nȍ KSZ8895 D1 CPU/FPGA RST# RST_OUT_n D2 C 10μF D1: 1N4148
2016 - 2019 Microchip Technology Inc. DS00002246B-page 99 Document Outline 1.0 Introduction 1.1 General Description 2.0 Pin Description and Configuration 3.0 Functional Description 3.1 Physical Layer Transceiver 3.2 Power 3.3 Power Management 3.4 Switch Core 3.5 Advanced Functionality 3.6 MII Management (MIIM) Interface 3.7 Serial Management Interface (SMI) 4.0 Register Descriptions 4.1 Global Registers 4.2 Port Registers 4.3 Advanced Control Registers 4.4 Static MAC Address Table 4.5 VLAN Table 4.6 Dynamic MAC Address Table 4.7 Management Information Base (MIB) Counters 4.8 MIIM Registers 5.0 Operational Characteristics 5.1 Absolute Maximum Ratings* 5.2 Operating Ratings*** 6.0 Electrical Characteristics 7.0 Timing Diagrams 7.1 EEPROM Timing 7.2 SNI Timing 7.3 MII Timing 7.4 RMII Timing 7.5 SPI Timing 7.6 Auto-Negotiation Timing 7.7 MDC/MDIO Timing 7.8 Reset Timing 8.0 Reset Circuit 9.0 Selection of Isolation Transformer, (Note 9-1) 10.0 Package Outline Appendix A: Data Sheet Revision History The Microchip Website Customer Change Notification Service Customer Support Product Identification System Worldwide Sales and Service
