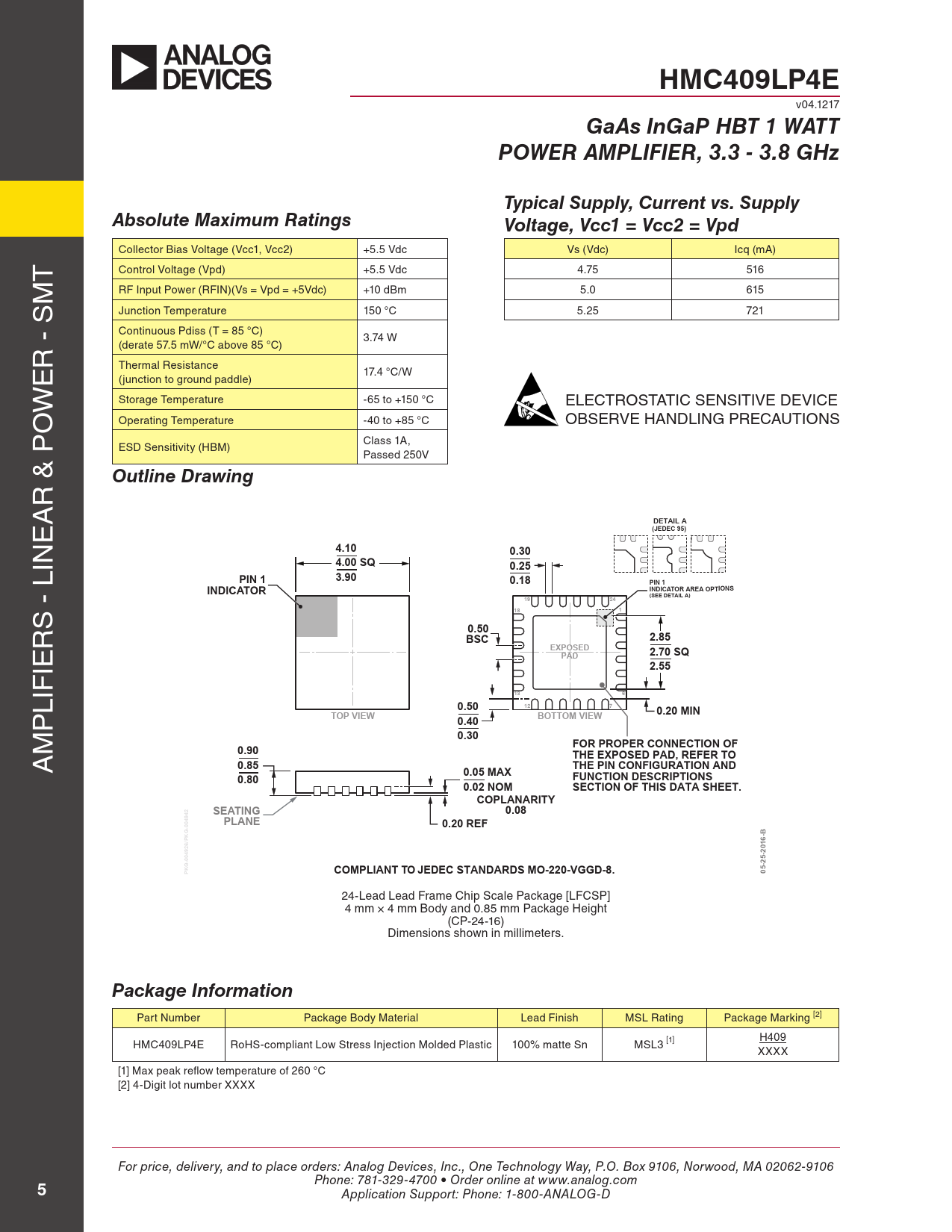

HMC409LP4E
v04.1217
GaAs InGaP HBT 1 WATT POWER AMPLIFIER, 3.3 - 3.8 GHz Typical Supply, Current vs. Supply Absolute Maximum Ratings Voltage, Vcc1 = Vcc2 = Vpd
Collector Bias Voltage (Vcc1, Vcc2) +5.5 Vdc Vs (Vdc) icq (mA) T Control Voltage (Vpd) +5.5 Vdc 4.75 516 m rf input power (rfin)(Vs = Vpd = +5Vdc) +10 dBm 5.0 615 s Junction Temperature 150 °C 5.25 721 Continuous pdiss (T = 85 °C) 3.74 w r - (derate 57.5 mw/°C above 85 °C) e Thermal resistance 17.4 °C/w (junction to ground paddle) w storage Temperature -65 to +150 °C eleCTrosTATiC sensiTiVe DeViCe o operating Temperature -40 to +85 °C oBserVe HAnDlinG preCAUTions p Class 1A, esD sensitivity (HBm) passed 250V
24-Lead Lead Frame Chip Scale Package [LFCSP] Outline Drawing 4 x 4 mm Body and 0.85 mm Package Height
r &
(CP-24-16) Dimensions shown in millimeters
A e
DETAIL A (JEDEC 95) 4.10 0.30
lin
4.00 SQ 0.25 PIN 1 3.90 0.18 PIN 1 INDICATOR INDICATOR AREA OPTIONS (SEE DETAIL A) 19 24
s -
18 1
r
0.50 BSC 2.85 EXPOSED
ie
PAD 2.70 SQ 2.55
lif
13 6
p
0.50 12 7 TOP VIEW 0.20 MIN 0.40 BOTTOM VIEW
m
0.30 FOR PROPER CONNECTION OF
A
0.90 THE EXPOSED PAD, REFER TO 0.85 THE PIN CONFIGURATION AND 0.80 0.05 MAX FUNCTION DESCRIPTIONS 0.02 NOM SECTION OF THIS DATA SHEET. COPLANARITY SEATING 0.08 PLANE 0.20 REF PKG-004926/PKG-004942 COMPLIANT TO JEDEC STANDARDS MO-220-VGGD-8. 05-25-2016-B
24-lead lead frame Chip scale package [lfCsp] 4 mm × 4 mm Body and 0.85 mm package Height (Cp-24-16) Dimensions shown in millimeters.
Package Information
part number package Body material lead finish msl rating package marking [2] HmC409lp4e roHs-compliant low stress injection molded plastic 100% matte sn msl3 [1] H409 XXXX [1] max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
