Datasheet ADG441, ADG442, ADG444 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | LC2MOS Quad SPST Switches |
| Pages / Page | 16 / 3 — Data Sheet. ADG441/ADG442/ADG444. SPECIFICATIONS DUAL SUPPLY1. Table 1. B … |
| Revision | B |
| File Format / Size | PDF / 315 Kb |
| Document Language | English |

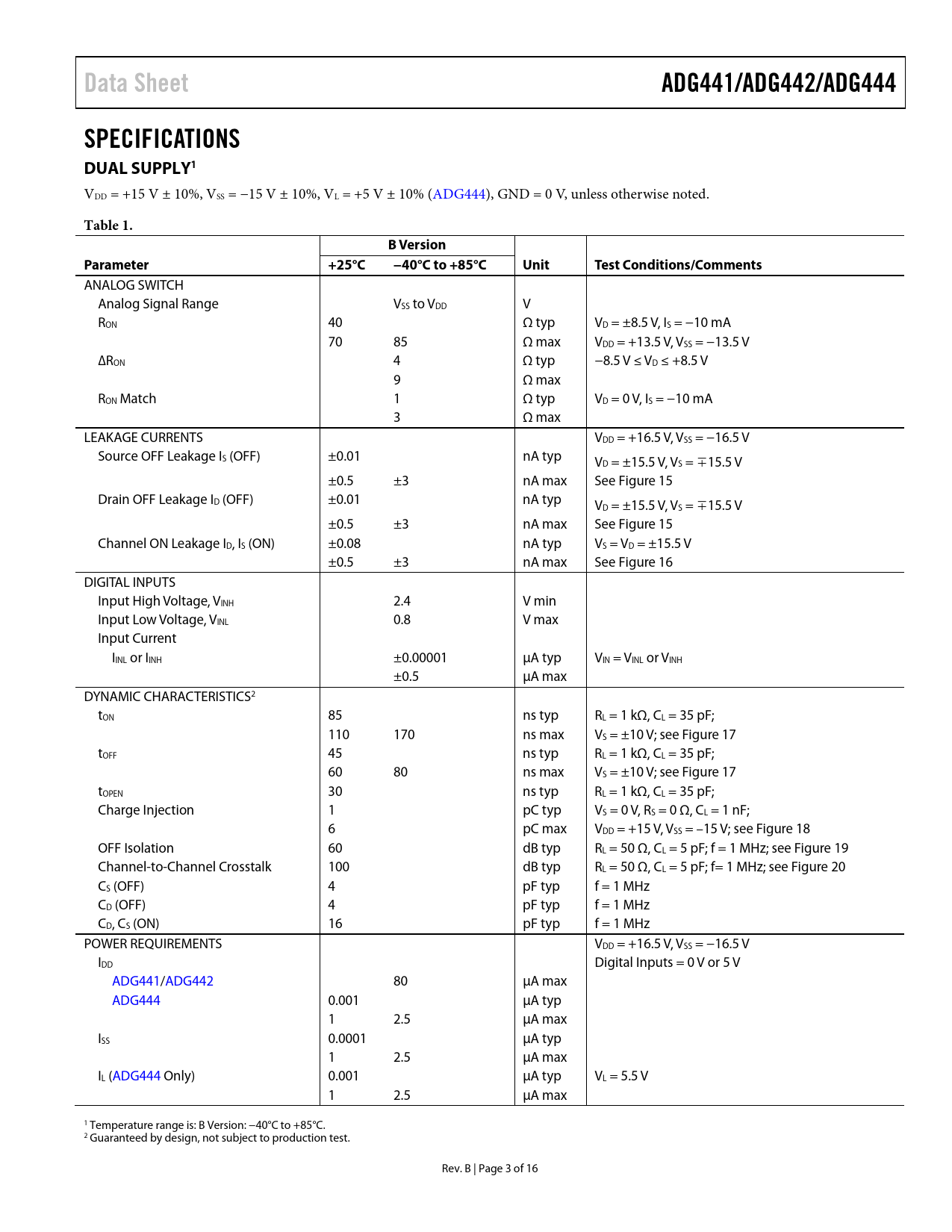

Data Sheet. ADG441/ADG442/ADG444. SPECIFICATIONS DUAL SUPPLY1. Table 1. B Version. Parameter. +25°C. −40°C to +85°C. Unit
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 10 link to page 10
Data Sheet ADG441/ADG442/ADG444 SPECIFICATIONS DUAL SUPPLY1
VDD = +15 V ± 10%, VSS = −15 V ± 10%, VL = +5 V ± 10% (ADG444), GND = 0 V, unless otherwise noted.
Table 1. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V RON 40 Ω typ VD = ±8.5 V, IS = −10 mA 70 85 Ω max VDD = +13.5 V, VSS = −13.5 V ∆RON 4 Ω typ −8.5 V ≤ VD ≤ +8.5 V 9 Ω max RON Match 1 Ω typ VD = 0 V, IS = −10 mA 3 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source OFF Leakage IS (OFF) ±0.01 nA typ VD = ±15.5 V, VS = ∓15.5 V ±0.5 ±3 nA max See Figure 15 Drain OFF Leakage ID (OFF) ±0.01 nA typ VD = ±15.5 V, VS = ∓15.5 V ±0.5 ±3 nA max See Figure 15 Channel ON Leakage ID, IS (ON) ±0.08 nA typ VS = VD = ±15.5 V ±0.5 ±3 nA max See Figure 16 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±0.00001 µA typ VIN = VINL or VINH ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 85 ns typ RL = 1 kΩ, CL = 35 pF; 110 170 ns max VS = ±10 V; see Figure 17 tOFF 45 ns typ RL = 1 kΩ, CL = 35 pF; 60 80 ns max VS = ±10 V; see Figure 17 tOPEN 30 ns typ RL = 1 kΩ, CL = 35 pF; Charge Injection 1 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; 6 pC max VDD = +15 V, VSS = –15 V; see Figure 18 OFF Isolation 60 dB typ RL = 50 Ω, CL = 5 pF; f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk 100 dB typ RL = 50 Ω, CL = 5 pF; f= 1 MHz; see Figure 20 CS (OFF) 4 pF typ f = 1 MHz CD (OFF) 4 pF typ f = 1 MHz CD, CS (ON) 16 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD Digital Inputs = 0 V or 5 V ADG441/ADG442 80 µA max ADG444 0.001 µA typ 1 2.5 µA max ISS 0.0001 µA typ 1 2.5 µA max IL (ADG444 Only) 0.001 µA typ VL = 5.5 V 1 2.5 µA max 1 Temperature range is: B Version: −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. B | Page 3 of 16 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Outline Dimensions Ordering Guide
