TLP5814H. 4. Packaging. (Note). TLP5814H. TLP5814H(LF4). 11-6B1A. 11-6B101A. Note:. Lead. forming. option:. (LF4). 5. Pin. Assignment. 1:. Anode. 2:. N.C. 3:
Model Line for this Datasheet
Text Version of Document

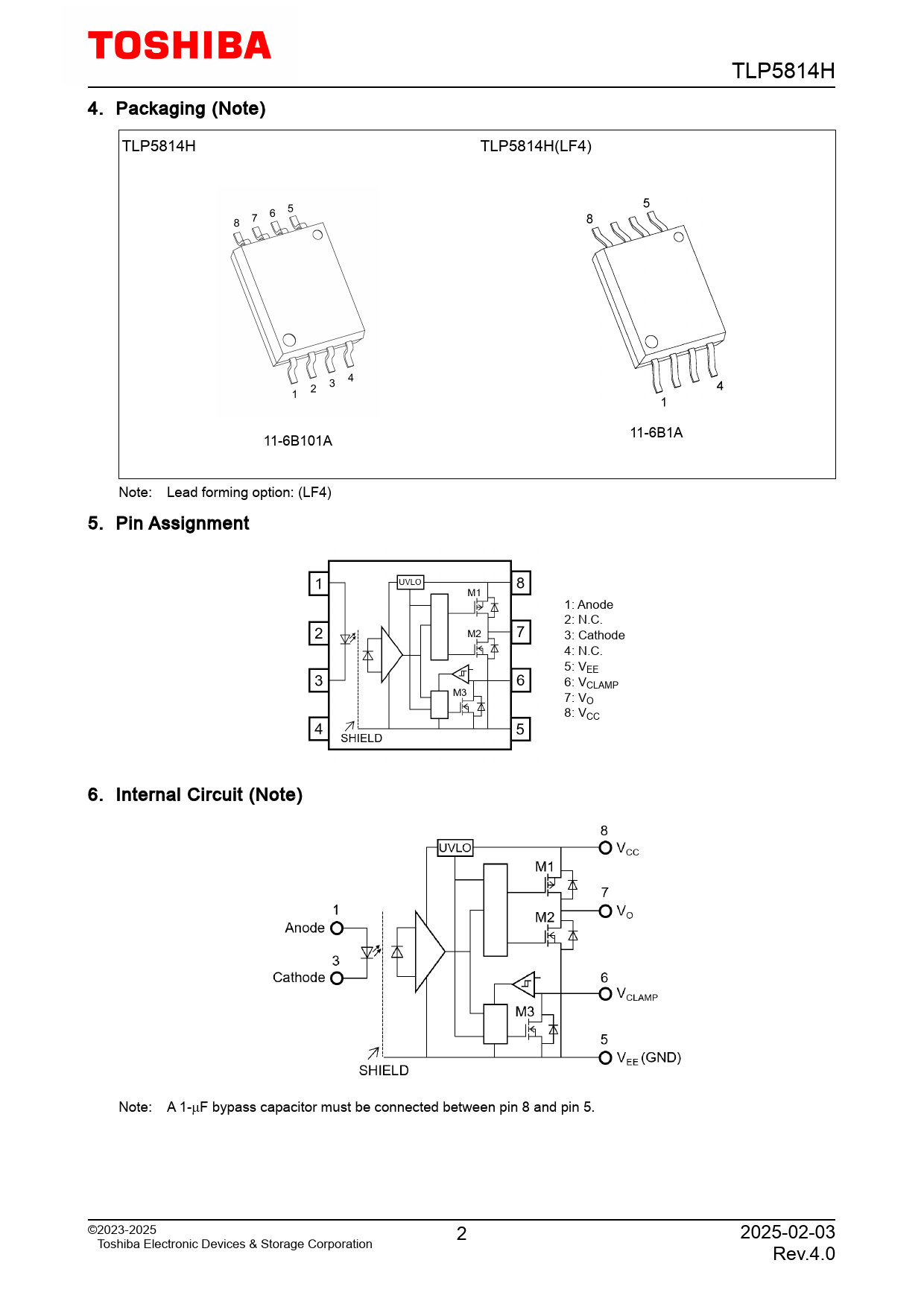

TLP5814H 4. Packaging (Note) TLP5814H TLP5814H(LF4) 11-6B1A 11-6B101A Note: Lead forming option: (LF4) 5. Pin Assignment 1: Anode 2: N.C. 3: Cathode 4: N.C. 5: VEE 6: VCLAMP 7: VO 8: VCC 6. Internal Circuit (Note) Note: A 1-µF bypass capacitor must be connected between pin 8 and pin 5. ©2023-2025 2 2025-02-03 Toshiba Electronic Devices & Storage Corporation Rev.4.0
