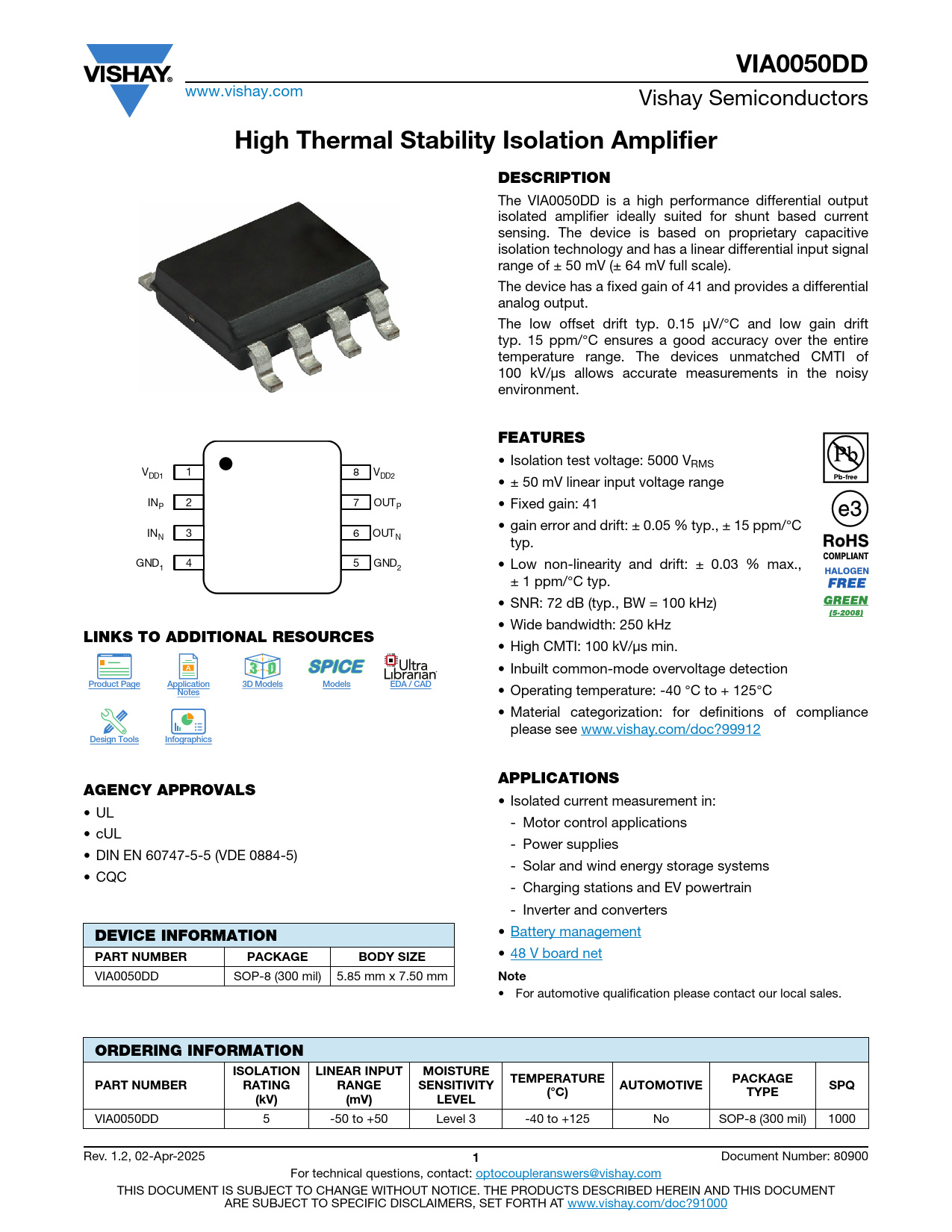

High Thermal Stability Isolation Amplifier DESCRIPTION
The VIA0050DD is a high performance differential output isolated amplifier ideally suited for shunt based current sensing. The device is based on proprietary capacitive isolation technology and has a linear differential input signal range of ± 50 mV (± 64 mV full scale). The device has a fixed gain of 41 and provides a differential analog output. The low offset drift typ. 0.15 μV/°C and low gain drift typ. 15 ppm/°C ensures a good accuracy over the entire temperature range. The devices unmatched CMTI of 100 kV/μs allows accurate measurements in the noisy environment.
FEATURES
• Isolation test voltage: 5000 VRMS VDD1 1 8 VDD2 • ± 50 mV linear input voltage range INP 2 7 OUTP • Fixed gain: 41 • gain error and drift: ± 0.05 % typ., ± 15 ppm/°C INN 3 6 OUTN typ. GND1 4 5 GND2 • Low non-linearity and drift: ± 0.03 % max., ± 1 ppm/°C typ. • SNR: 72 dB (typ., BW = 100 kHz) • Wide bandwidth: 250 kHz
LINKS TO ADDITIONAL RESOURCES
• High CMTI: 100 kV/μs min.
D 3 3
• Inbuilt common-mode overvoltage detection
D Product Page Application 3D Models Models EDA / CAD Notes
• Operating temperature: -40 °C to + 125°C • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Design Tools Infographics APPLICATIONS AGENCY APPROVALS
• Isolated current measurement in: • UL - Motor control applications • cUL - Power supplies • DIN EN 60747-5-5 (VDE 0884-5) - Solar and wind energy storage systems • CQC - Charging stations and EV powertrain - Inverter and converters • Battery management
DEVICE INFORMATION PART NUMBER PACKAGE BODY SIZE
• 48 V board net VIA0050DD SOP-8 (300 mil) 5.85 mm x 7.50 mm
Note
• For automotive qualification please contact our local sales.
ORDERING INFORMATION ISOLATION LINEAR INPUT MOISTURE PART NUMBER RATING RANGE SENSITIVITY TEMPERATURE (kV) (mV) LEVEL (°C) AUTOMOTIVE PACKAGE TYPE SPQ
VIA0050DD 5 -50 to +50 Level 3 -40 to +125 No SOP-8 (300 mil) 1000 Rev. 1.2, 02-Apr-2025
