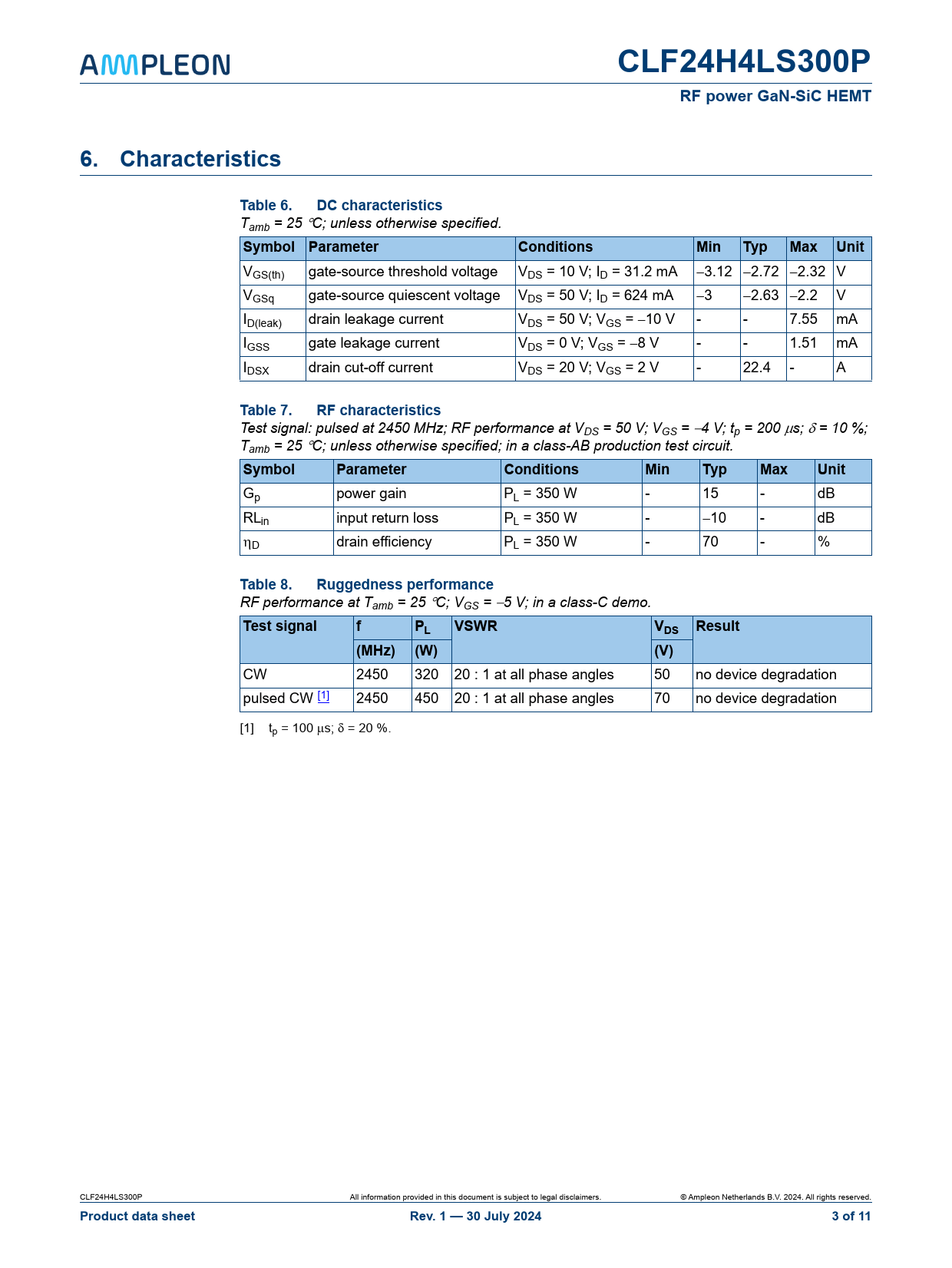

CLF24H4LS300P RF power GaN-SiC HEMT 6. Characteristics Table 6. DC characteristics
Tamb = 25 C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VGS(th) gate-source threshold voltage VDS = 10 V; ID = 31.2 mA 3.12 2.72 2.32 V VGSq gate-source quiescent voltage VDS = 50 V; ID = 624 mA 3 2.63 2.2 V ID(leak) drain leakage current VDS = 50 V; VGS = 10 V - - 7.55 mA IGSS gate leakage current VDS = 0 V; VGS = 8 V - - 1.51 mA IDSX drain cut-off current VDS = 20 V; VGS = 2 V - 22.4 - A
Table 7. RF characteristics
Test signal: pulsed at 2450 MHz; RF performance at VDS = 50 V; VGS = 4 V; tp = 200 s;  = 10 %; Tamb = 25 C; unless otherwise specified; in a class-AB production test circuit.
Symbol Parameter Conditions Min Typ Max Unit
Gp power gain PL = 350 W - 15 - dB RLin input return loss PL = 350 W - 10 - dB D drain efficiency PL = 350 W - 70 - %
Table 8. Ruggedness performance
RF performance at Tamb = 25 C; VGS = 5 V; in a class-C demo.
Test signal f PL VSWR VDS Result (MHz) (W) (V)
CW 2450 320 20 : 1 at all phase angles 50 no device degradation pulsed CW [1] 2450 450 20 : 1 at all phase angles 70 no device degradation [1] tp = 100 s;  = 20 %. CLF24H4LS300P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2024. All rights reserved.
Product data sheet Rev. 1 — 30 July 2024 3 of 11
