Datasheet MMSZ52 (ON Semiconductor) - 4
| Manufacturer | ON Semiconductor |
| Description | Zener Diode 500 mW SOD-123 |
| Pages / Page | 8 / 4 — MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series. 2% TOLERANCE FG ELECTRICAL … |
| File Format / Size | PDF / 221 Kb |
| Document Language | English |
MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series. 2% TOLERANCE FG ELECTRICAL CHARACTERISTICS. Leakage Cur-. Zener Voltage
Model Line for this Datasheet
- MMSZ5221BT1G MMSZ5222BT1G MMSZ5222BT3G MMSZ5223BT1 MMSZ5223BT1G MMSZ5225BT1 MMSZ5225BT1G MMSZ5226BT1G MMSZ5226BT3G MMSZ5226CT1G MMSZ5227BT1G MMSZ5228BT1G MMSZ5229BT1G MMSZ5230BT1 MMSZ5230BT1G MMSZ5231BT1G MMSZ5231BT3G MMSZ5231CT1G MMSZ5232BT1 MMSZ5232BT1G MMSZ5232CT1G MMSZ5233BT1G MMSZ5234BT1 MMSZ5234BT1G MMSZ5235BT1 MMSZ5235BT1G MMSZ5235BT3G MMSZ5236BT1 MMSZ5236BT1G MMSZ5236BT3G MMSZ5237BT1 MMSZ5237BT1G MMSZ5238BT1G MMSZ5239BT1 MMSZ5239BT1G MMSZ5240BT1 MMSZ5240BT1G MMSZ5240BT3G MMSZ5241BT1 MMSZ5241BT1G MMSZ5242BT1 MMSZ5242BT1G MMSZ5242BT3G MMSZ5243BT1 MMSZ5243BT1G MMSZ5244BT1 MMSZ5244BT1G MMSZ5245BT1 MMSZ5245BT1G MMSZ5245BT3 MMSZ5245CT1G MMSZ5246BT1 MMSZ5246BT1G MMSZ5247BT1 MMSZ5247BT1G MMSZ5247BT3G MMSZ5248BT1 MMSZ5248BT1G MMSZ5248BT3G MMSZ5248CT1G MMSZ5249BT1G MMSZ5250BT1 MMSZ5250BT1G MMSZ5250CT1G MMSZ5251BT1G MMSZ5252BT1 MMSZ5252BT1G MMSZ5252CT1G MMSZ5253BT1G MMSZ5254BT1 MMSZ5254BT1G MMSZ5255BT1 MMSZ5255BT1G MMSZ5256BT1 MMSZ5256BT1G MMSZ5256CT1G MMSZ5257BT1 MMSZ5257BT1G MMSZ5258BT1 MMSZ5258BT1G MMSZ5258BT3G MMSZ5258CT1G MMSZ5259BT1 MMSZ5259BT1G MMSZ5260BT1 MMSZ5260BT1G MMSZ5261BT1 MMSZ5261BT1G MMSZ5261BT3G MMSZ5262BT1G MMSZ5263BT1G MMSZ5264BT1G MMSZ5265BT1G MMSZ5266BT1G MMSZ5266BT3 MMSZ5266BT3G MMSZ5267BT1 MMSZ5267BT1G MMSZ5268BT1G MMSZ5270BT1 MMSZ5270BT1G MMSZ5272BT1G MMSZ5272BT3G SZMMSZ5223BT1G
Text Version of Document
link to page 4 link to page 4 link to page 4

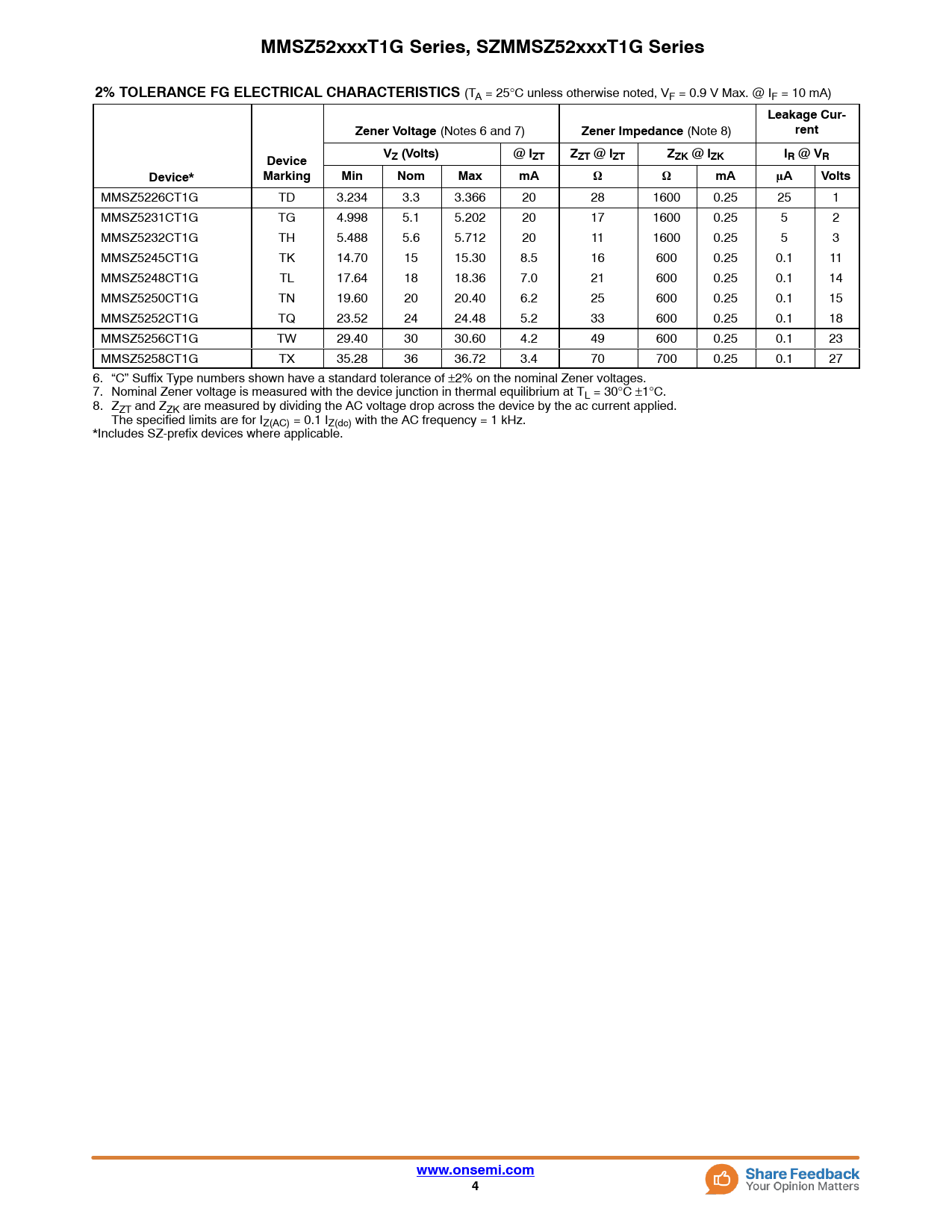

MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series 2% TOLERANCE FG ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted, VF = 0.9 V Max. @ IF = 10 mA)
Leakage Cur- Zener Voltage
(Notes 6 and 7)
Zener Impedance
(Note 8)
rent Device VZ (Volts) @ IZT ZZT @ IZT ZZK @ IZK IR @ VR Device* Marking Min Nom Max mA W W mA mA Volts
MMSZ5226CT1G TD 3.234 3.3 3.366 20 28 1600 0.25 25 1 MMSZ5231CT1G TG 4.998 5.1 5.202 20 17 1600 0.25 5 2 MMSZ5232CT1G TH 5.488 5.6 5.712 20 11 1600 0.25 5 3 MMSZ5245CT1G TK 14.70 15 15.30 8.5 16 600 0.25 0.1 11 MMSZ5248CT1G TL 17.64 18 18.36 7.0 21 600 0.25 0.1 14 MMSZ5250CT1G TN 19.60 20 20.40 6.2 25 600 0.25 0.1 15 MMSZ5252CT1G TQ 23.52 24 24.48 5.2 33 600 0.25 0.1 18 MMSZ5256CT1G TW 29.40 30 30.60 4.2 49 600 0.25 0.1 23 MMSZ5258CT1G TX 35.28 36 36.72 3.4 70 700 0.25 0.1 27 6. “C” Suffix Type numbers shown have a standard tolerance of ±2% on the nominal Zener voltages. 7. Nominal Zener voltage is measured with the device junction in thermal equilibrium at TL = 30°C ±1°C. 8. ZZT and ZZK are measured by dividing the AC voltage drop across the device by the ac current applied. The specified limits are for IZ(AC) = 0.1 IZ(dc) with the AC frequency = 1 kHz. *Includes SZ-prefix devices where applicable.
www.onsemi.com 4
