Datasheet MMSZ52 (ON Semiconductor) - 5
| Manufacturer | ON Semiconductor |
| Description | Zener Diode 500 mW SOD-123 |
| Pages / Page | 8 / 5 — MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series. TYPICAL CHARACTERISTICS. … |
| File Format / Size | PDF / 221 Kb |
| Document Language | English |

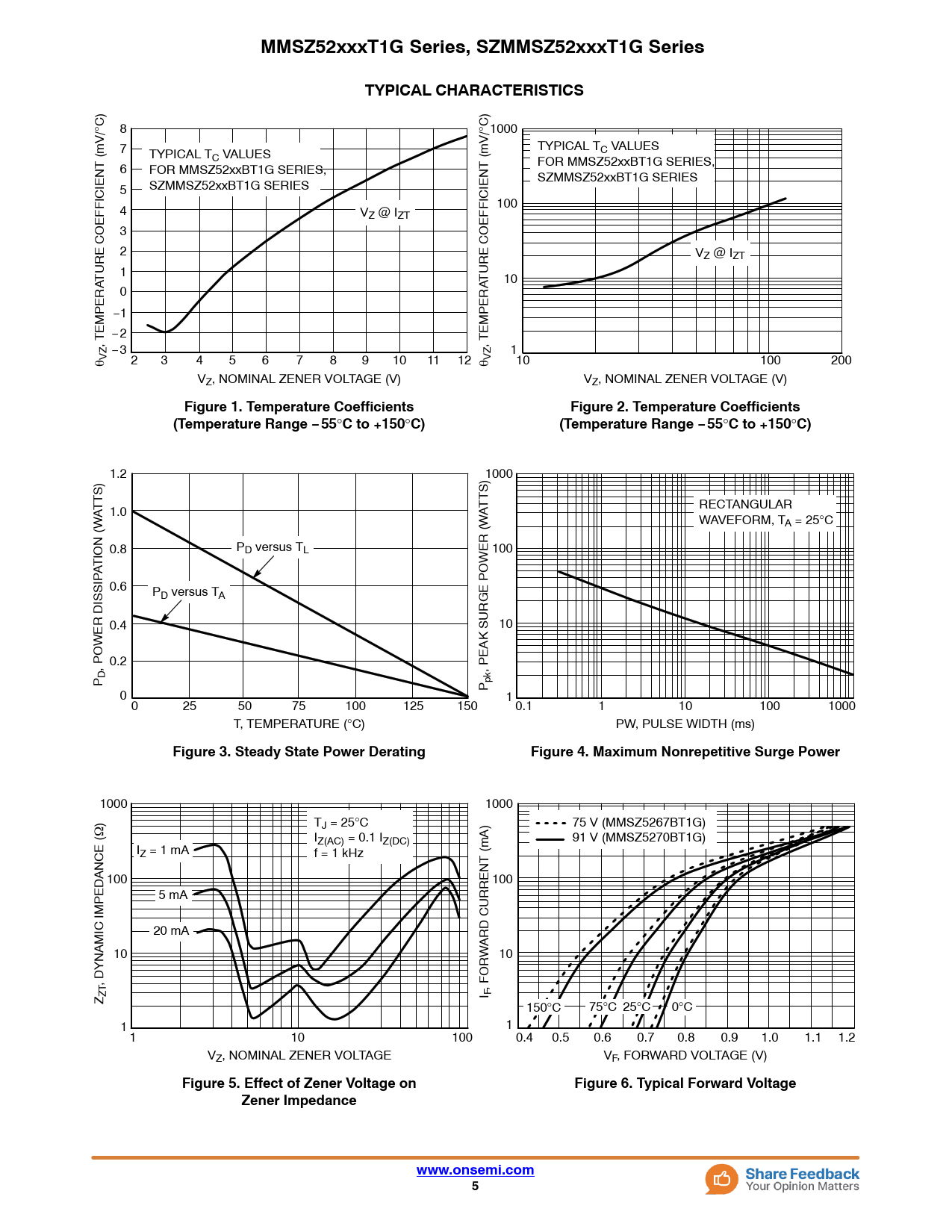

MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series. TYPICAL CHARACTERISTICS. Figure 1. Temperature Coefficients
Model Line for this Datasheet
- MMSZ5221BT1G MMSZ5222BT1G MMSZ5222BT3G MMSZ5223BT1 MMSZ5223BT1G MMSZ5225BT1 MMSZ5225BT1G MMSZ5226BT1G MMSZ5226BT3G MMSZ5226CT1G MMSZ5227BT1G MMSZ5228BT1G MMSZ5229BT1G MMSZ5230BT1 MMSZ5230BT1G MMSZ5231BT1G MMSZ5231BT3G MMSZ5231CT1G MMSZ5232BT1 MMSZ5232BT1G MMSZ5232CT1G MMSZ5233BT1G MMSZ5234BT1 MMSZ5234BT1G MMSZ5235BT1 MMSZ5235BT1G MMSZ5235BT3G MMSZ5236BT1 MMSZ5236BT1G MMSZ5236BT3G MMSZ5237BT1 MMSZ5237BT1G MMSZ5238BT1G MMSZ5239BT1 MMSZ5239BT1G MMSZ5240BT1 MMSZ5240BT1G MMSZ5240BT3G MMSZ5241BT1 MMSZ5241BT1G MMSZ5242BT1 MMSZ5242BT1G MMSZ5242BT3G MMSZ5243BT1 MMSZ5243BT1G MMSZ5244BT1 MMSZ5244BT1G MMSZ5245BT1 MMSZ5245BT1G MMSZ5245BT3 MMSZ5245CT1G MMSZ5246BT1 MMSZ5246BT1G MMSZ5247BT1 MMSZ5247BT1G MMSZ5247BT3G MMSZ5248BT1 MMSZ5248BT1G MMSZ5248BT3G MMSZ5248CT1G MMSZ5249BT1G MMSZ5250BT1 MMSZ5250BT1G MMSZ5250CT1G MMSZ5251BT1G MMSZ5252BT1 MMSZ5252BT1G MMSZ5252CT1G MMSZ5253BT1G MMSZ5254BT1 MMSZ5254BT1G MMSZ5255BT1 MMSZ5255BT1G MMSZ5256BT1 MMSZ5256BT1G MMSZ5256CT1G MMSZ5257BT1 MMSZ5257BT1G MMSZ5258BT1 MMSZ5258BT1G MMSZ5258BT3G MMSZ5258CT1G MMSZ5259BT1 MMSZ5259BT1G MMSZ5260BT1 MMSZ5260BT1G MMSZ5261BT1 MMSZ5261BT1G MMSZ5261BT3G MMSZ5262BT1G MMSZ5263BT1G MMSZ5264BT1G MMSZ5265BT1G MMSZ5266BT1G MMSZ5266BT3 MMSZ5266BT3G MMSZ5267BT1 MMSZ5267BT1G MMSZ5268BT1G MMSZ5270BT1 MMSZ5270BT1G MMSZ5272BT1G MMSZ5272BT3G SZMMSZ5223BT1G
Text Version of Document
MMSZ52xxxT1G Series, SZMMSZ52xxxT1G Series TYPICAL CHARACTERISTICS
°C) 8 °C) 1000 7 TYPICAL T TYPICAL T C VALUES C VALUES FOR MMSZ52xxBT1G SERIES, 6 FOR MMSZ52xxBT1G SERIES, SZMMSZ52xxBT1G SERIES 5 SZMMSZ52xxBT1G SERIES 4 100 VZ @ IZT 3 2 VZ @ IZT 1 TURE COEFFICIENT (mV/ TURE COEFFICIENT (mV/ 10 0 −1 −2 , TEMPERA −3 , TEMPERA 1 2 3 4 5 6 7 8 9 10 11 12 10 100 200 q VZ q VZ VZ, NOMINAL ZENER VOLTAGE (V) VZ, NOMINAL ZENER VOLTAGE (V)
Figure 1. Temperature Coefficients Figure 2. Temperature Coefficients (Temperature Range −55
°
C to +150
°
C) (Temperature Range −55
°
C to +150
°
C)
1.2 1000 ATTS) 1.0 RECTANGULAR ATTS) WAVEFORM, TA = 25°C 0.8 PD versus TL 100 ATION (W 0.6 PD versus TA 0.4 10 0.2 , POWER DISSIP , PEAK SURGE POWER (W P D P pk 0 1 0 25 50 75 100 125 150 0.1 1 10 100 1000 T, TEMPERATURE (°C) PW, PULSE WIDTH (ms)
Figure 3. Steady State Power Derating Figure 4. Maximum Nonrepetitive Surge Power
1000 1000 ) TJ = 25°C 75 V (MMSZ5267BT1G) W IZ(AC) = 0.1 IZ(DC) 91 V (MMSZ5270BT1G) IZ = 1 mA f = 1 kHz 100 100 5 mA 20 mA ARD CURRENT (mA) 10 W 10 , DYNAMIC IMPEDANCE ( , FOR Z ZT I F 150°C 75°C 25°C 0°C 1 1 1 10 100 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 VZ, NOMINAL ZENER VOLTAGE VF, FORWARD VOLTAGE (V)
Figure 5. Effect of Zener Voltage on Figure 6. Typical Forward Voltage Zener Impedance www.onsemi.com 5
