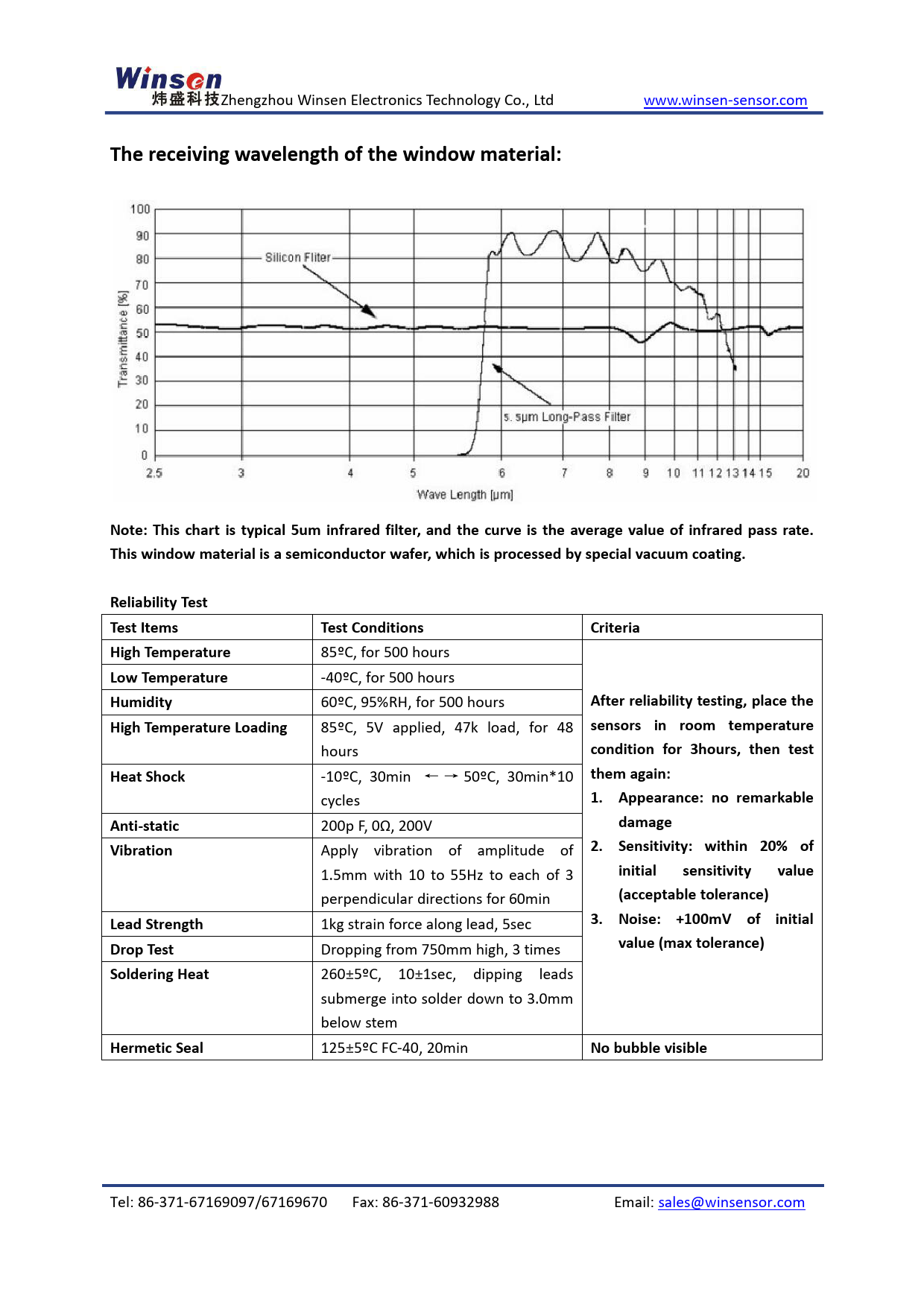

The receiving wavelength of the window material: Note: This chart is typical 5um infrared filter, and the curve is the average value of infrared pass rate. This window material is a semiconductor wafer, which is processed by special vacuum coating. Reliability Test Test Items Test Conditions Criteria High Temperature
85ºC, for 500 hours
Low Temperature
-40ºC, for 500 hours
Humidity
60ºC, 95%RH, for 500 hours
After reliability testing, place the High Temperature Loading
85ºC, 5V applied, 47k load, for 48
sensors in room temperature
hours
condition for 3hours, then test Heat Shock
-10ºC, 30min ← → 50ºC, 30min*10
them again:
cycles
1. Appearance: no remarkable Anti-static
200p F, 0Ω, 200V
damage 2. Sensitivity: within 20% of Vibration
Apply vibration of amplitude of 1.5mm with 10 to 55Hz to each of 3
initial sensitivity value
perpendicular directions for 60min
(acceptable tolerance) 3. Noise: +100mV of initial Lead Strength
1kg strain force along lead, 5sec
value (max tolerance) Drop Test
Dropping from 750mm high, 3 times
Soldering Heat
260±5ºC, 10±1sec, dipping leads submerge into solder down to 3.0mm below stem
Hermetic Seal
125±5ºC FC-40, 20min
No bubble visible
