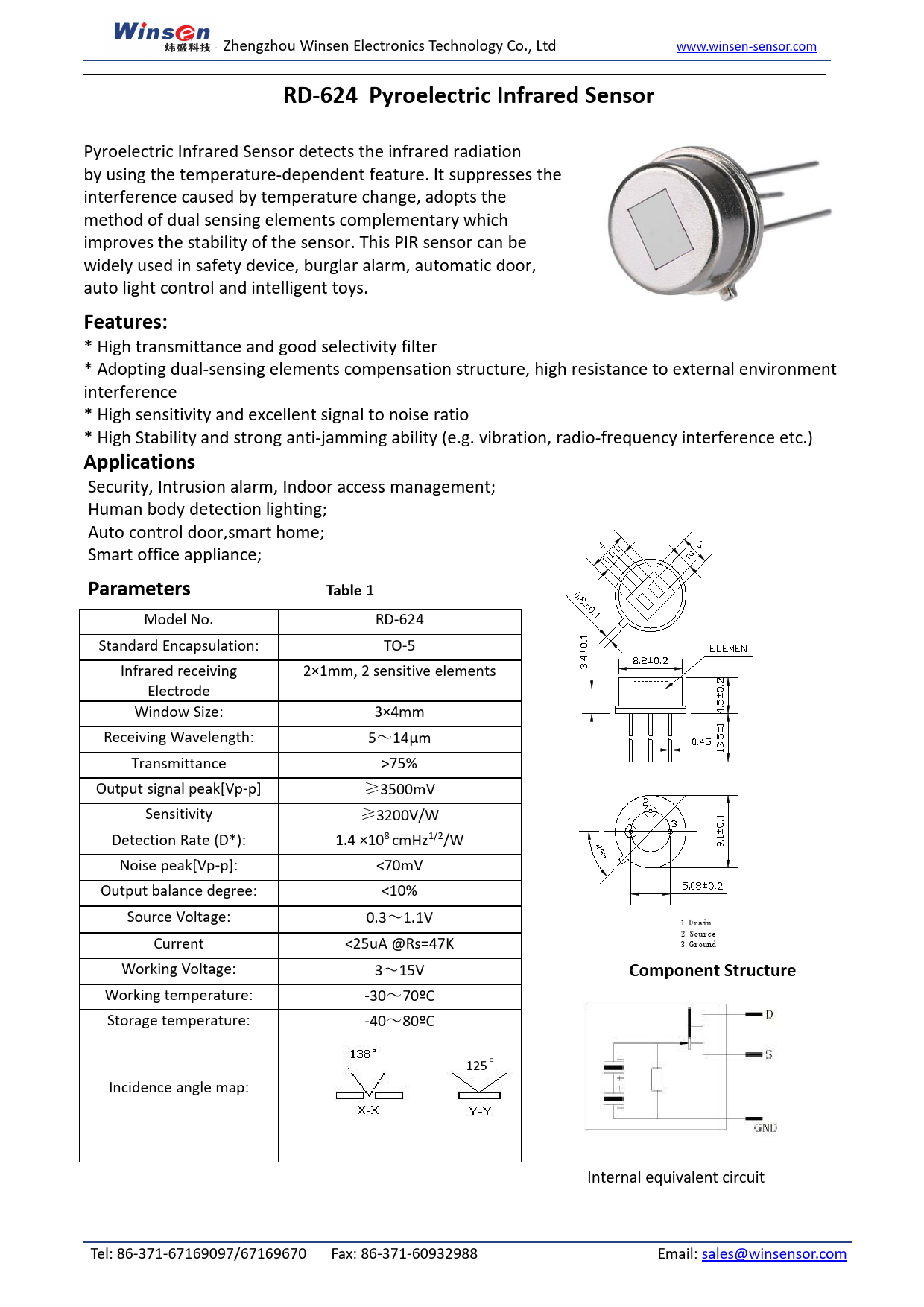

RD-624 Pyroelectric Infrared Sensor. Features:. Applications. Parameters. Table 1. Component Structure
Model Line for this Datasheet
Text Version of Document
Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com
RD-624 Pyroelectric Infrared Sensor
Pyroelectric Infrared Sensor detects the infrared radiation by using the temperature-dependent feature. It suppresses the interference caused by temperature change, adopts the method of dual sensing elements complementary which improves the stability of the sensor. This PIR sensor can be widely used in safety device, burglar alarm, automatic door, auto light control and intel igent toys.
Features:
* High transmittance and good selectivity filter * Adopting dual-sensing elements compensation structure, high resistance to external environment interference * High sensitivity and excel ent signal to noise ratio * High Stability and strong anti-jamming ability (e.g. vibration, radio-frequency interference etc.)
Applications
Security, Intrusion alarm, Indoor access management; Human body detection lighting; Auto control door,smart home; Smart office appliance;
Parameters Table 1
Model No. RD-624 Standard Encapsulation: TO-5 Infrared receiving 2×1mm, 2 sensitive elements Electrode Window Size: 3×4mm Receiving Wavelength: 5～14µm Transmittance >75% Output signal peak[Vp-p] ≥3500mV Sensitivity ≥3200V/W Detection Rate (D*): 1.4 ×108 cmHz1/2/W Noise peak[Vp-p]: <70mV Output balance degree: <10% Source Voltage: 0.3～1.1V 1.Drain Current <25uA @Rs=47K 2.Source 3.Ground Working Voltage: 3～15V
Component Structure
Working temperature: -30～70ºC Storage temperature: -40～80ºC 125° Incidence angle map: Internal equivalent circuit Tel: 86-371-67169097/67169670 Fax: 86-371-60932988 Email: sales@winsensor.com
