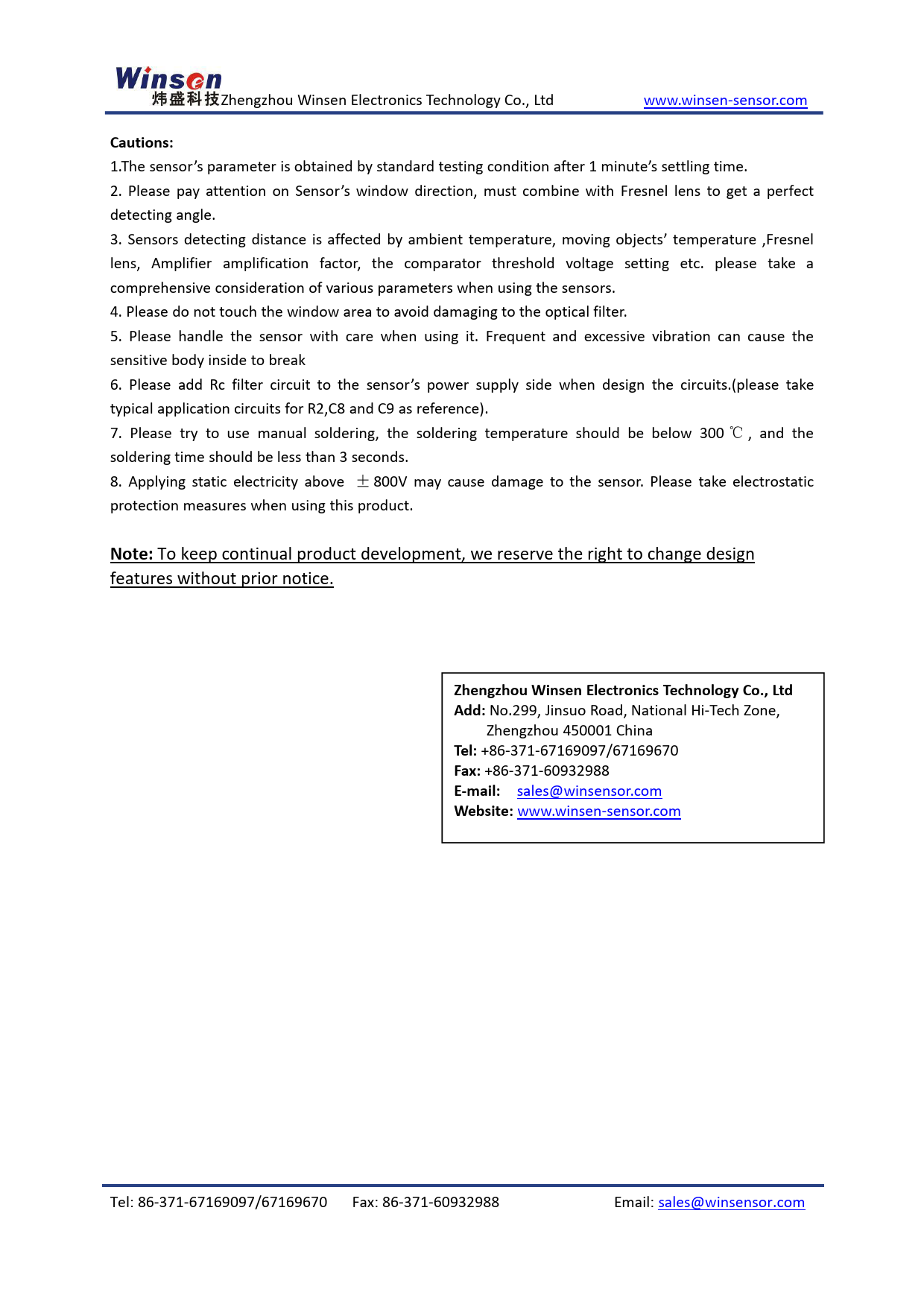

Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com
Cautions:
1.The sensor’s parameter is obtained by standard testing condition after 1 minute’s settling time. 2. Please pay attention on Sensor’s window direction, must combine with Fresnel lens to get a perfect detecting angle. 3. Sensors detecting distance is affected by ambient temperature, moving objects’ temperature ,Fresnel lens, Amplifier amplification factor, the comparator threshold voltage setting etc. please take a comprehensive consideration of various parameters when using the sensors. 4. Please do not touch the window area to avoid damaging to the optical filter. 5. Please handle the sensor with care when using it. Frequent and excessive vibration can cause the sensitive body inside to break 6. Please add Rc filter circuit to the sensor’s power supply side when design the circuits.(please take typical application circuits for R2,C8 and C9 as reference). 7. Please try to use manual soldering, the soldering temperature should be below 300 ℃ , and the soldering time should be less than 3 seconds. 8. Applying static electricity above ± 800V may cause damage to the sensor. Please take electrostatic protection measures when using this product.
Note:
To keep continual product development, we reserve the right to change design features without prior notice.
