Datasheet MPF102 (ON Semiconductor)
| Manufacturer | ON Semiconductor |
| Description | Small Signal JFET N-Channel in TO-92 package |
| Pages / Page | 7 / 1 — Preferred Devices. N−Channel − Depletion. Features. http://onsemi.com. … |
| File Format / Size | PDF / 363 Kb |
| Document Language | English |

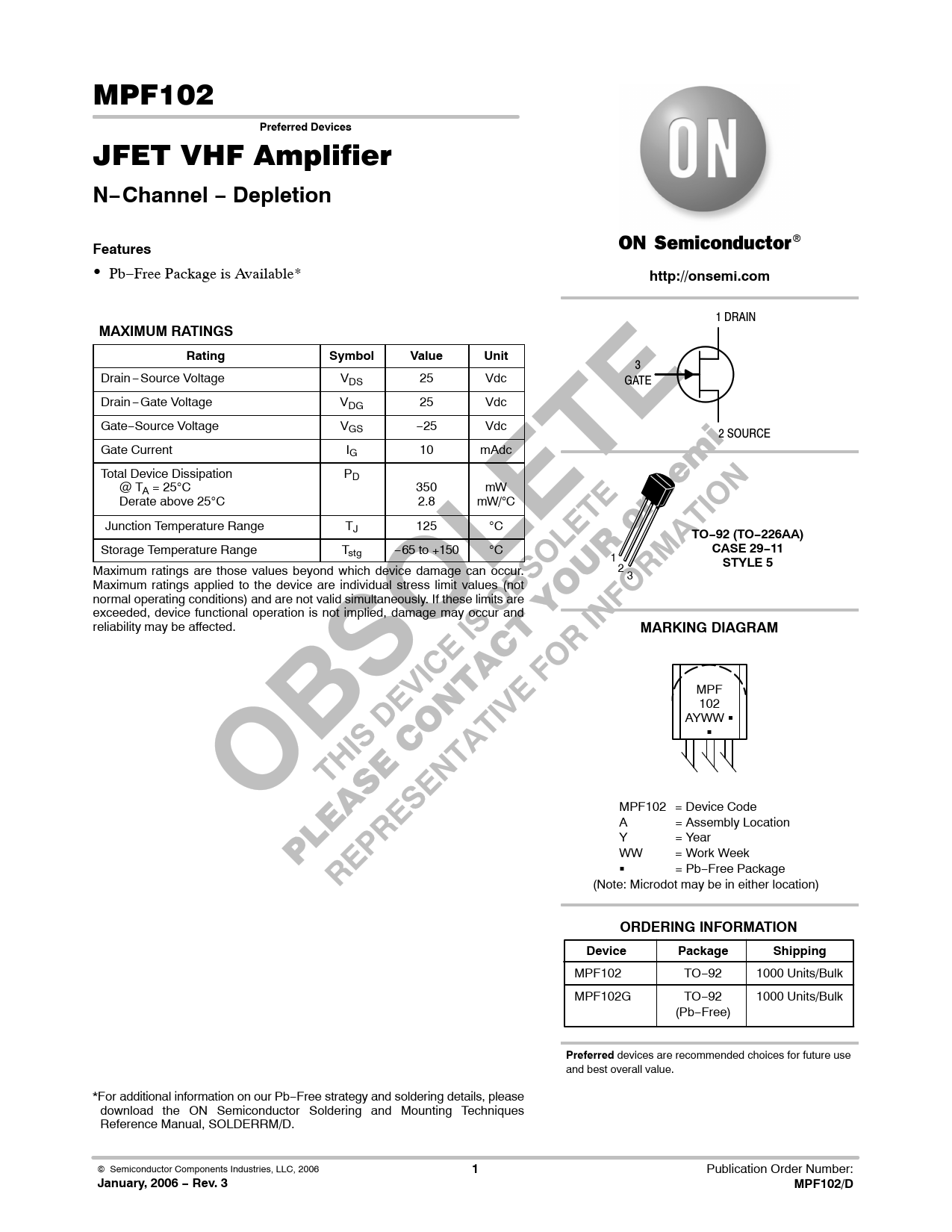

Preferred Devices. N−Channel − Depletion. Features. http://onsemi.com. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. TO−92 (TO−226AA)
Model Line for this Datasheet
Text Version of Document
MPF102
Preferred Devices
JFET VHF Amplifier
N−Channel − Depletion Features
Pb−Free Package is Available*
http://onsemi.com
1 DRAIN
MAXIMUM RATINGS Rating Symbol Value Unit
3 Drain−Source Voltage VDS 25 Vdc GATE Drain−Gate Voltage VDG 25 Vdc Gate−Source Voltage VGS −25 Vdc 2 SOURCE Gate Current IG 10 mAdc Total Device Dissipation PD @ TA = 25C 350 mW Derate above 25C 2.8 mW/C Junction Temperature Range TJ 125 C
TO−92 (TO−226AA)
Storage Temperature Range Tstg −65 to +150 C
CASE 29−11
1
STYLE 5
Maximum ratings are those values beyond which device damage can occur. 2 3 Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
MARKING DIAGRAM
MPF 102 AYWW G G MPF102 = Device Code A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location)
ORDERING INFORMATION Device Package Shipping
MPF102 TO−92 1000 Units/Bulk MPF102G TO−92 1000 Units/Bulk (Pb−Free)
Preferred
devices are recommended choices for future use and best overall value. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. Semiconductor Components Industries, LLC, 2006
1
Publication Order Number:
January, 2006 − Rev. 3 MPF102/D
