Datasheet SB520A, SB530A, SB540A, SB550A, SB560A (Vishay) - 3
| Manufacturer | Vishay |
| Description | Schottky Barrier Rectifier in DO-201AD package |
| Pages / Page | 4 / 3 — SB520A, SB530A, SB540A, SB550A, SB560A. PACKAGE OUTLINE DIMENSIONS. … |
| File Format / Size | PDF / 77 Kb |
| Document Language | English |

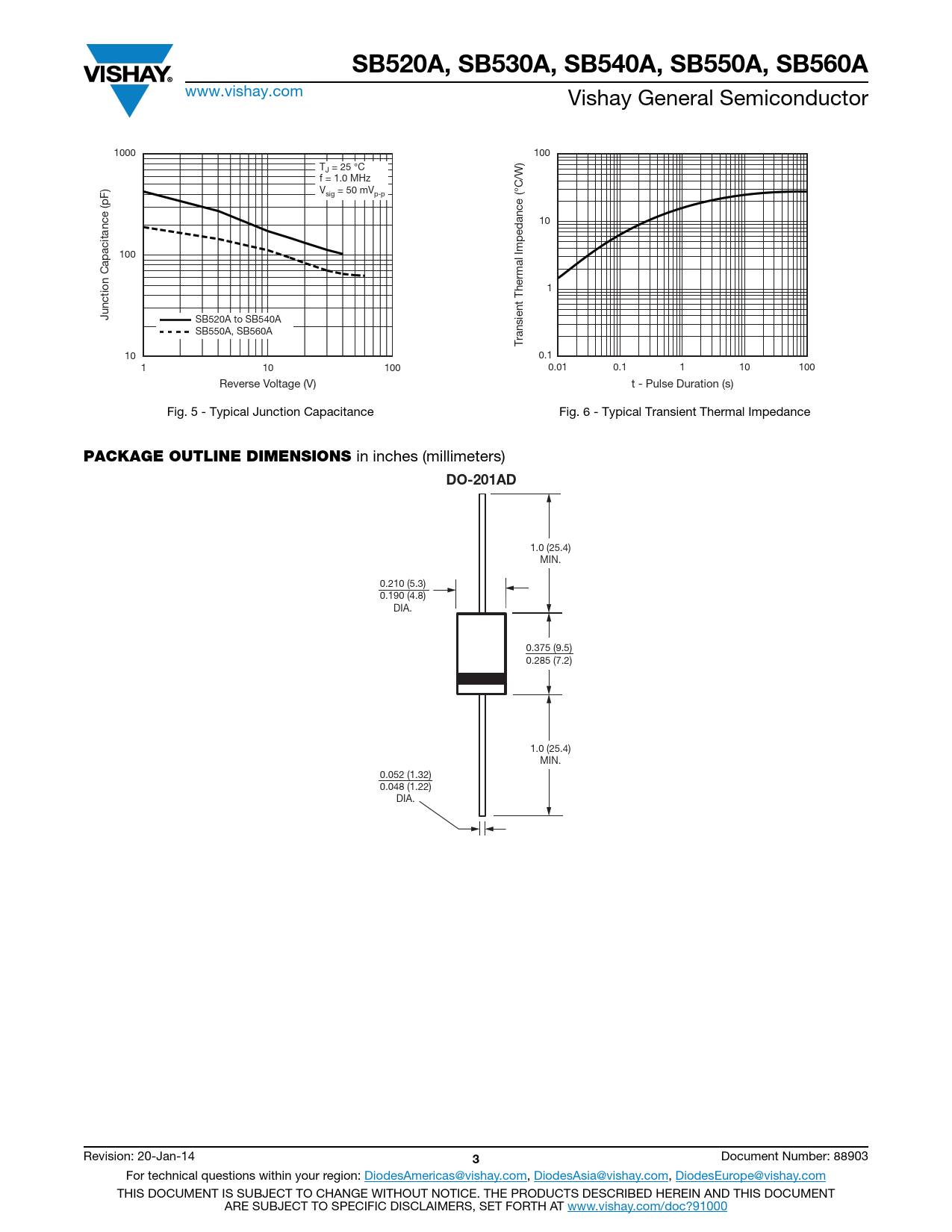

SB520A, SB530A, SB540A, SB550A, SB560A. PACKAGE OUTLINE DIMENSIONS. DO-201AD
Model Line for this Datasheet
Text Version of Document
SB520A, SB530A, SB540A, SB550A, SB560A
www.vishay.com Vishay General Semiconductor 1000 100 T = 25 °C J f = 1.0 MHz V = 50 mV sig p-p 10 100 1 Junction Capacitance (pF) SB520A to SB540A ient Thermal Impedance (°C/W) s SB550A, SB560A n a Tr 10 0.1 1 10 100 0.01 0.1 1 10 100 Reverse Voltage (V) t - Pulse Duration (s) Fig. 5 - Typical Junction Capacitance Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-201AD
1.0 (25.4) MIN. 0.210 (5.3) 0.190 (4.8) DIA. 0.375 (9.5) 0.285 (7.2) 1.0 (25.4) MIN. 0.052 (1.32) 0.048 (1.22) DIA. Revision: 20-Jan-14
3
Document Number: 88903 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
