DS1000Z-E Series Digital Oscilloscope. Innovative UltraVision Technology(Analog Channel). Models and Key Specifications
Text Version of Document

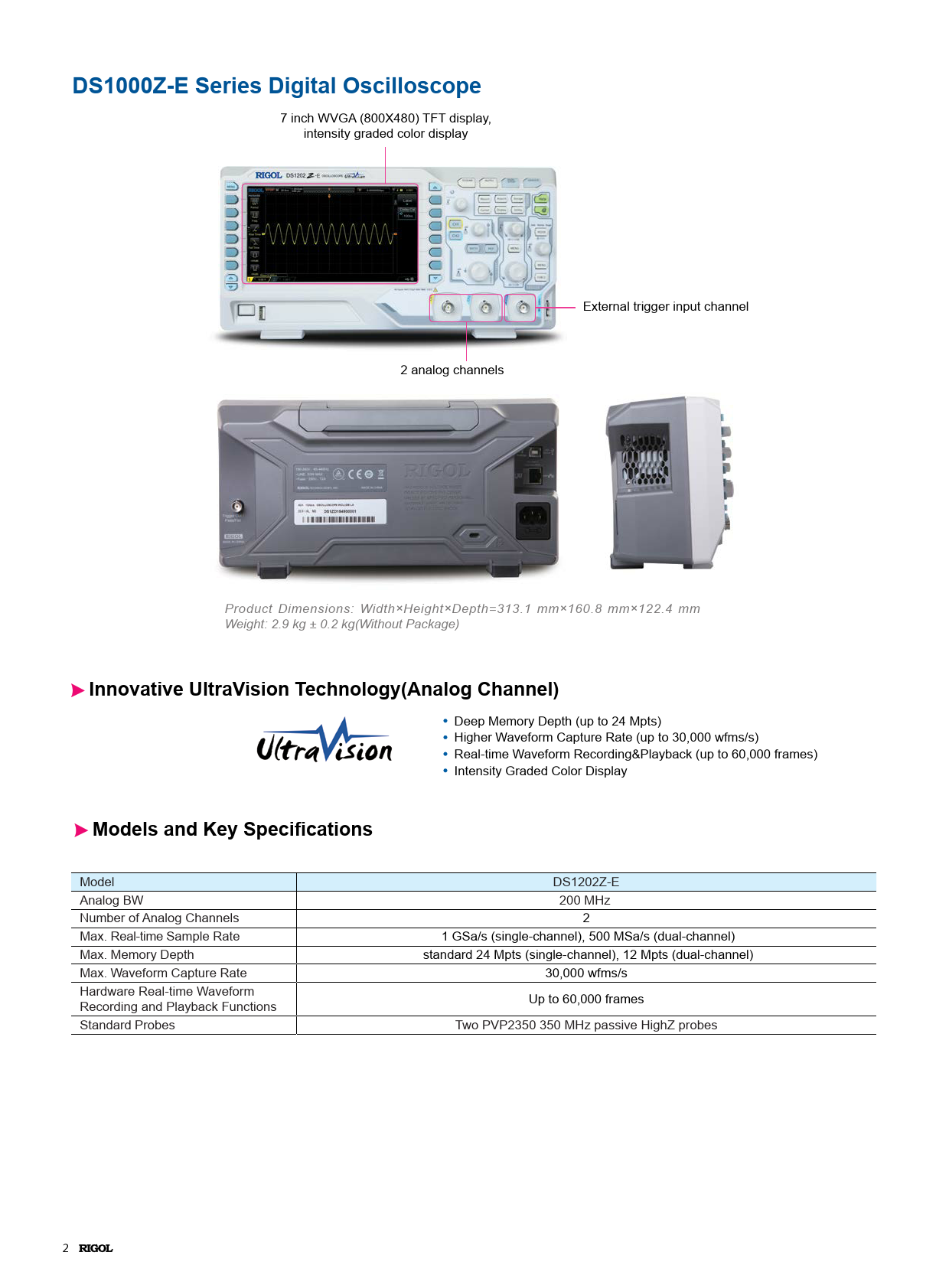

DS1000Z-E Series Digital Oscilloscope
7 inch WVGA (800X480) TFT display, intensity graded color display External trigger input channel 2 analog channels Product Dimensions: Width×Height×Depth=313.1 mm×160.8 mm×122.4 mm Weight: 2.9 kg ± 0.2 kg(Without Package)
Innovative UltraVision Technology(Analog Channel)
Deep Memory Depth (up to 24 Mpts) Higher Waveform Capture Rate (up to 30,000 wfms/s) Real-time Waveform Recording&Playback (up to 60,000 frames) Intensity Graded Color Display
Models and Key Specifications
Model DS1202Z-E Analog BW 200 MHz Number of Analog Channels 2 Max. Real-time Sample Rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel) Max. Memory Depth standard 24 Mpts (single-channel), 12 Mpts (dual-channel) Max. Waveform Capture Rate 30,000 wfms/s Hardware Real-time Waveform Recording and Playback Functions Up to 60,000 frames Standard Probes Two PVP2350 350 MHz passive HighZ probes 2
7 inch WVGA (800X480) TFT display, intensity graded color display External trigger input channel 2 analog channels Product Dimensions: Width×Height×Depth=313.1 mm×160.8 mm×122.4 mm Weight: 2.9 kg ± 0.2 kg(Without Package)
Innovative UltraVision Technology(Analog Channel)
Deep Memory Depth (up to 24 Mpts) Higher Waveform Capture Rate (up to 30,000 wfms/s) Real-time Waveform Recording&Playback (up to 60,000 frames) Intensity Graded Color Display
Models and Key Specifications
Model DS1202Z-E Analog BW 200 MHz Number of Analog Channels 2 Max. Real-time Sample Rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel) Max. Memory Depth standard 24 Mpts (single-channel), 12 Mpts (dual-channel) Max. Waveform Capture Rate 30,000 wfms/s Hardware Real-time Waveform Recording and Playback Functions Up to 60,000 frames Standard Probes Two PVP2350 350 MHz passive HighZ probes 2
