Datasheet Full Pinout Nicla Sense ME (Arduino)

ManufacturerArduino
DescriptionThe Nicla Sense ME houses 4 low power sensors in a small footprint enabling powerful data fusion capabilities on the edge.
Pages / Page7 / 1 — STORE.ARDUINO.CC/NICLA-SENSE-ME. PWM. BQ25120AYFPR. VBAT. BAT. NTC. …
File Format / SizePDF / 610 Kb
Document LanguageEnglish

STORE.ARDUINO.CC/NICLA-SENSE-ME. PWM. BQ25120AYFPR. VBAT. BAT. NTC. VIN_BQ25120. ADC1. P0.02. ANNAB112

Datasheet Full Pinout Nicla Sense ME Arduino

Text Version of Document

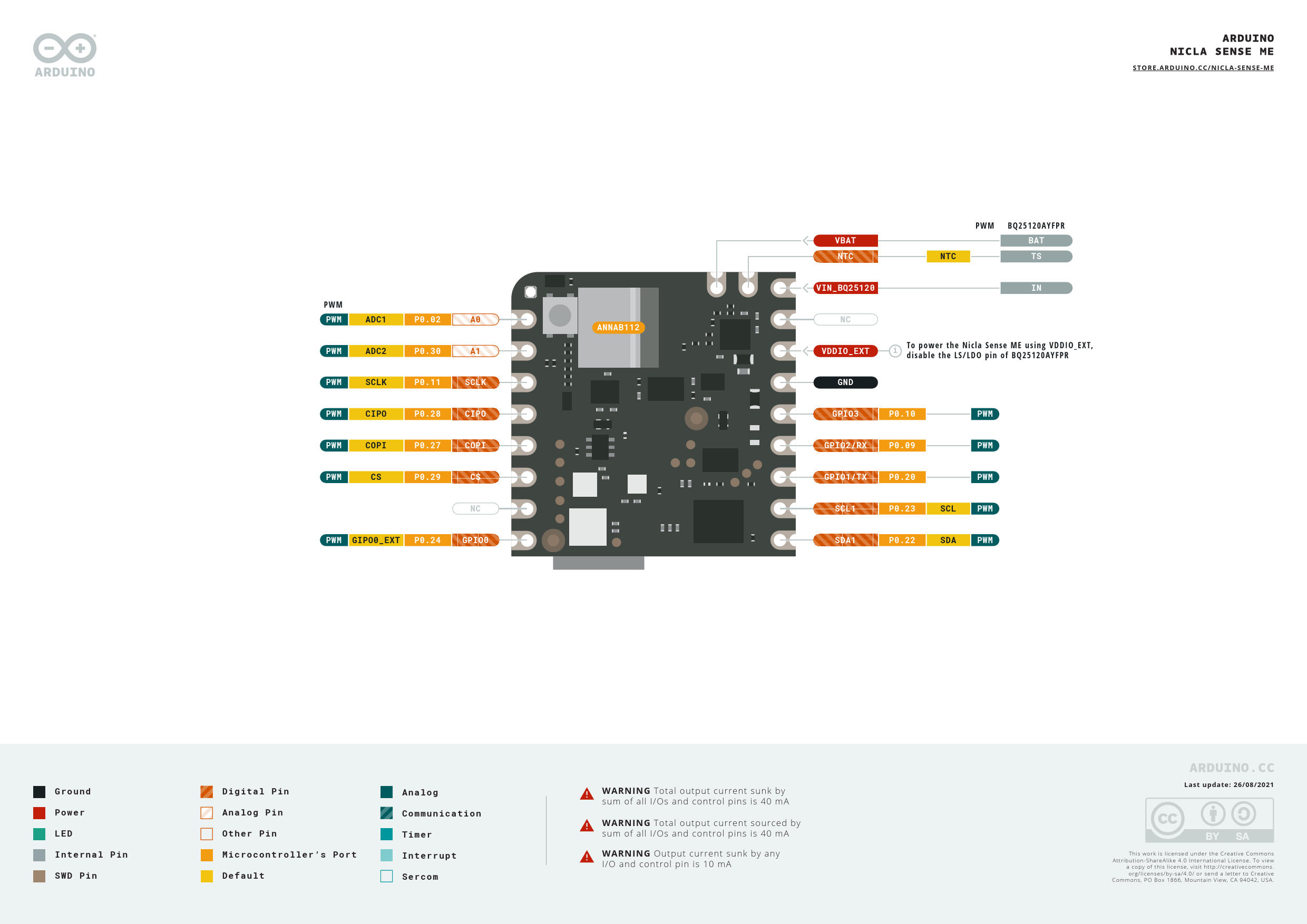

STORE.ARDUINO.CC/NICLA-SENSE-ME PWM BQ25120AYFPR VBAT BAT NTC NTC TS VIN_BQ25120 IN PWM PWM ADC1 P0.02 A0 NC ANNAB112 To power the Nicla Sense ME using VDDIO_EXT, PWM ADC2 P0.30 A1 VDDIO_EXT i disable the LS/LDO pin of BQ25120AYFPR PWM SCLK P0.11 SCLK GND PWM CIPO P0.28 CIPO GPIO3 P0.10 PWM PWM COPI P0.27 COPI GPIO2/RX P0.09 PWM PWM CS P0.29 CS GPIO1/TX P0.20 PWM NC SCL1 P0.23 SCL PWM PWM GIPO0_EXT P0.24 GPIO0 SDA1 P0.22 SDA PWM Last update: 26/08/2021 Ground Digital Pin Analog WARNING
Total output current sunk by sum of all I/Os and control pins is 40 mA
Power Analog Pin Communication WARNING
Total output current sourced by
LED Other Pin Timer
sum of all I/Os and control pins is 40 mA
Interrupt WARNING
Output current sunk by any This work is licensed under the Creative Commons
Internal Pin Microcontroller’s Port
Attribution-ShareAlike 4.0 International License. To view I/O and control pin is 10 mA a copy of this license, visit http://creativecommons. org/licenses/by-sa/4.0/ or send a letter to Creative
SWD Pin Default Sercom
Commons, PO Box 1866, Mountain View, CA 94042, USA.
